Toyota COROLLA 2 — ACCELERATOR LINK

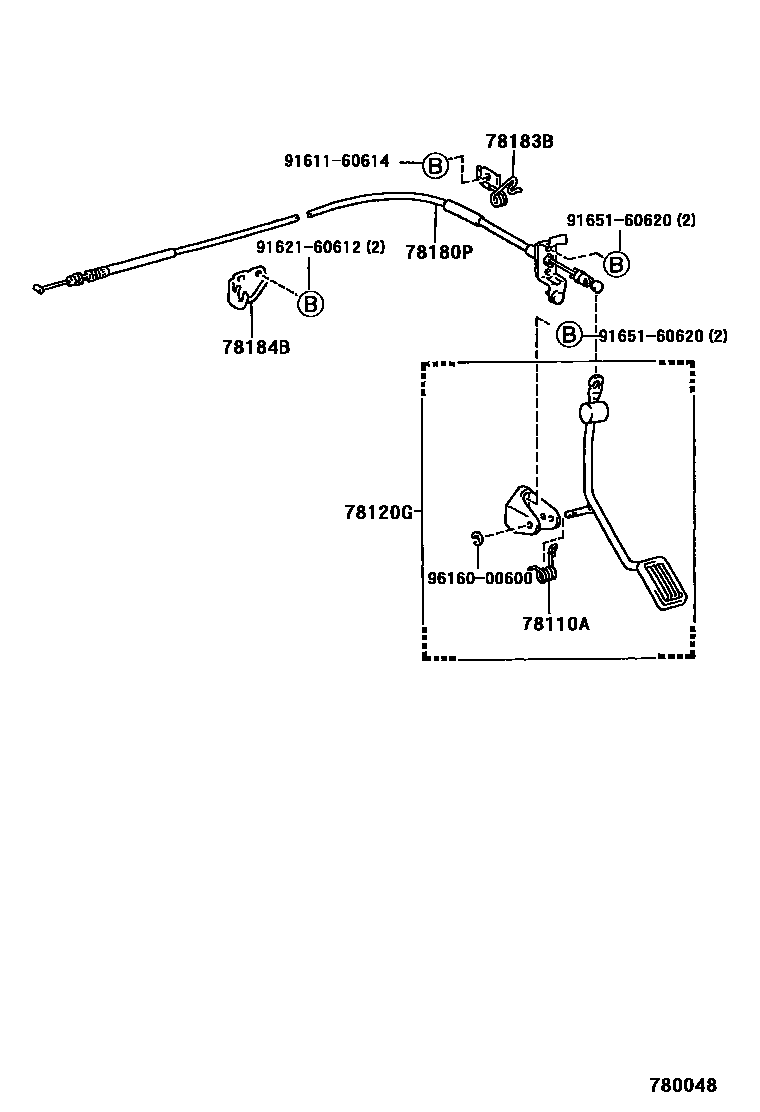

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-20114i199409

main90959-03007i199409

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16120i199409

main78120-16130i199409

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-16370i199409

main78180-16390i199409

main78180-16420i199409-199712

main78180-16540i199608-199712

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10060i199409-199506

main78183-10061i199506

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-10010i199409

main78184-16070i199409-199712

9161160614

main91611-60614

9162160612

main91621-60612

9165160620

main91651-60620

9616000600

main96160-00600

9 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota COROLLA 2

This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA 2. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE.
