Toyota COROLLA 2 — ABS & VSC

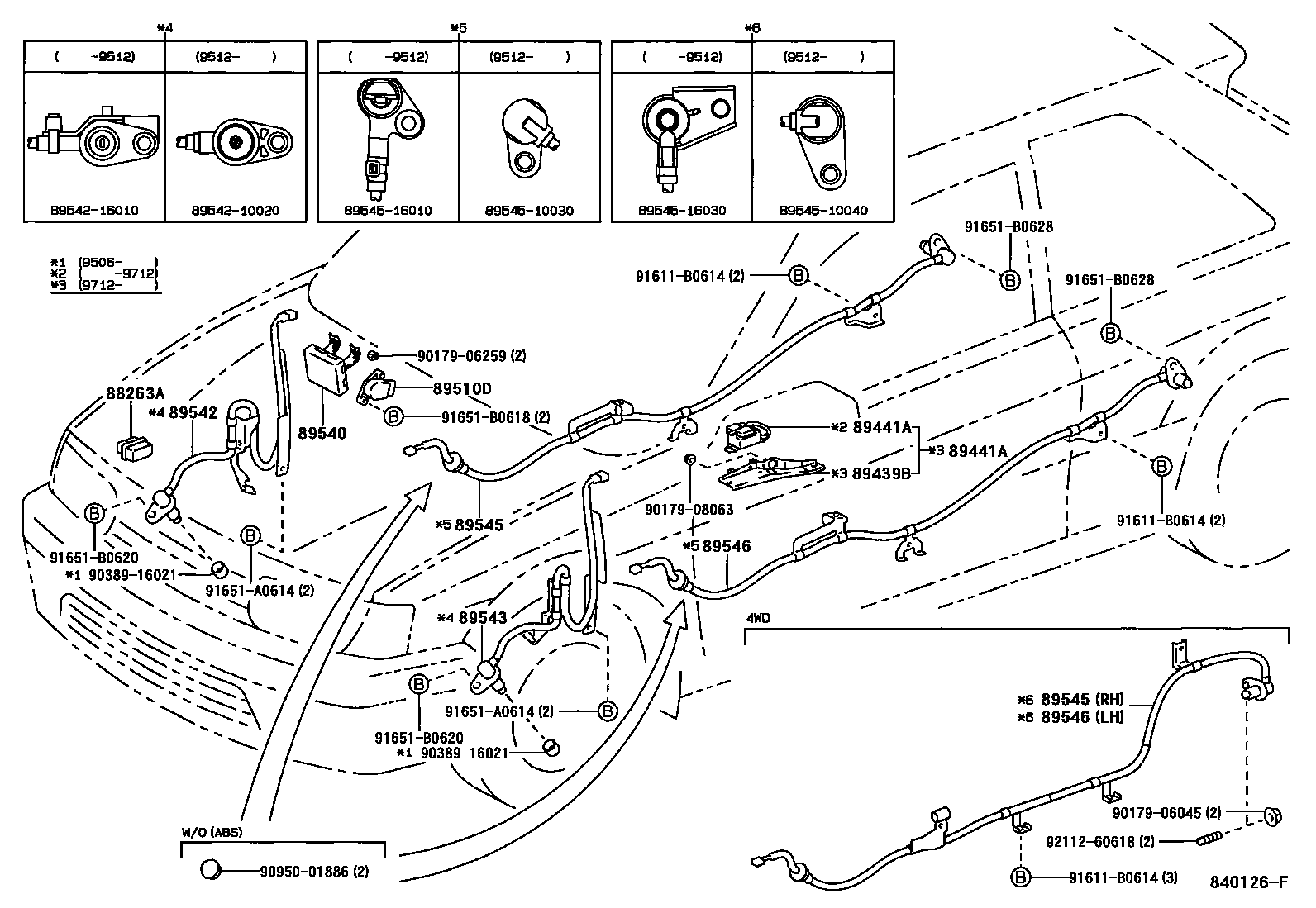

Parts diagram

88263ARELAY, SKID CONTROL

main88263-16010i199409

89439BBRACKET, SENSOR

main89439-16030i199409

89441ASENSOR, DECELERATION

main89440-16030i199712-199802

main89441-28020i199802

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-46010i199712

89540COMPUTER ASSY, SKID CONTROL

main89540-10080i199512-199701

main89540-10081i199701-199712

main89540-16060i199409-199701

main89540-16061i199701-199712

main89540-16080i199409-199512

main89540-16110i199712

main89540-16150i199712

89542SENSOR, SPEED, FRONT RH

main89542-10020i199512

main89542-16010i199409-199512

89543SENSOR, SPEED, FRONT LH

main89543-10020i199512

main89543-16010i199409-199512

89545SENSOR, SPEED, REAR RH

main89545-10030i199512

main89545-10040i199512

main89545-16010i199409-199512

main89545-16020i199409-199512

main89545-16030i199409-199512

main89545-16050i199512

89546SENSOR, SPEED, REAR LH

main89546-10030i199512

main89546-10040i199512

main89546-16010i199409-199512

main89546-16020i199409-199512

main89546-16030i199409-199512

main89546-16050i199512

9017906045

main90179-06045

9017906259

main90179-06259

9017908063

main90179-08063

9038916021

main90389-16021

9095001886

main90950-01886

91611B0614

main91611-B0614

91651A0614

main91651-A0614

91651B0618

main91651-B0618

91651B0620

main91651-B0620

91651B0628

main91651-B0628

9211260618

main92112-60618

20 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA 2

This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA 2. Key components include: RELAY, SKID CONTROL, BRACKET, SENSOR, SENSOR, DECELERATION, SENSOR ASSY, BRAKE PEDAL STROKE, COMPUTER ASSY, SKID CONTROL.
