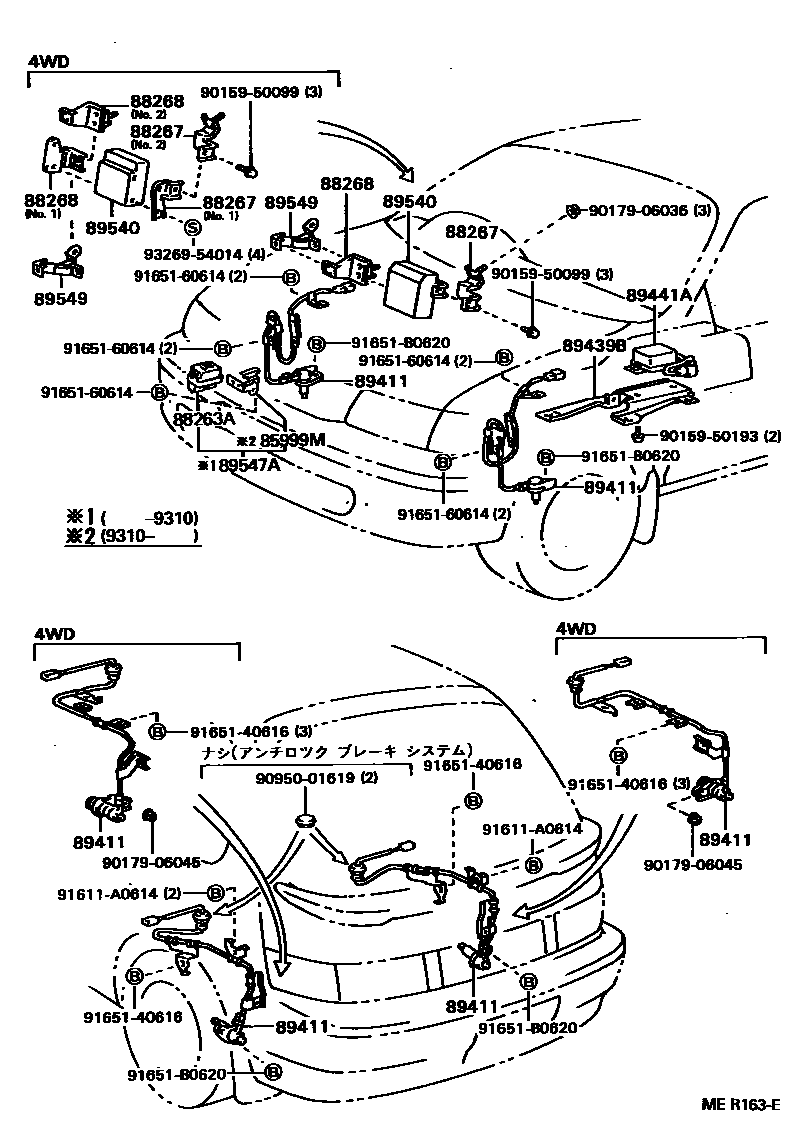

Toyota COROLLA 2 — ABS & VSC

85999MBRACKET, RELAY

main85999-16090iEL41,43,NL40199310-199409

main85999-16100iEL45199310-199409

88263ARELAY, SKID CONTROL

main88263-12090iEL4#,NL40199009-199310

main88263-16010iEL4#,NL40199310-199409

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-16010iEL45199009-199409

main88267-16020iEL45199009-199409

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-16010iEL45199009-199409

main88268-16020iEL45199009-199409

89411SENSOR, SPEED

main89542-16010iEL4#,NL40199009-199409

FR AXLE,RH

main89543-16010iEL4#,NL40199009-199409

FR AXLE,LH

main89545-16010iEL43199009-199409

REAR AXLE,RH

main89545-16020iEL41,NL40199009-199409

REAR AXLE,RH

main89545-16030iEL45199009-199409

REAR AXLE,RH

sub89545-10040

main89546-16010iEL43199009-199409

REAR AXLE,LH

main89546-16020iEL41,NL40199009-199409

REAR AXLE,LH

main89546-16030iEL45199009-199409

REAR AXLE,LH

sub89546-10040

89439BBRACKET, SENSOR

main89439-16010iEL45199009-199409

89441ASENSOR, DECELERATION

main89441-16010iEL45199312-199409

main89441-20030iEL45199009-199312

89540COMPUTER ASSY, SKID CONTROL

main89541-16010iEL45199009-199409

main89541-16020iEL41,43,NL40199009-199109

main89541-16030iEL41,43,NL40199109-199208

main89541-16050iEL41,43,NL40199208-199409

89547ARELAY, SKID CONTROL W/BRACKET

main89547-10010iEL4#,NL40199009-199310

89549BRACKET, SKID CONTROL COMPUTER

main89549-16010iEL4#,NL40199009-199409

9015950099

main90159-50099

9015950193

main90159-50193

9017906036

main90179-06036

9017906045

main90179-06045

9095001619

main90950-01619

91611A0614

main91611-A0614

9165140616

main91651-40616

9165160614

main91651-60614

91651B0620

main91651-B0620

9326954014

main93269-54014

20 parts on this diagram · 1 diagram in section
