Toyota COPEN — WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-B9459i201910

16100HRING, O(FOR WATER PUMP)

main90043-01323i201910

16173PULLEY, WATER PUMP

main16173-B2014i201910

9004105438

main90041-05438

9004105440

main90041-05440

9167180610

main91671-80610

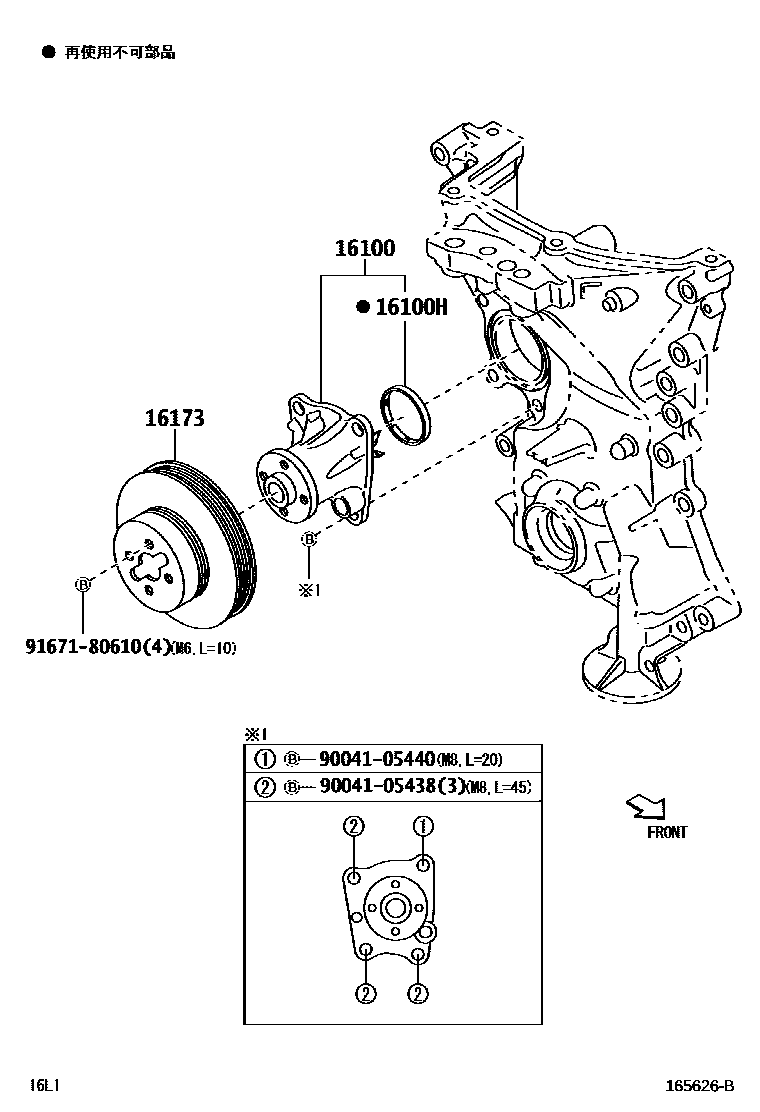

6 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota COPEN

This section contains 6 genuine Toyota parts for the WATER PUMP system of the Toyota COPEN. Key components include: PUMP ASSY, ENGINE WATER, RING, O(FOR WATER PUMP), PULLEY, WATER PUMP.
