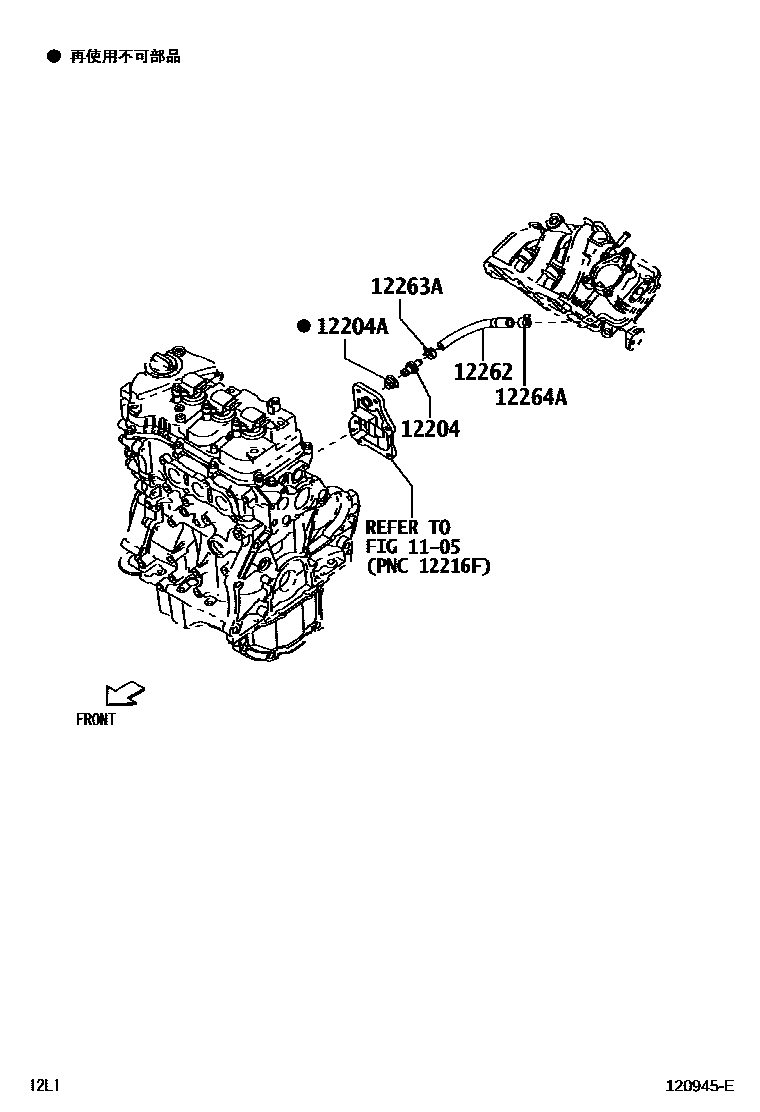

Toyota COPEN — VENTILATION HOSE

1105CYLINDER BLOCK

→ Go to FIG 11-05

12204VALVE SUB-ASSY, VENTILATION

main12204-B2010i201910

12204AGROMMET(FOR VENTILATION SYSTEM)

main90044-80652i201910

12262HOSE, VENTILATION, NO.2

main12261-B2160i201910

12263ACLIP(FOR VENTILATION HOSE)

main90044-67314i201910

12264ACLIP(FOR VENTILATION HOSE)

main96137-41901i201910

6 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota COPEN

This section contains 6 genuine Toyota parts for the VENTILATION HOSE system of the Toyota COPEN. Key components include: CYLINDER BLOCK, VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE, VENTILATION, NO.2, CLIP(FOR VENTILATION HOSE).
