Toyota COPEN — SWITCH & RELAY & COMPUTER

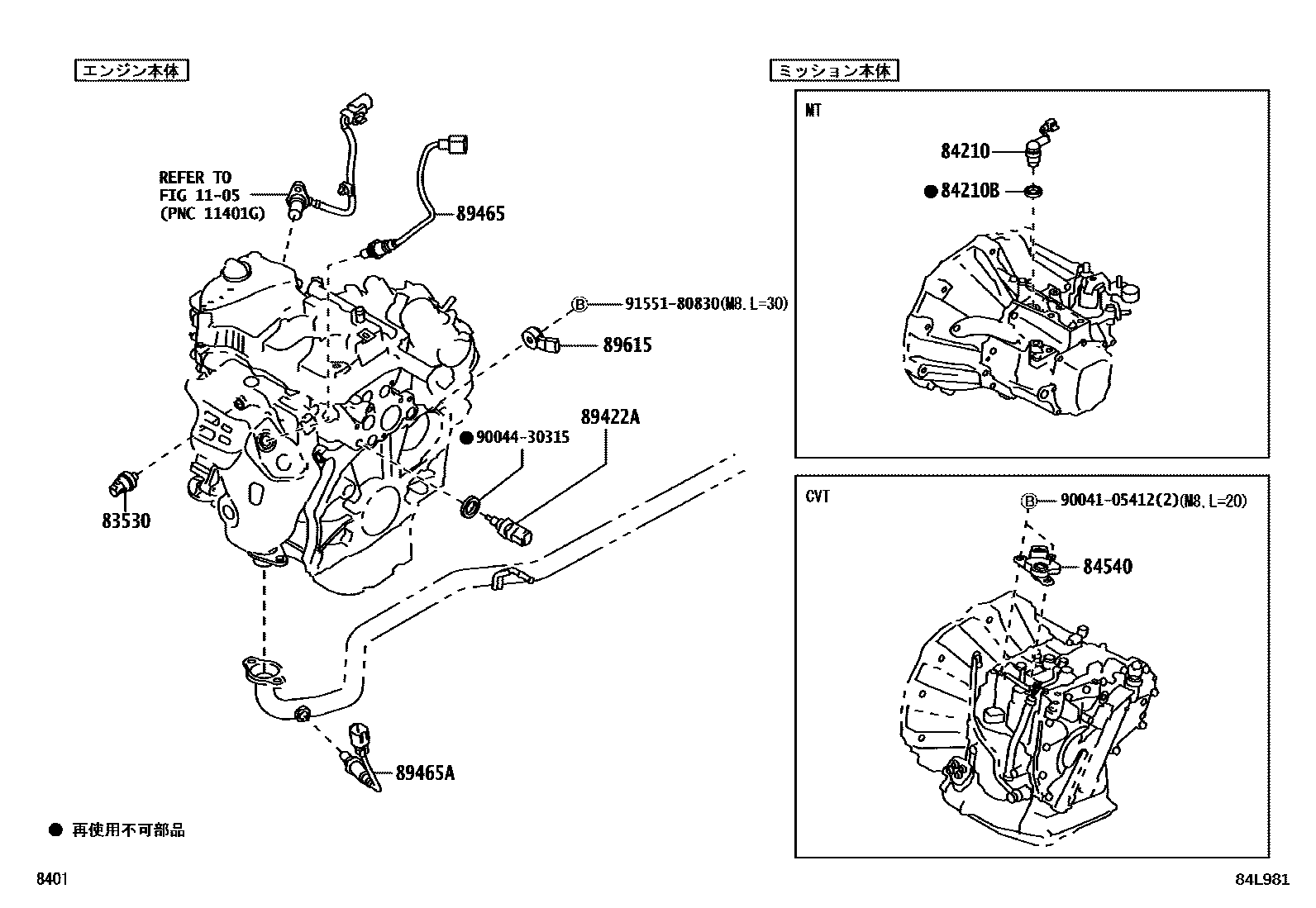

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-B2010i201910

84210SWITCH ASSY, BACK-UP LAMP

main84210-B2020i201910

84210BGASKET, BACK-UP LAMP SWITCH

main90044-30178i201910

84540SWITCH ASSY, NEUTRAL START

main84540-B2050i201910

89422ASENSOR, WATER TEMPERATURE

main89422-33030i201910

89465SENSOR, OXYGEN

main89465-B2130i201910

89465ASENSOR, OXYGEN NO.2

main89465-B2140i201910

89615SENSOR, KNOCK CONTROL

main89615-20090i201910

9004105412

main90041-05412

9004430315

main90044-30315

9155180830

main91551-80830

12 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COPEN

This section contains 91 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COPEN. Key components include: CYLINDER BLOCK, RELAY ASSY, STARTER, NO.1, RELAY, IGNITION, NO.1, SENSOR ASSY, BATTERY CURRENT, STEERING WHEEL.
