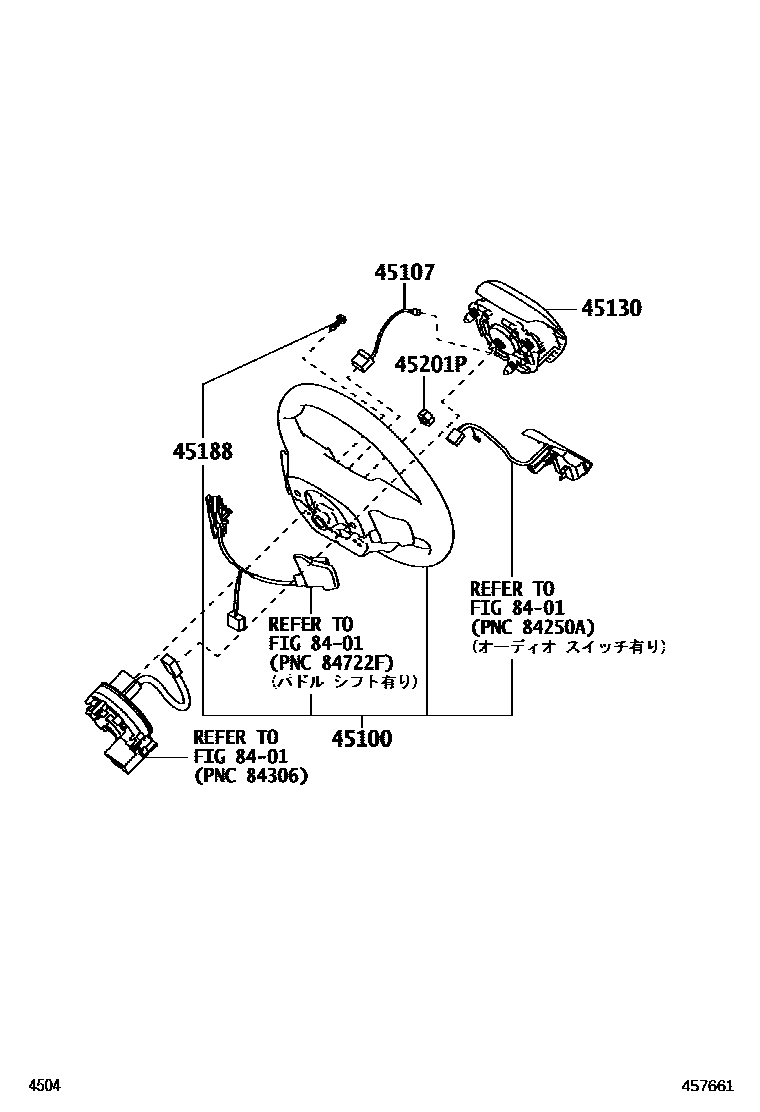

Toyota COPEN — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45102-B2D30-C0supersedes 45102-B2D10-C0i201910-202412

main45102-B2D40-C0supersedes 45102-B2D20-C0i201910-202412

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2050i201910-202412

45130BUTTON ASSY, HORN

main45130-B2520-C0i201910

45188SCREW, STEERING WHEEL PAD ATTACHING

main90168-40113×2i201910

45201PNUT, STEERING WHEEL SET

main90041-70014i201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota COPEN

This section contains 6 genuine Toyota parts for the STEERING WHEEL system of the Toyota COPEN. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET.
