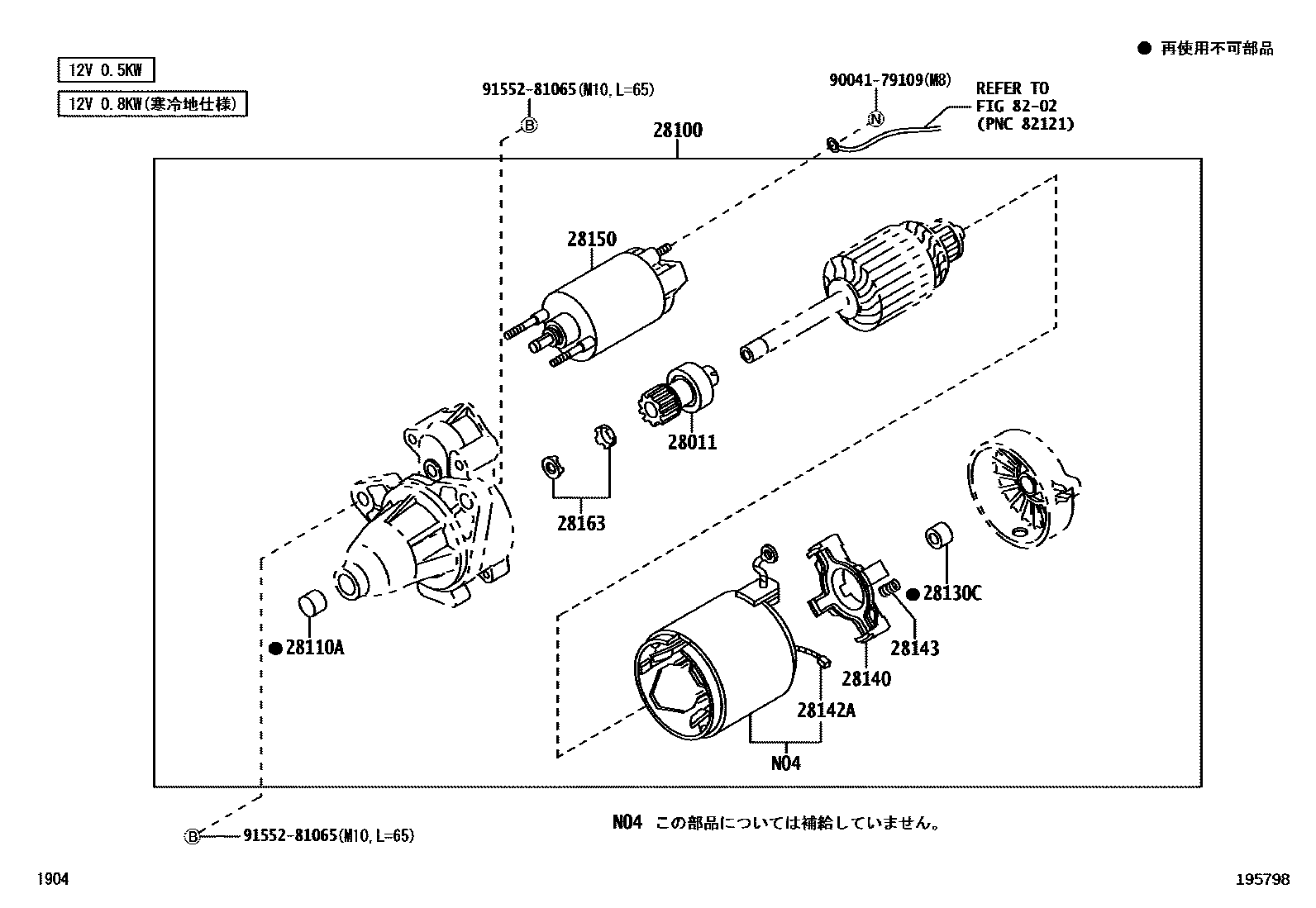

Toyota COPEN — STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-B1010iKFVET..LA400..5FC201910-202410

main28011-B2050iKFVET..LA400..CVT201910

28100STARTER ASSY

main28100-B2280iKFVET..LA400..CVT201910-202007

main28100-B2281iKFVET..LA400..CVT202008

main28100-B2170supersedes 28100-B2031iKFVET..LA400..5FC201910-202409

main28100-B2171supersedes 28100-B2031iKFVET..LA400..5FC202410

28110ABEARING(FOR STARTER HOUSING)

main28277-87201supersedes 28271-87501iKFVET..LA400..CVT201910

main9004C-03001iKFVET..LA400..CVT201910-202008

28130CBEARING, STARTER FLANGE

main90099-10183iKFVET..LA400..CVT201910

main28277-87201supersedes 28271-87502iKFVET..LA400..5FC201910-202410

28140HOLDER ASSY, STARTER BRUSH

main28140-B2130iKFVET..LA400..CVT201910

main28149-87501iKFVET..LA400..5FC201910-202410

28142ASTARTER KIT

main28142-87504×4iKFVET..LA400..5FC201910-202410

main28142-97501×2iKFVET..LA400..CVT201910

28143SPRING, STARTER BRUSH

main28143-10020×4iKFVET..LA400..5FC201910-202410

main28143-87202×4iKFVET..LA400..CVT201910

28150SWITCH ASSY, MAGNET STARTER

main28150-87536iKFVET..LA400..5FC201910-202410

28163NUT OR COLLAR, PINION STOP, STARTER

main28142-87505iKFVET..LA400..5FC201910-202410

8202

9004179109

main90041-79109

9155281065

main91552-81065

12 parts on this diagram · 2 diagrams in section
