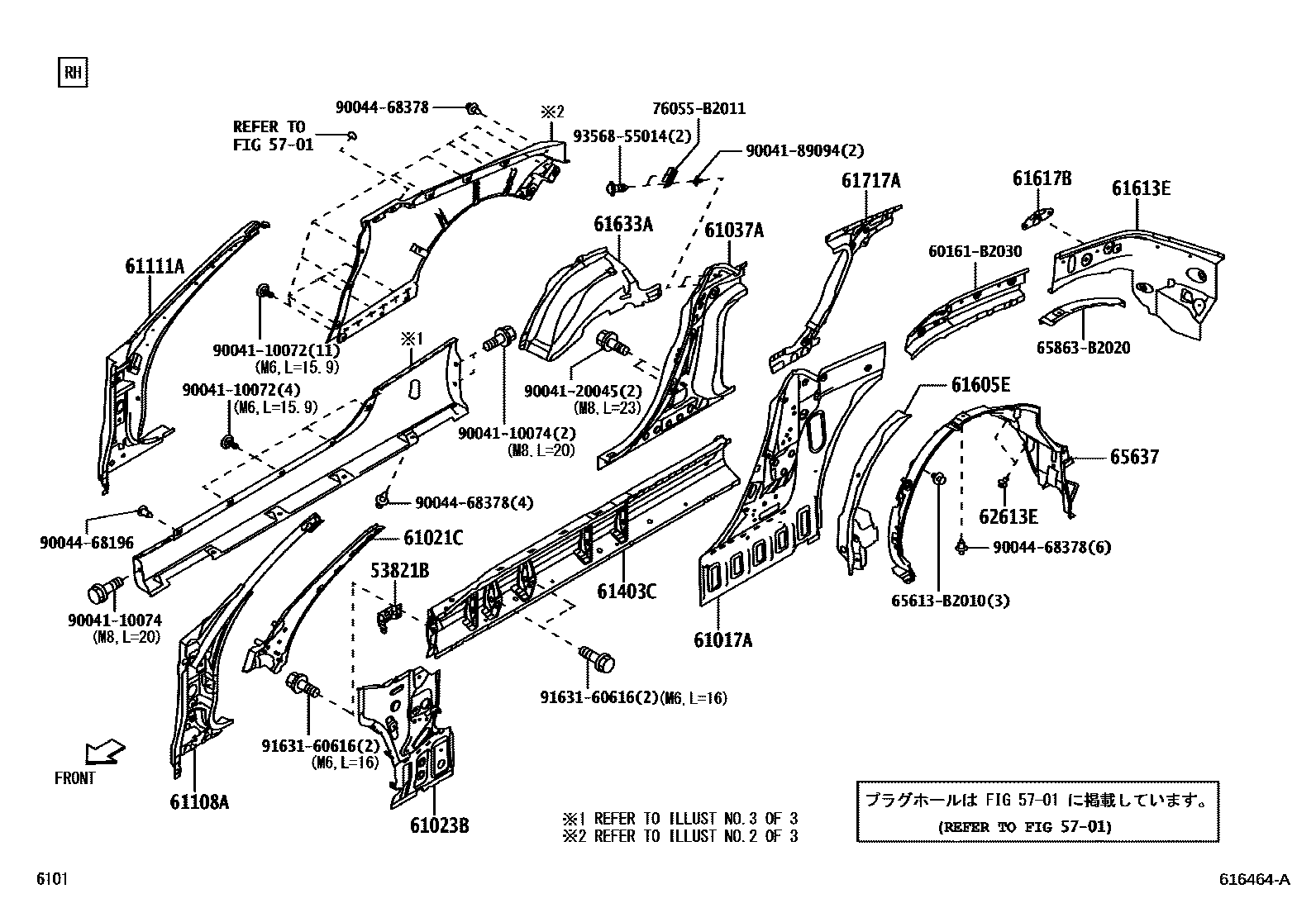

Toyota COPEN — SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701HOLE PLUG
61017AMEMBER SUB-ASSY, SIDE, REAR RH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61111APANEL, FRONT SIDE, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61605EPANEL, QUARTER, RH
61613EPANEL, QUARTER, INNER RH
61617BPANEL, QUARTER INNER, LOWER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)
65637LINER, REAR WHEEL HOUSE, RH
60161B2030
main60161-B2030
65613B2010STRIP, SIDE GATE HINGE, INSIDE
main65613-B2010
65863B2020PANEL, REAR BODY SIDE, UPPER RH
main65863-B2020
76055B2011MOULDING SUB-ASSY, CENTER PILLAR, RH
main76055-B2011
9004110072
main90041-10072
9004110074
main90041-10074
9004120045
main90041-20045
9004189094
main90041-89094
9004468196
main90044-68196
9004468378
main90044-68378
9163160616
main91631-60616
9356855014
main93568-55014
28 parts on this diagram · 4 diagrams in section
SIDE MEMBER for Toyota COPEN
This section contains 62 genuine Toyota parts for the SIDE MEMBER system of the Toyota COPEN. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, HOLE PLUG, PROTECTOR, QUARTER PANEL, REAR, MEMBER SUB-ASSY, SIDE, REAR RH.
