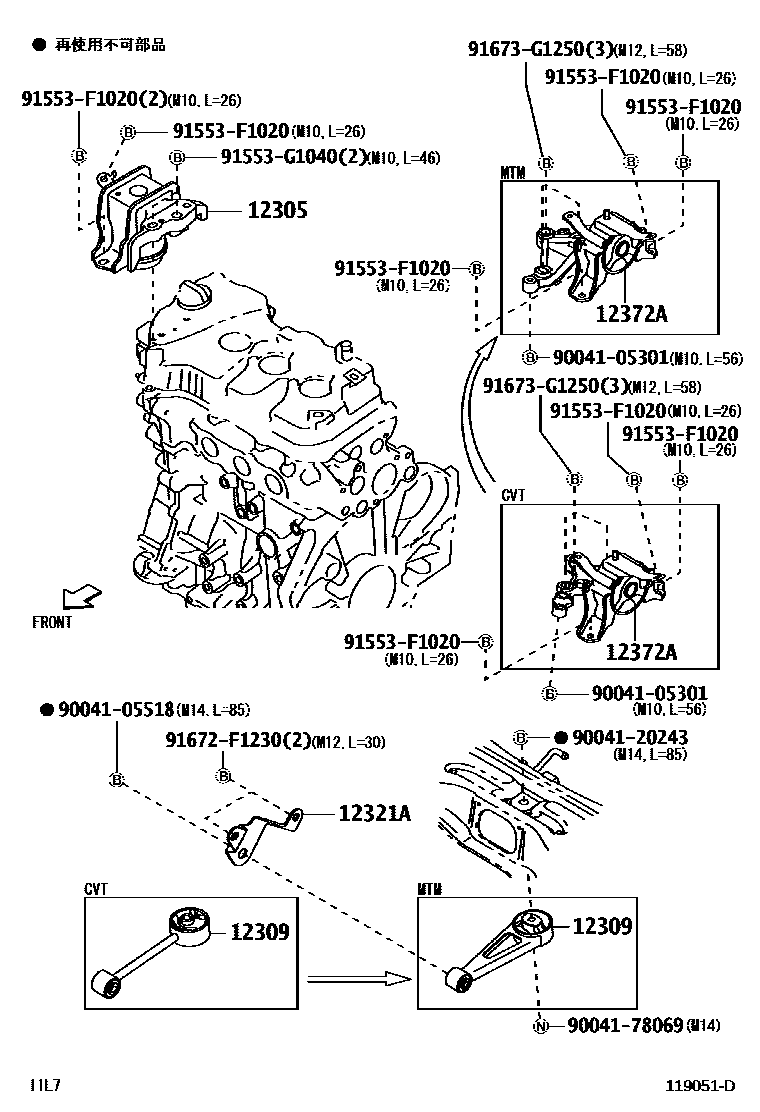

Toyota COPEN — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B2251iKFVET..LA400..CVT201910

main12305-B2381iKFVET..LA400..5FC201910

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B2090iKFVET..LA400..5FC201910

main12309-B2100iKFVET..LA400..CVT201910

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-B2100iKFVET..LA400201910

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-B2070iKFVET..LA400..CVT201910

main12306-B2100iKFVET..LA400..5FC201910

9004105301

main90041-05301

9004105518

main90041-05518

9004120243

main90041-20243

9004178069

main90041-78069

91553F1020

main91553-F1020

91553G1040

main91553-G1040

91672F1230

main91672-F1230

91673G1250

main91673-G1250

12 parts on this diagram · 1 diagram in section
