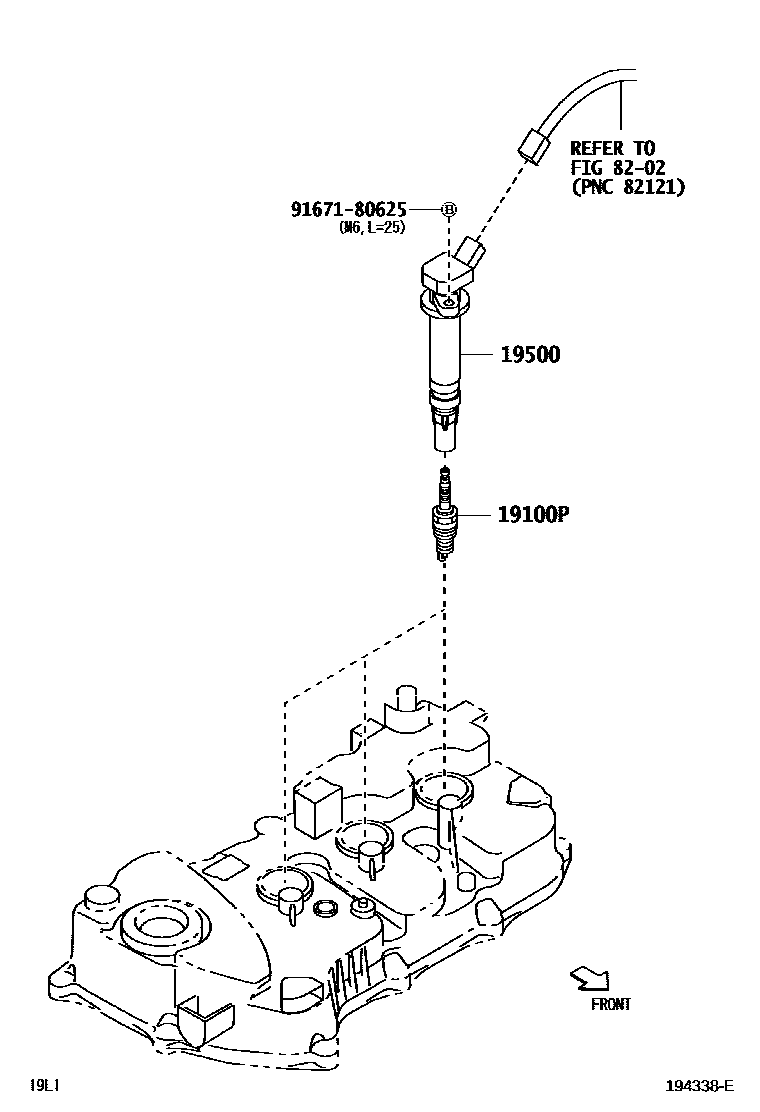

Toyota COPEN — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51213×3i201910

main90048-51214×3i201910

19500COIL ASSY, IGNITION

main19500-B2051×3i201910

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180625

main91671-80625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COPEN

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COPEN. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
