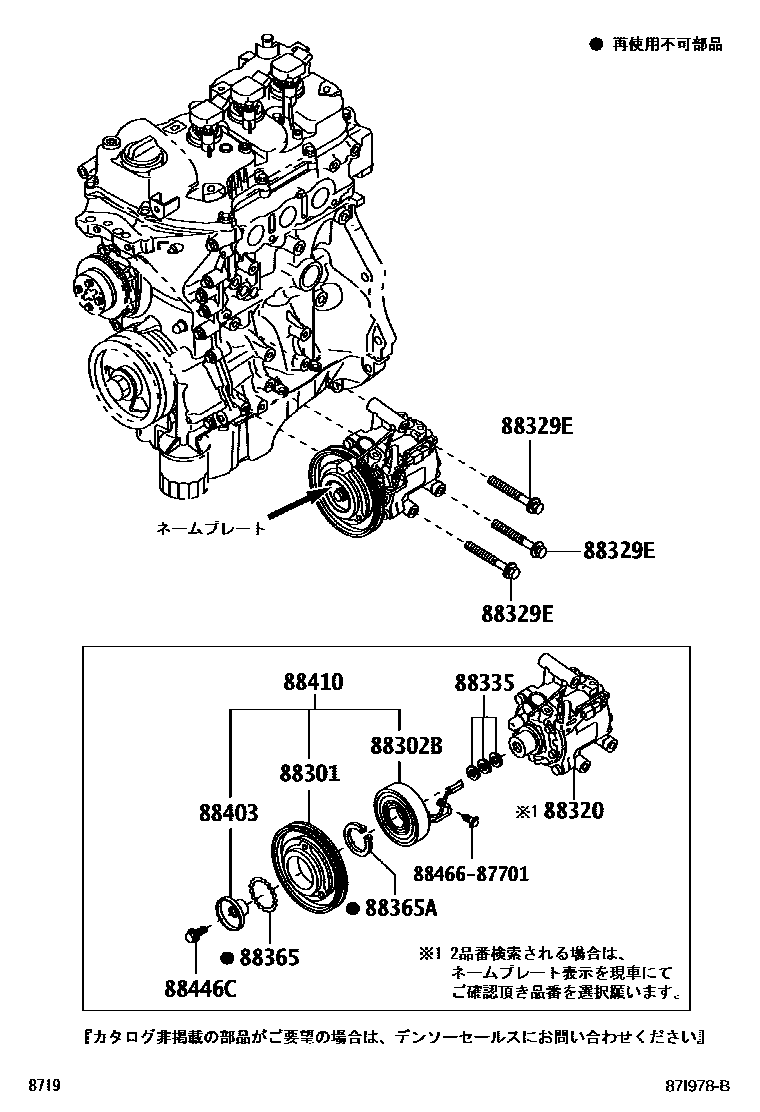

Toyota COPEN — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B2020i201910

88302BSTATOR, MAGNET CLUTCH

main88411-87264i201910

88320COMPRESSOR ASSY, COOLER

main88320-B2110i201910-202209

main88320-B2200i202209

88329EBOLT, COMPRESSOR, NO.1

main88899-12400×3i201910

88335GASKET KIT, OVERHAUL

main88335-14020i201910

88365RING, SNAP

main90099-07125i201910

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201i201910

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201i201910

88410CLUTCH ASSY, MAGNET

main88410-B2050i201910

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349i201910

8846687701

main88466-87701

11 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COPEN

This section contains 11 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COPEN. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, BOLT, COMPRESSOR, NO.1, GASKET KIT, OVERHAUL.
