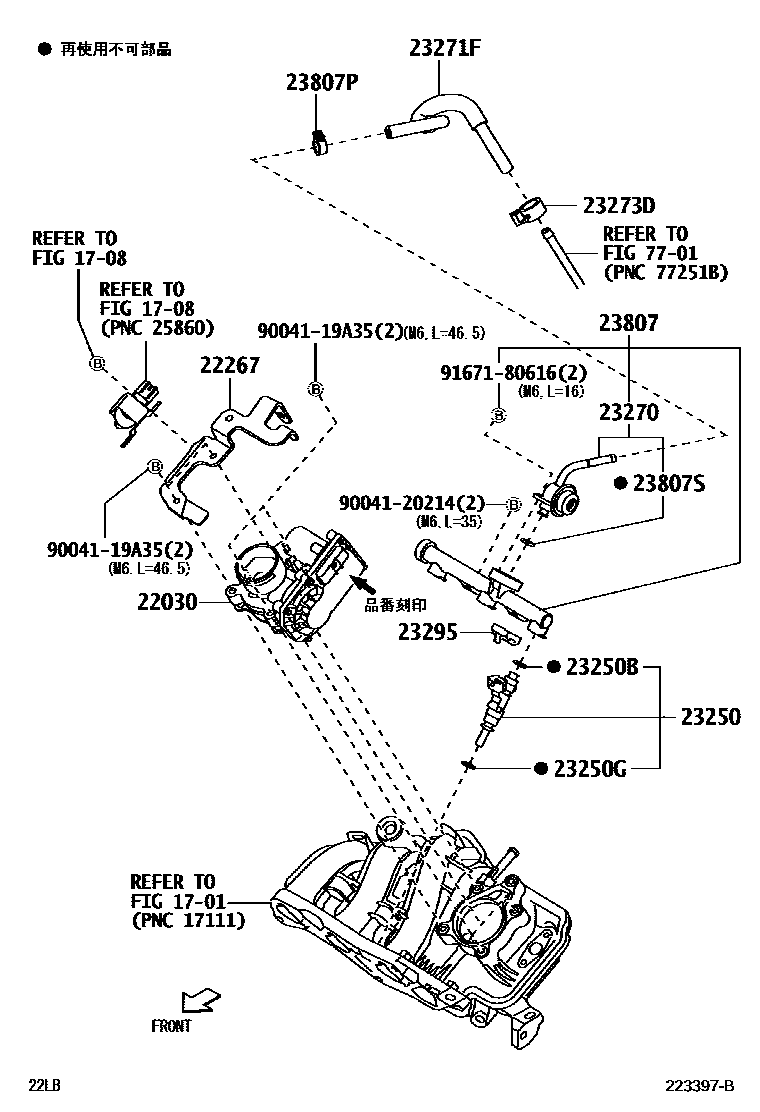

Toyota COPEN — FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B2020iKFVET..LA400201910

main22030-B2040iKFVET..LA400201910

22267BRACKET, THROTTLE BODY

main58239-B2040iKFVET..LA400201910

23250INJECTOR ASSY, FUEL

main23250-B2020iKFVET..LA400201910

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349iKFVET..LA400201910

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01348iKFVET..LA400201910

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-B2020iKFVET..LA400201910

23271FHOSE, FUEL

main77260-B2040iKFVET..LA400201910

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67400iKFVET..LA400201910

23295HOLDER, INJECTOR, NO.1

main23295-B2020iKFVET..LA400201910

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B2060iKFVET..LA400201910

23807PCLIP(FOR FUEL HOSE)

main90044-67400iKFVET..LA400201910

23807SRING, O(FOR FUEL DELIVARY PIPE)

main90043-01353iKFVET..LA400201910

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9004119A35

main90041-19A35

9004120214

main90041-20214

9167180616

main91671-80616

18 parts on this diagram · 1 diagram in section
