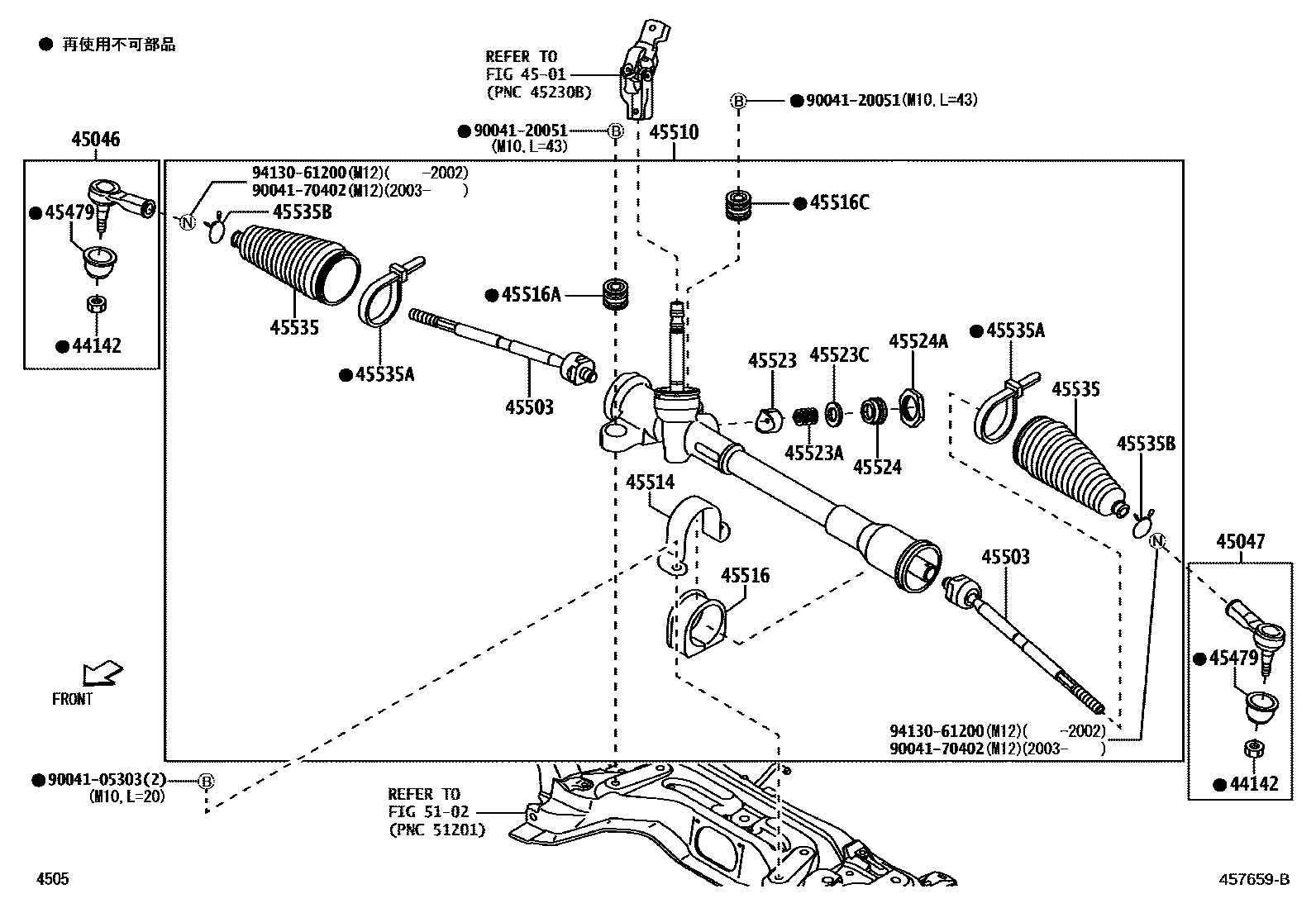

Toyota COPEN — FRONT STEERING GEAR & LINK
44142NUT, LOCK
4501STEERING COLUMN & SHAFT
45479SEAL, STEERING LINK JOINT DUST
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45516GROMMET, STEERING RACK HOUSING, NO.1
45516ABUSH, STEERING RACK HOUSING, NO.1
45516CBUSH, STEERING RACK HOUSING, NO.2
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45523CSPACER(FOR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
5102SUSPENSION CROSSMEMBER & UNDER COVER
9004105303
main90041-05303
9004120051
main90041-20051
9004170402
main90041-70402
9413061200
main94130-61200
24 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota COPEN
This section contains 24 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COPEN. Key components include: NUT, LOCK, STEERING COLUMN & SHAFT, END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, SEAL, STEERING LINK JOINT DUST.
