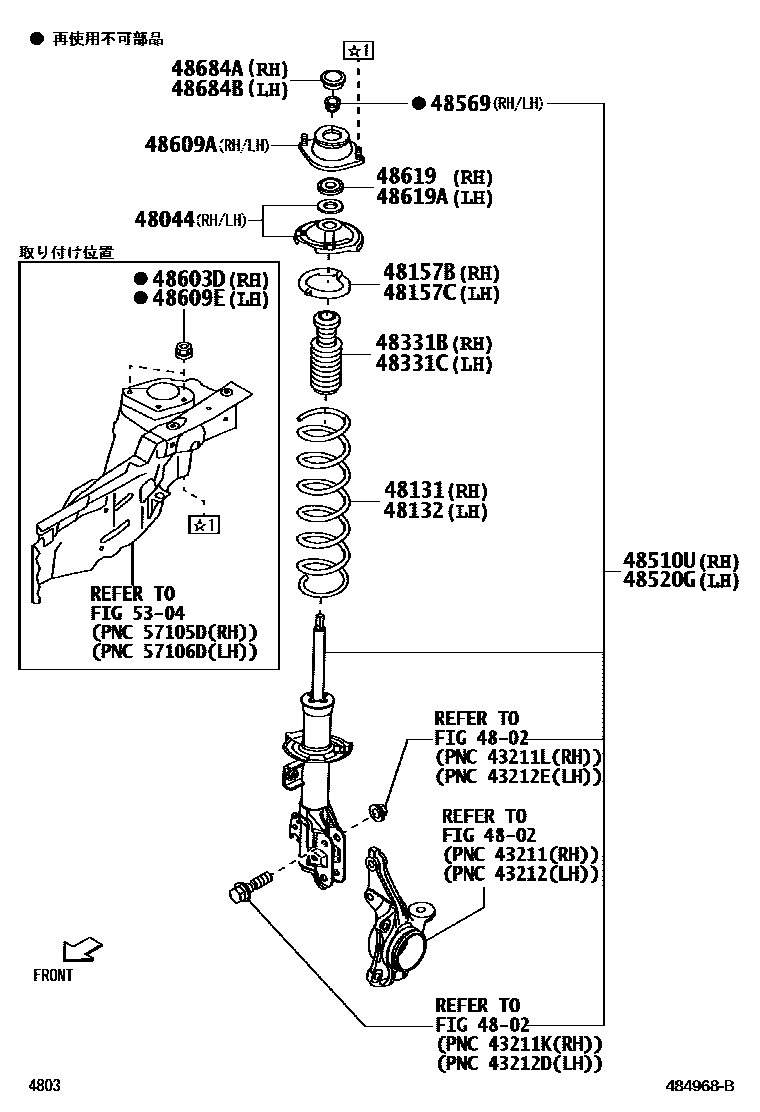

Toyota COPEN — FRONT SPRING & SHOCK ABSORBER

0001 1����������� 0002 1��������

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-B2010×2iLA400201910

48131SPRING, FRONT COIL, RH

main48131-B2F90iLA400201910

48132SPRING, FRONT COIL, LH

main48131-B2F90iLA400201910

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B2010iLA400201910

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B2010iLA400201910

48331BBUMPER, FRONT SPRING, RH

main48331-B2050iLA400201910

48331CBUMPER, FRONT SPRING, LH

main48331-B2050iLA400201910

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9340iLA400201910

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9340iLA400201910

48569NUT, SHOCK ABSORBER PISTON

main90041-77005×2iLA400201910

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-79333×2iLA400201910

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-B2041×2iLA400201910

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-79333×2iLA400201910

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iLA400201910

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iLA400201910

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-87701iLA400201910

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-87701iLA400201910

5304

19 parts on this diagram · 2 diagrams in section
