Toyota COPEN — FRONT DOOR WINDOW REGULATOR & HINGE

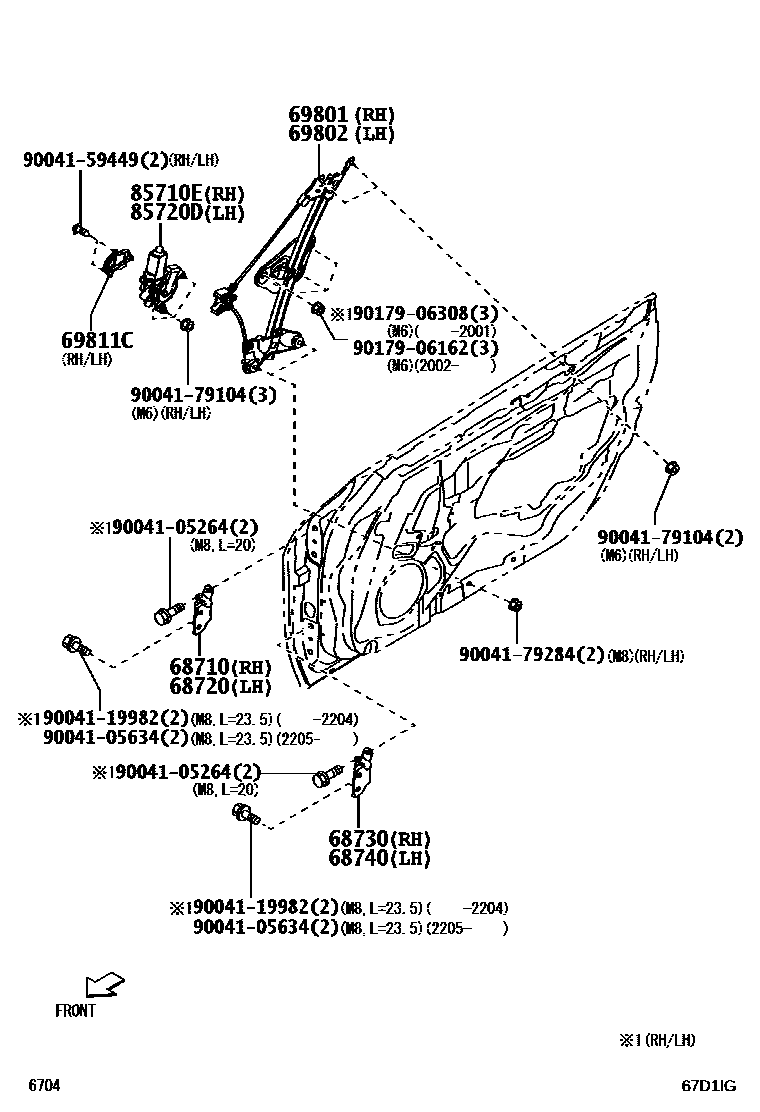

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-97210i201910

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-97208i201910

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-97208i201910

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-97210i201910

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B2220i201910

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B2220i201910

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-97204×2i201910

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-97208i201910

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-97205i201910

9004105264

main90041-05264

9004105634

main90041-05634

9004119982

main90041-19982

9004159449

main90041-59449

9004179104

main90041-79104

9004179284

main90041-79284

9017906162

main90179-06162

9017906308

main90179-06308

17 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COPEN

This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COPEN. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
