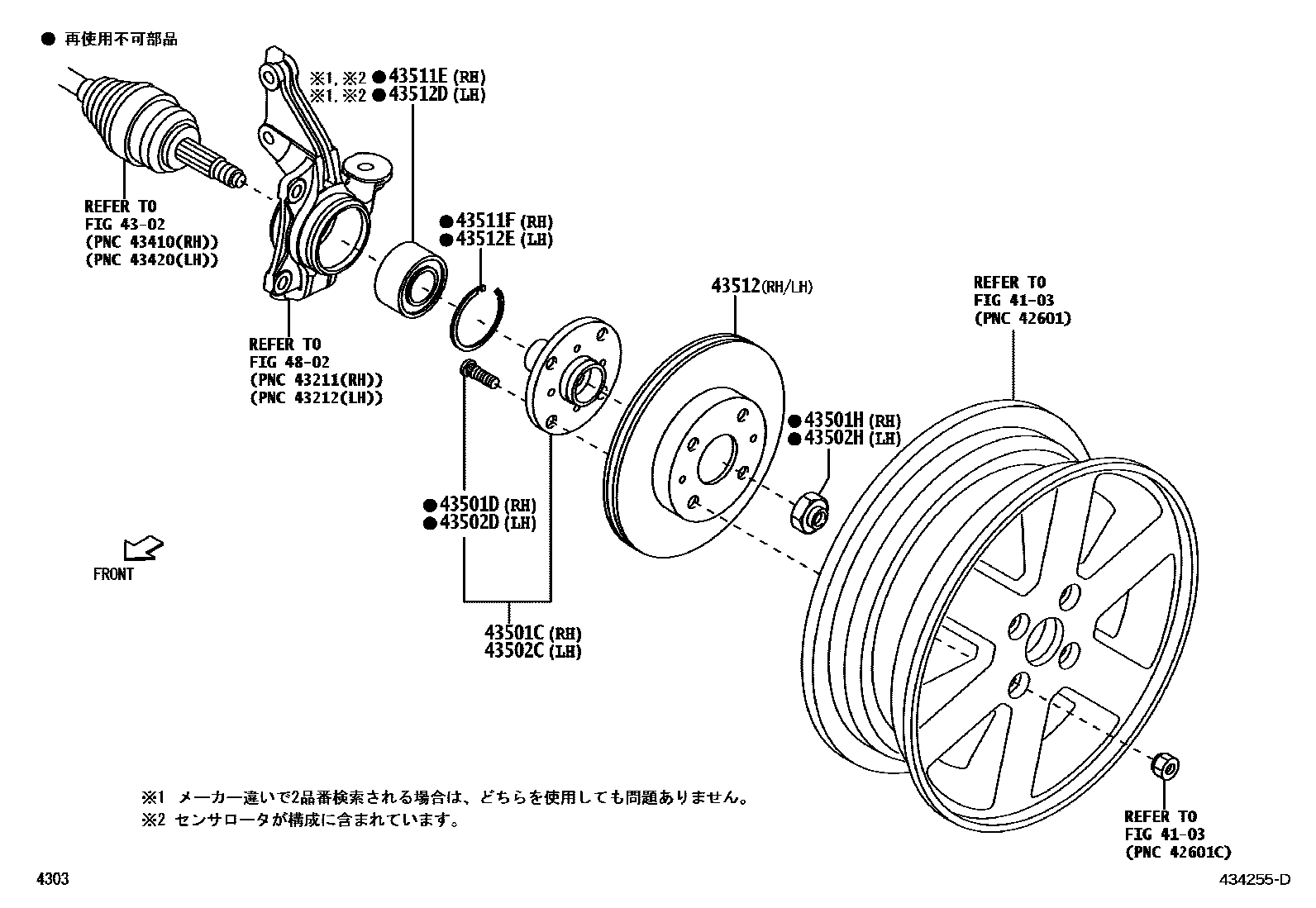

Toyota COPEN — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B5020iLA400201910

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iLA400201910

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274iLA400201910

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B5020iLA400201910

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iLA400201910

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274iLA400201910

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B2022iLA400201910

main43560-B2031iLA400201910

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163iLA400201910

43512DISC, FRONT

main43512-B1021×2iLA400201910-202408

main43512-B1022×2iLA400202409

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B2022iLA400201910

main43560-B2031iLA400201910

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163iLA400201910

4802

14 parts on this diagram · 1 diagram in section
