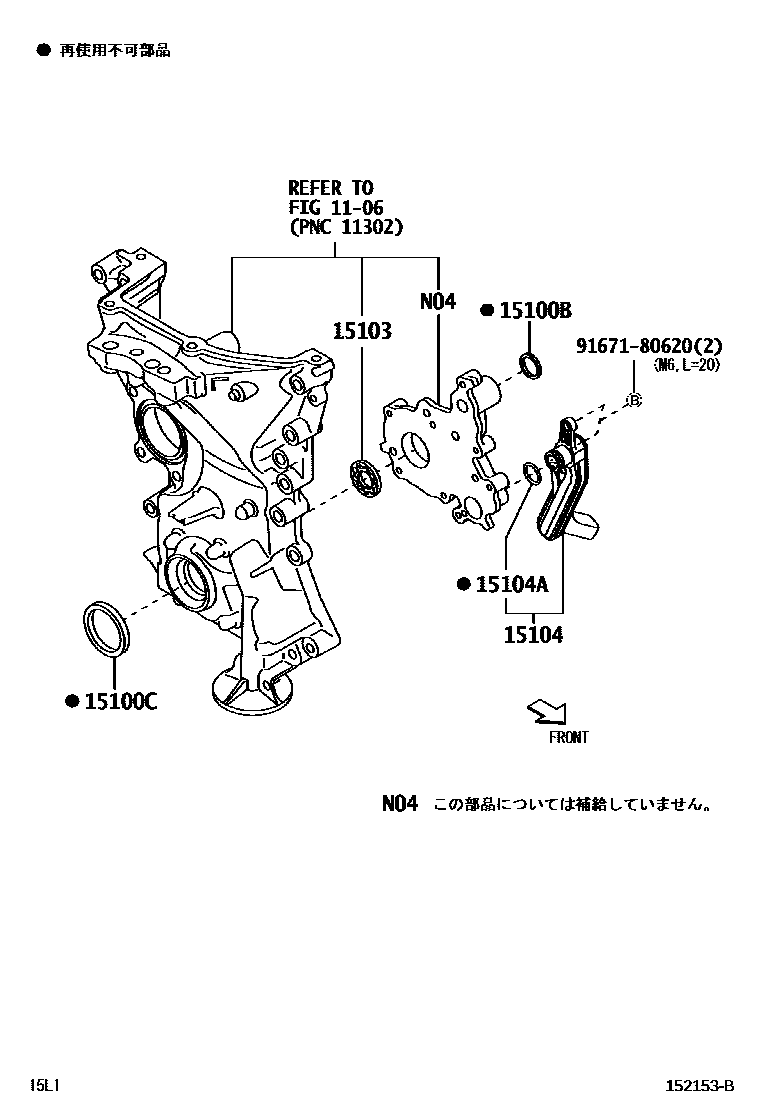

Toyota COPEN — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100BRING, O(FOR OIL PUMP)

main90043-01325i201910

15100CSEAL(FOR OIL PUMP)

main90043-11438i201910

15103GEAR SET, OIL PUMP

main15103-B2011i201910

15104STRAINER SUB-ASSY, OIL

main15104-B2011i201910

15104ARING, O(FOR OIL STRAINER)

main90043-01324i201910

9167180620

main91671-80620

7 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota COPEN

This section contains 7 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COPEN. Key components include: TIMING GEAR COVER & REAR END PLATE, RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), GEAR SET, OIL PUMP, STRAINER SUB-ASSY, OIL.
