Toyota COPEN — ELECTRONIC FUEL INJECTION SYSTEM

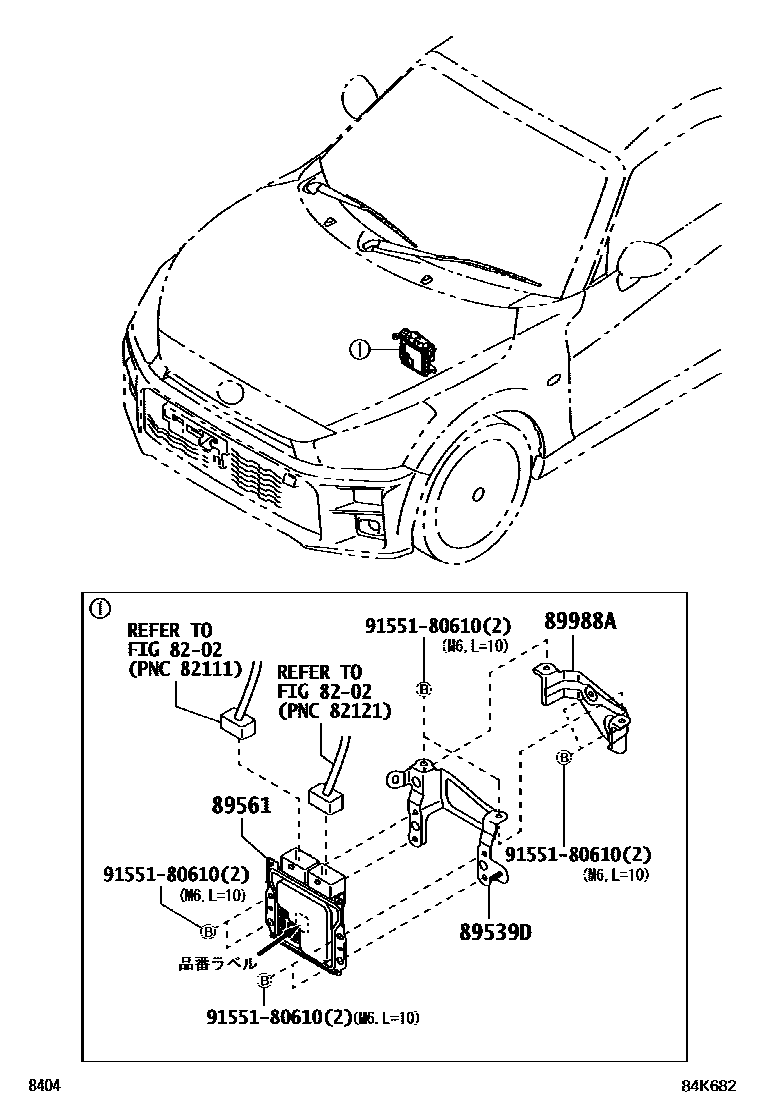

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89539DBRACKET, COMPUTER

main89539-B2750i201910

89561COMPUTER, FUEL INJECTION

main89560-BB630i201910-202105

main89560-BB631i202105-202209

main89560-BB640i201910-202209

main89560-BBJ20i202209

main89560-BBJ30i202209

89988ABRACKET, COMPUTER, NO.2

main89988-B2030i201910

9155180610

main91551-80610

5 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COPEN

This section contains 5 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COPEN. Key components include: WIRING & CLAMP, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION, BRACKET, COMPUTER, NO.2.
