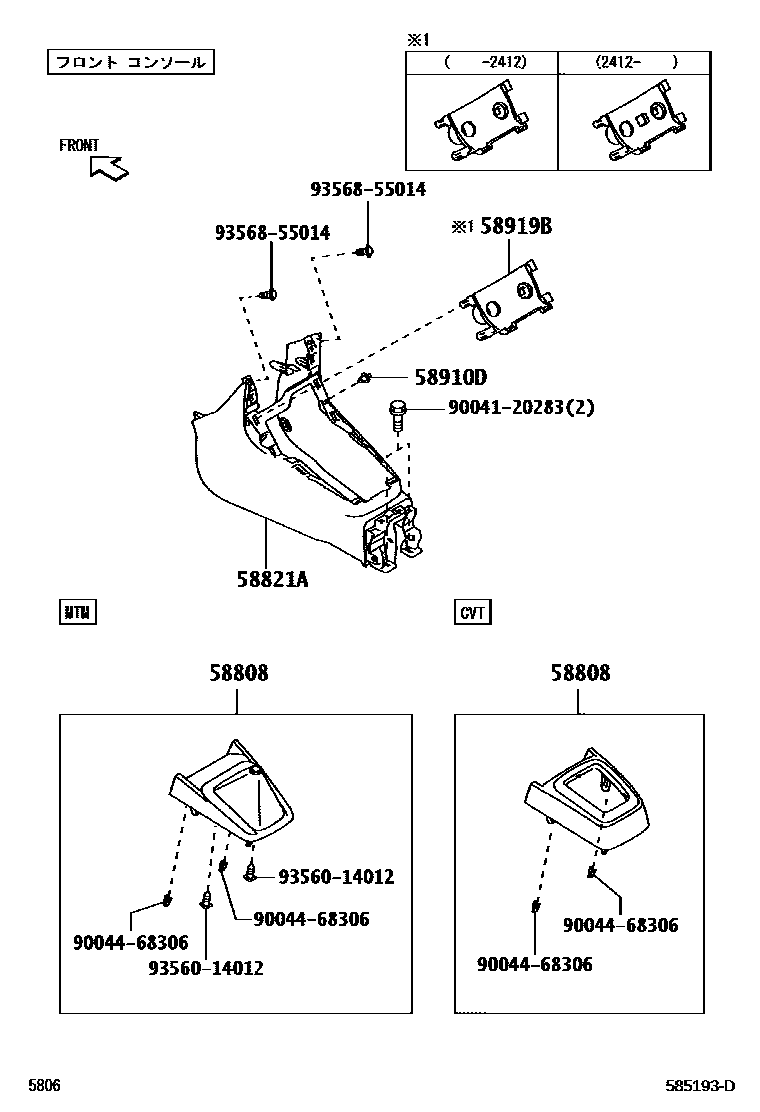

Toyota COPEN — CONSOLE BOX & BRACKET

0001 1���� ����� 0002 1�� �����

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-B2060-C0iLA400..5FC201910

PIANO BLACK,TRIM2#

main58840-B2070-C0iLA400..CVT201910

PIANO BLACK,TRIM2#

58821APANEL, CONSOLE

main58821-B2161-B0iLA400201910

DK.GRAY,TRIM2#

58910DCLIP(FOR CONSOLE BOX)

main90044-67579-C2iLA400201910

BLACK,TRIM2#

58919BPLATE, CONSOLE BOX

main58811-B2050-B0iLA400201910-202412

DK.GRAY,TRIM2#

main58811-B2070-B0iLA400202412

DK.GRAY,TRIM2#

9004120283

main90041-20283

9004468306

main90044-68306

9356014012

main93560-14012

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
