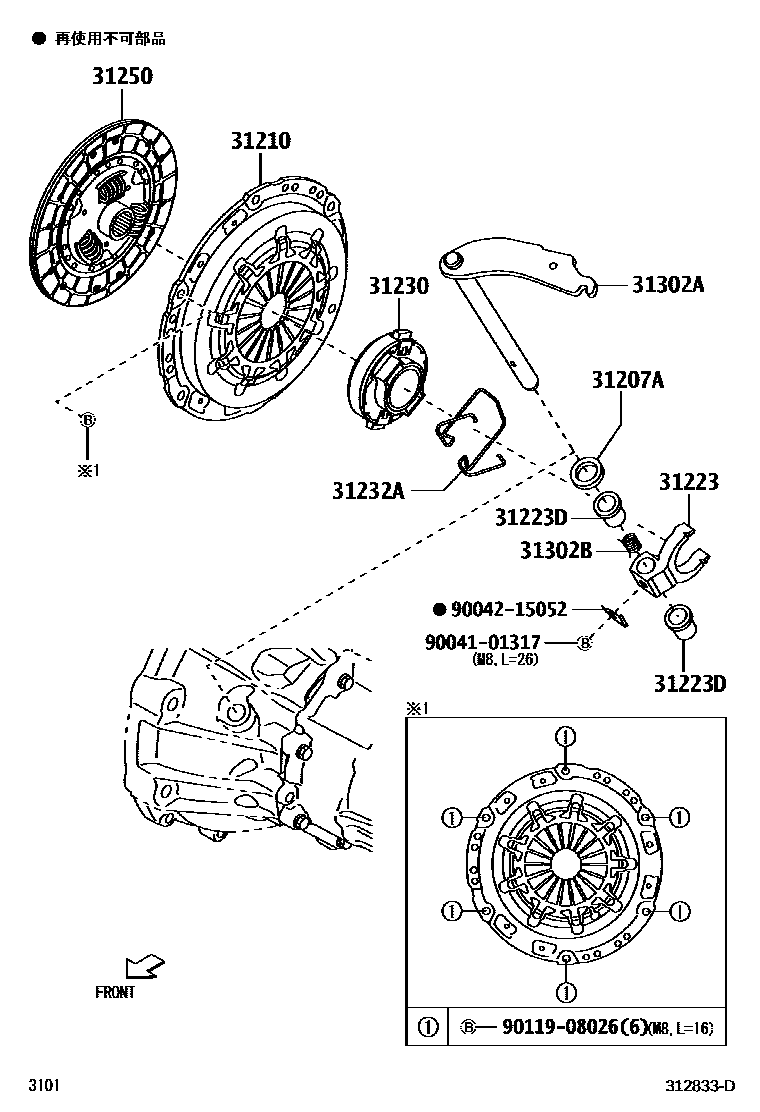

Toyota COPEN — CLUTCH & RELEASE FORK

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90043-19006iLA400..5FC201910

31210COVER ASSY, CLUTCH

main31210-B2031iLA400..5FC201910

31223YOKE, CLUTCH RELEASE LEVER

main31223-B2010iLA400..5FC201910

31223DBUSH(FOR CLUTCH RELEASE LEVER YOKE)

main90043-86081×2iLA400..5FC201910

31230BEARING ASSY, CLUTCH RELEASE

main31230-B2010iLA400..5FC201910

31232ACLIP, RELEASE BEARING HUB

main31232-B1010iLA400..5FC201910

31250DISC ASSY, CLUTCH

main31250-B2030iLA400..5FC201910

31302ALEVER SUB-ASSY, CLUTCH RELEASE FORK

main31302-97203iLA400..5FC201910

31302BSPRING, TORSION(FOR CLUTCH RELEASE FORK LEVER)

main90045-08170iLA400..5FC201910

9004101317

main90041-01317

9004215052

main90042-15052

9011908026

main90119-08026

12 parts on this diagram · 1 diagram in section
