Toyota COPEN — CLEARANCE & BACK SONAR

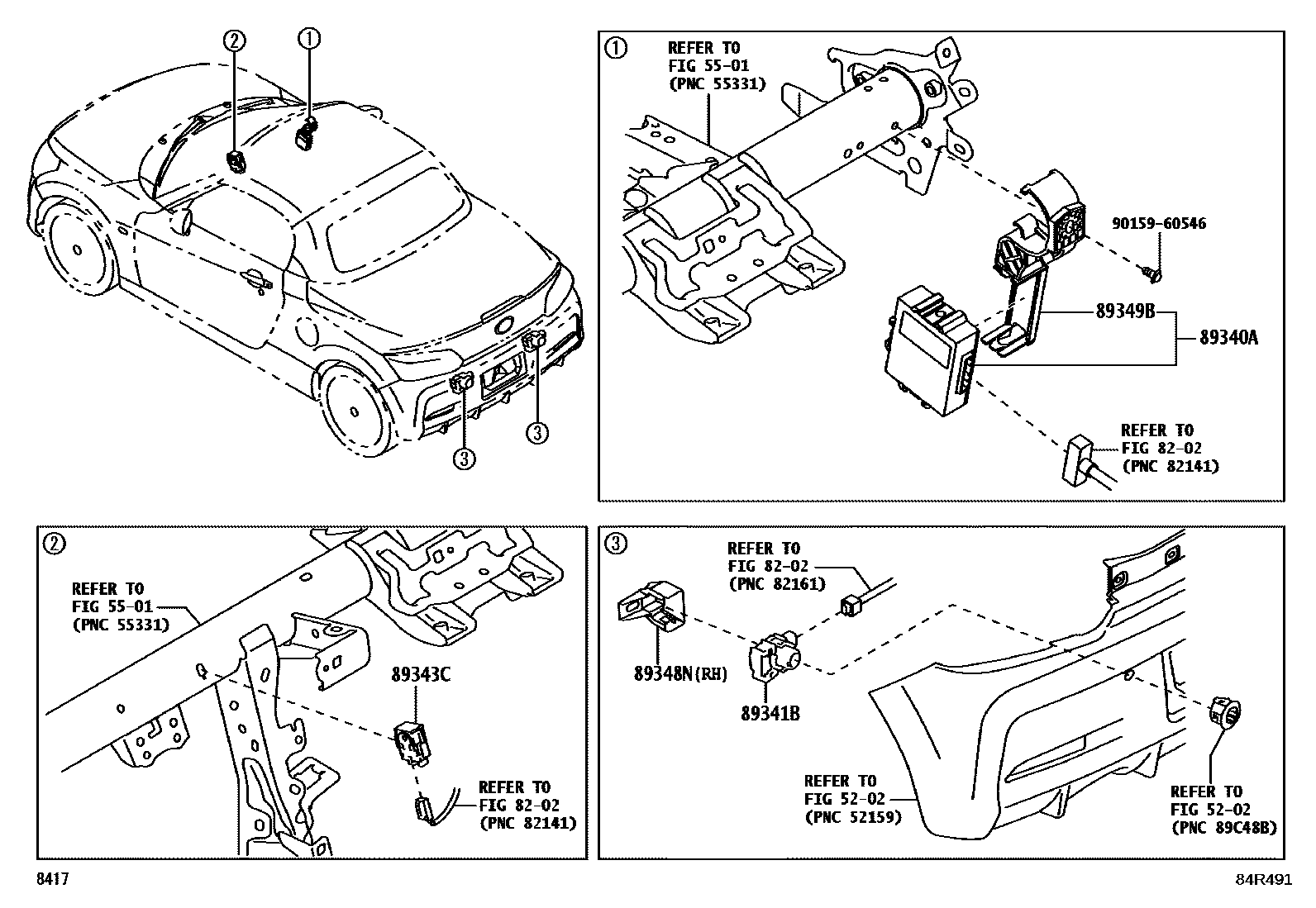

Parts diagram

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8202WIRING & CLAMP

→ Go to FIG 82-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-B2290i202412

89341BSENSOR, ULTRASONIC, NO.2

main89341-B2020-C0×2i202412

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010i202412

89348NCLIP, ULTRASONIC SENSOR, NO.1

main89348-76010i202412

89349BBRACKET, CLEARANCE WARNING COMPUTER

main89539-B2820i202412

9015960546

main90159-60546

9 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota COPEN

This section contains 9 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota COPEN. Key components include: REAR BUMPER & BUMPER STAY, INSTRUMENT PANEL & GLOVE COMPARTMENT, WIRING & CLAMP, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.2.
