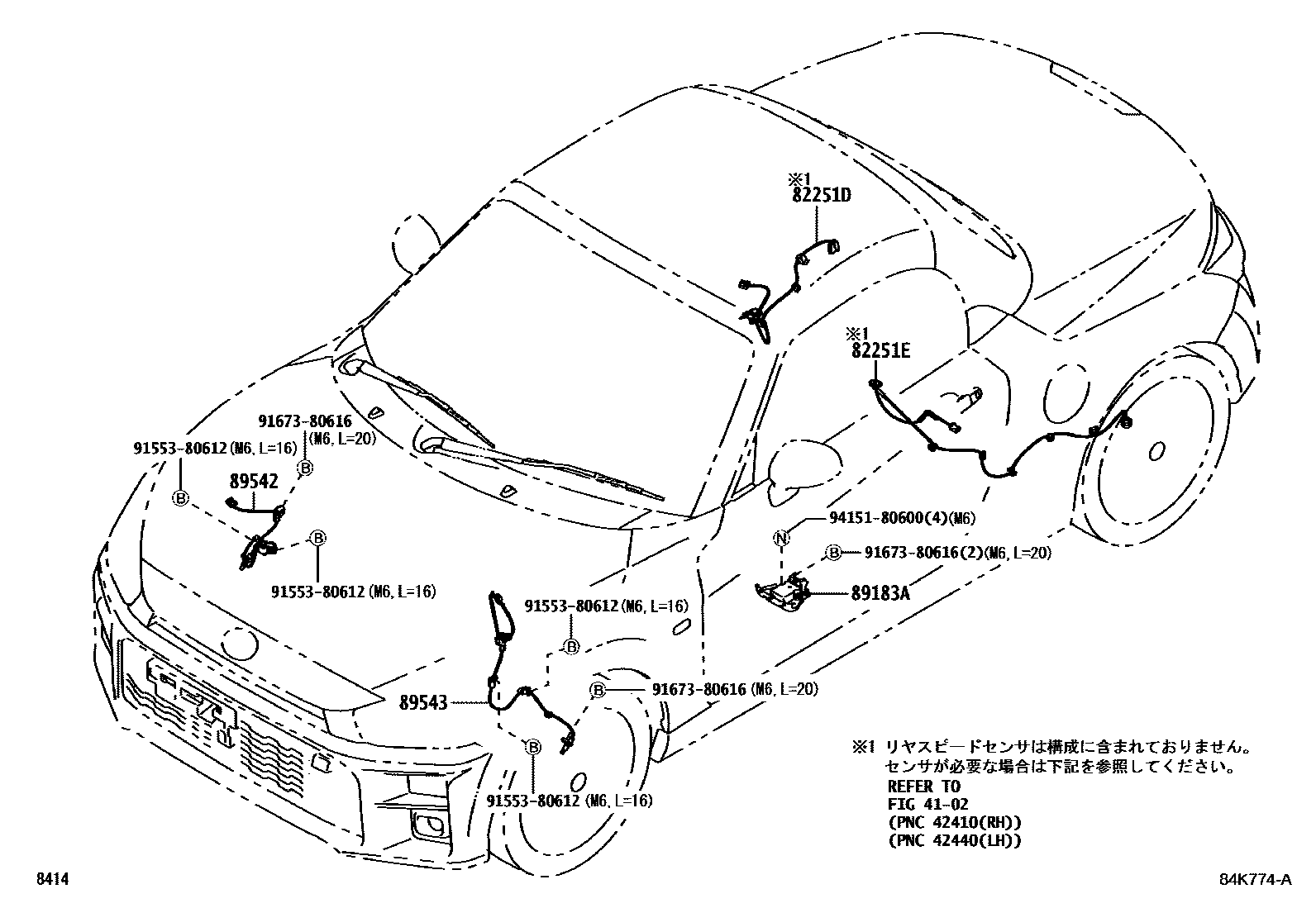

Toyota COPEN — ABS & VSC
4102REAR AXLE SHAFT & HUB
82251DWIRE, SPEED SENSOR, RH
82251EWIRE, SPEED SENSOR, LH
89183ASENSOR, YAWRATE
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
9155380612
main91553-80612
9167380616
main91673-80616
9415180600
main94151-80600
9 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota COPEN
This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota COPEN. Key components include: REAR AXLE SHAFT & HUB, WIRE, SPEED SENSOR, RH, WIRE, SPEED SENSOR, LH, SENSOR, YAWRATE, SENSOR, SPEED, FRONT RH.
