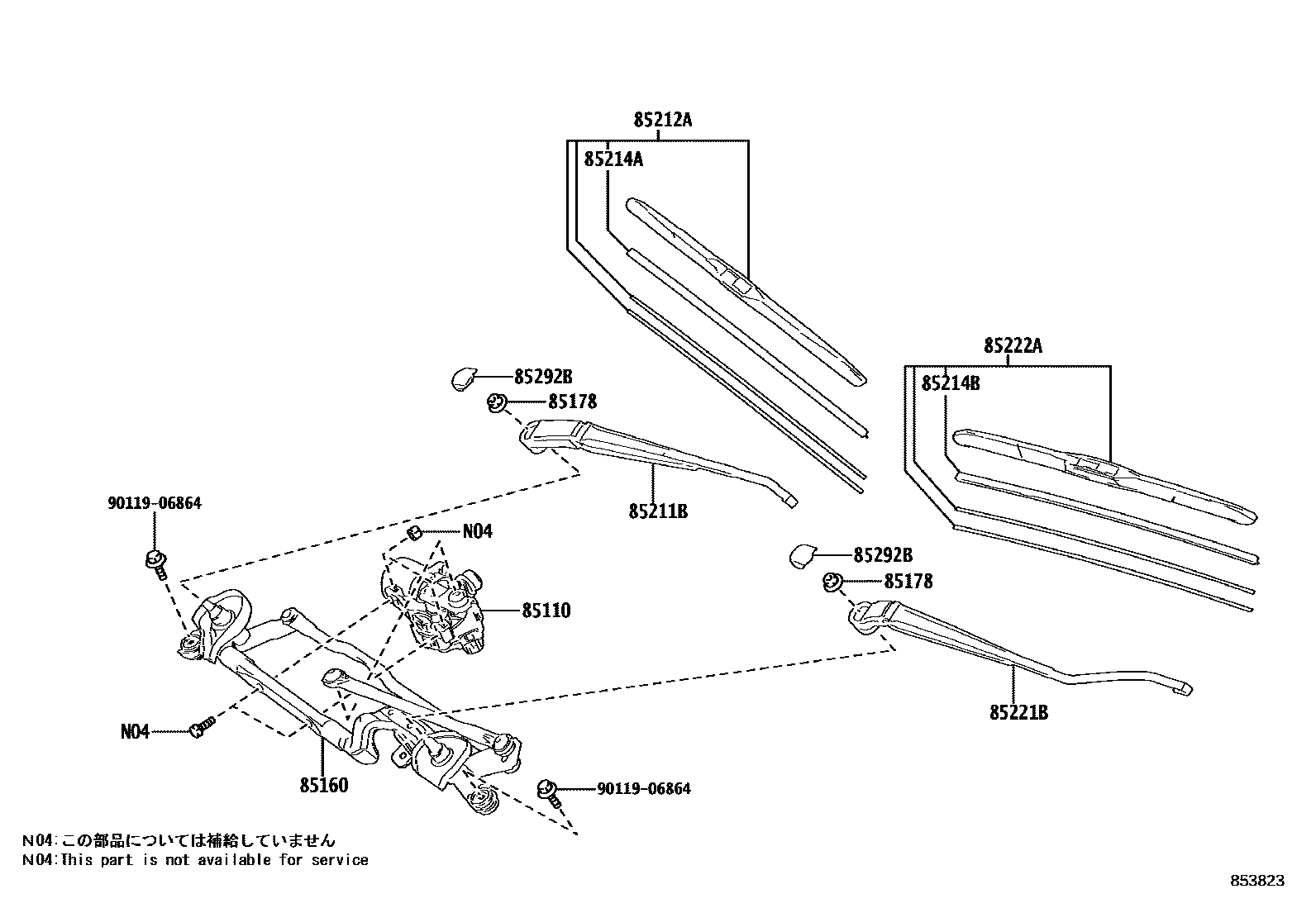

Toyota COMFORT — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-15020i201710

85160LINK ASSY, WINDSHIELD WIPER

main85150-15020i201710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i201710

85211BARM, FRONT WIPER, RH

main85211-15010i201710

85212ABLADE, FR WIPER, RH

main85212-15010i201710

85214ARUBBER, WIPER, RH

main85214-53080i201710

85214BRUBBER, WIPER, LH

main85214-33180i201710

85221BARM, FRONT WIPER, LH

main85221-15010i201710

85222ABLADE, FR WIPER, LH

main85222-15020i201710

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201710

9011906864

main90119-06864

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COMFORT

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COMFORT. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
