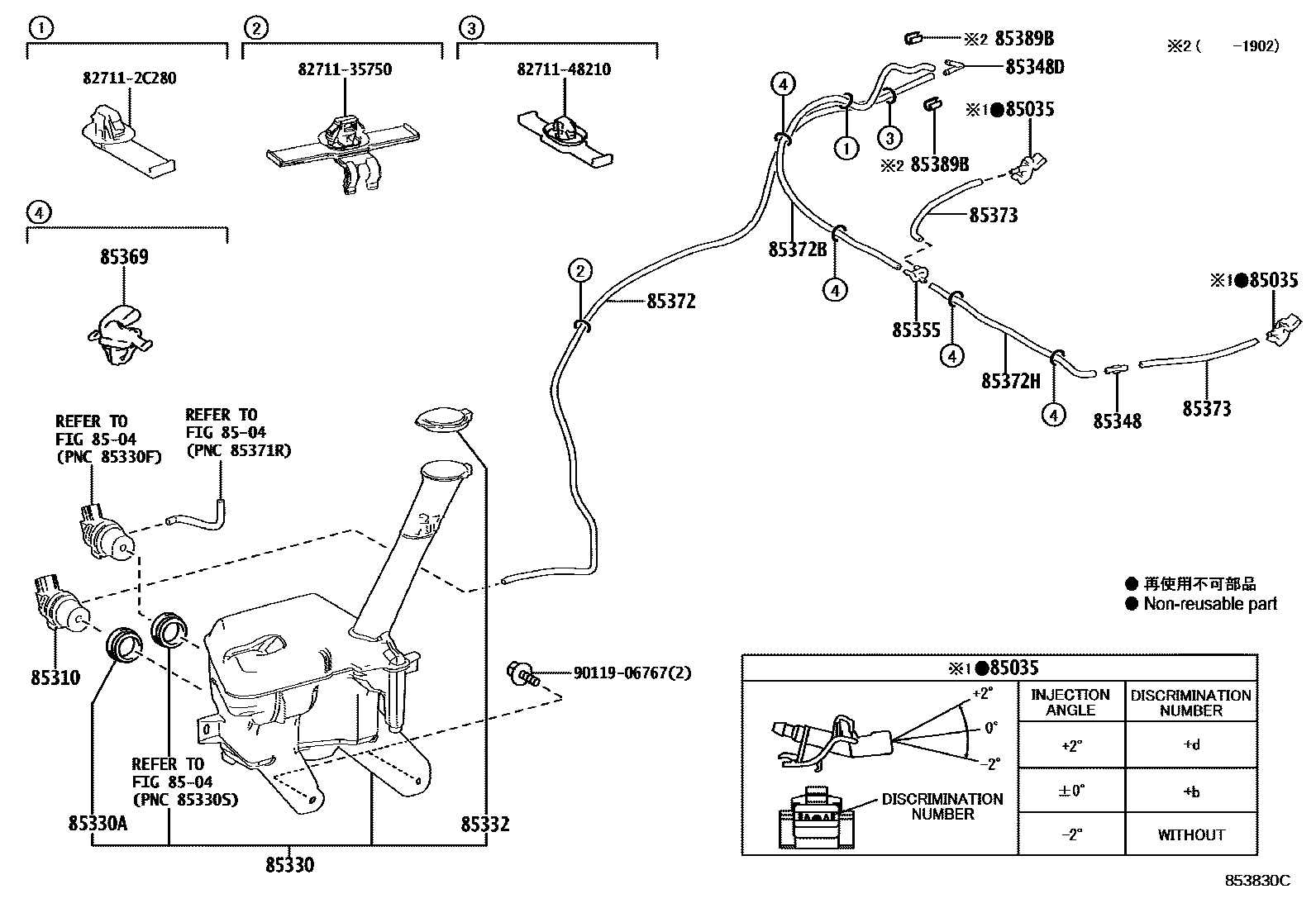

Toyota COMFORT — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201710

ANGLE 0

main85381-30230×2i201710

ANGLE -2

main85381-30240×2i201710

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201710

85330JAR ASSY, WINDSHIELD WASHER

main85315-52420i201710

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201710

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201710

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201710

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-12360i201710

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201710

85369CLAMP

main85371-12040×4i201710

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201710

L=1450(*H,L=1150)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201710

L=1450(*H,L=830)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299i201710

L=1000(*H,L=370)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201710

L=1450(*H,L=165)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-2B270×2i201710-201902

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48210

9011906767

main90119-06767

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COMFORT

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COMFORT. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
