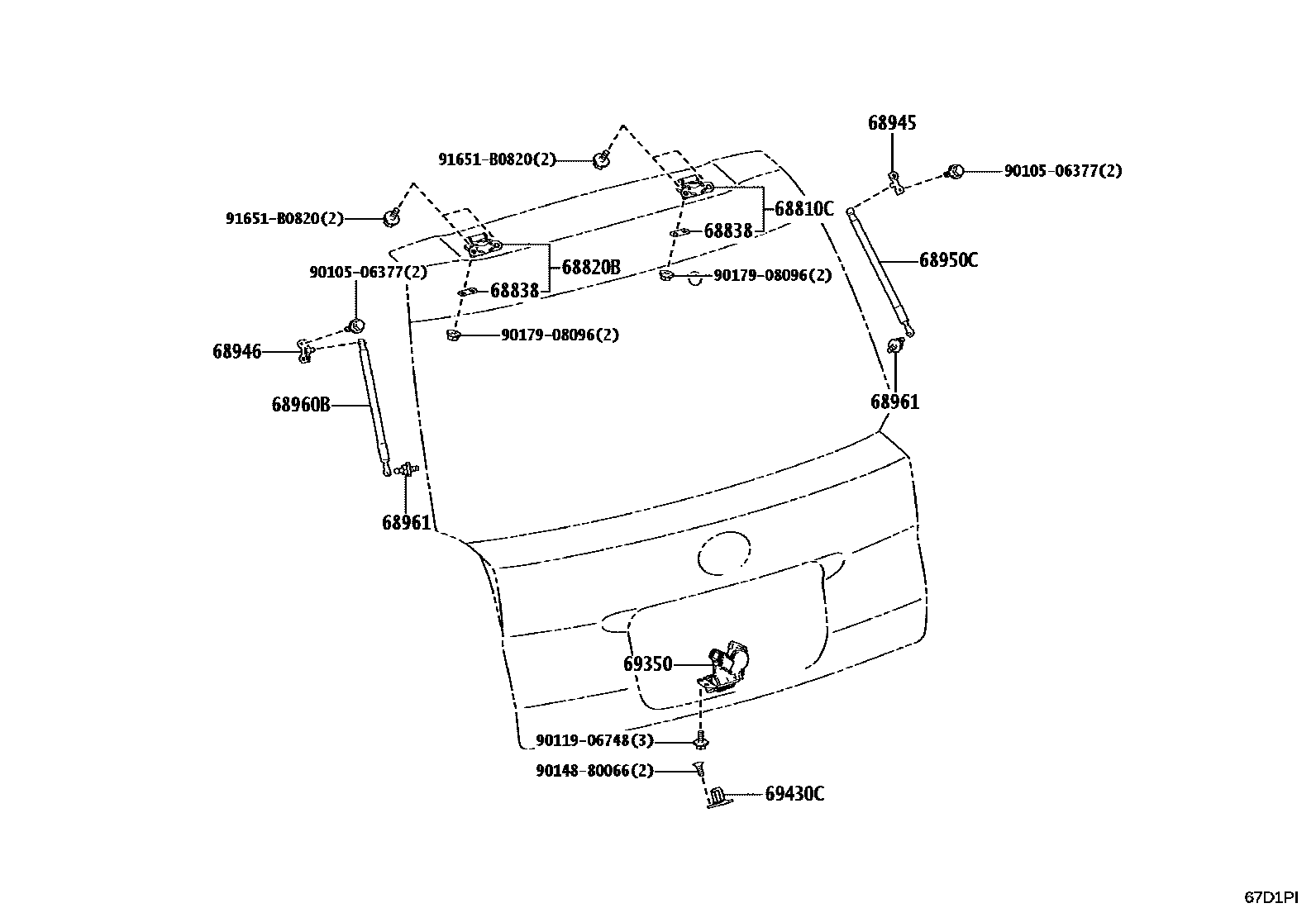

Toyota COMFORT — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506377
main90105-06377
9011906748
main90119-06748
9014880066
main90148-80066
9017908096
main90179-08096
91651B0820
main91651-B0820
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COMFORT
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COMFORT. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
