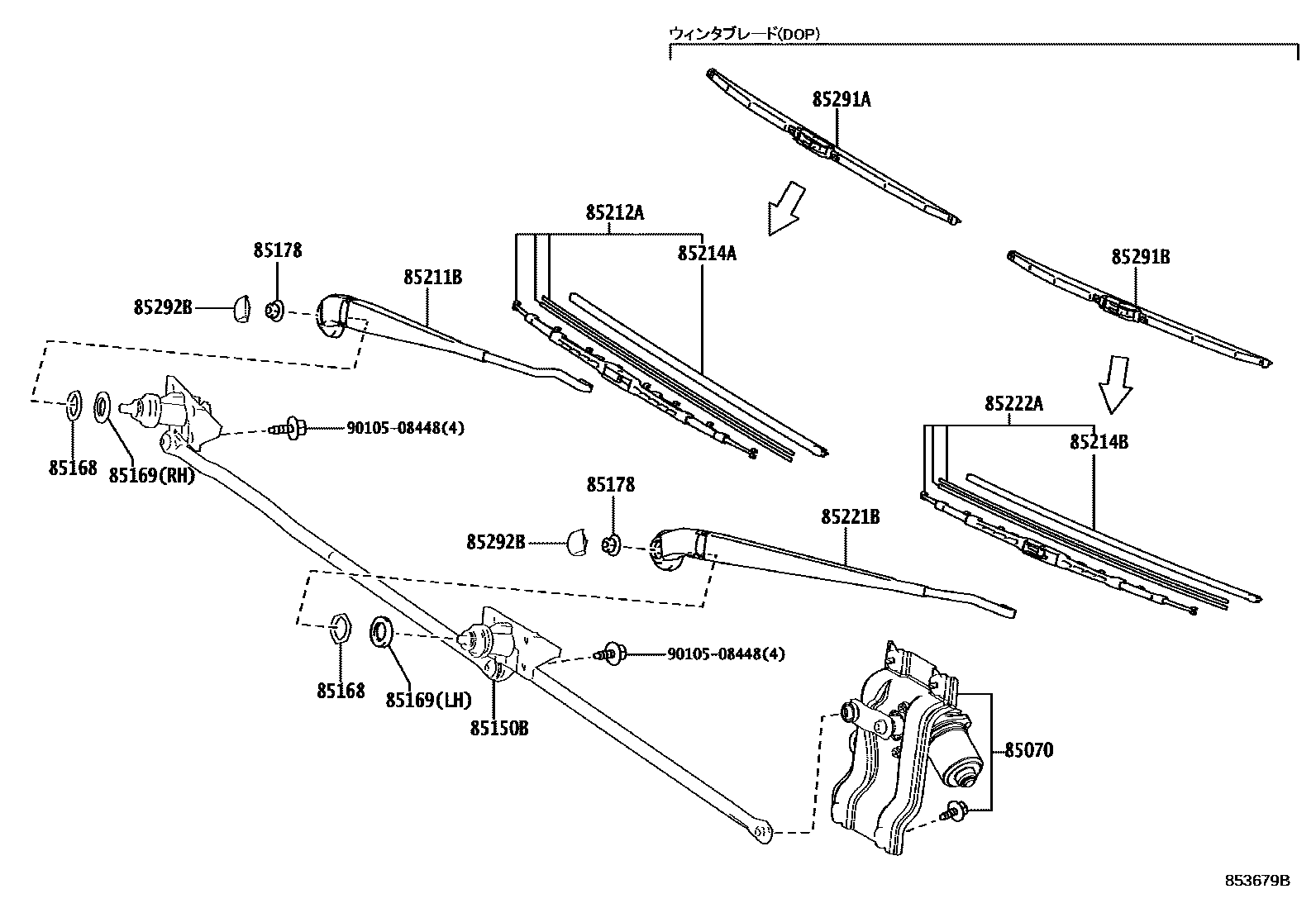

Toyota COASTER — WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-36100iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

85150BLINK ASSY, WIPER

main85150-36040iXZB60,70201701-201807

sub85150-36041

main85150-36060iXZB60,70201807-201902

main85150-36061iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201903-202201

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85113-36010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-36010iXZB60,70201701-201709

main85152-36011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201709-202201

main85152-36020iXZB60,70201701-201709

main85152-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201709-202201

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

85211BARM, FRONT WIPER, RH

main85211-36040iXZB60,70201701-201807

main85211-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201807-202201

85212ABLADE, FR WIPER, RH

main85212-26130iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

85214ARUBBER, WIPER, RH

main85214-48010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

85214BRUBBER, WIPER, LH

main85214-24051iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

85221BARM, FRONT WIPER, LH

main85221-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

85222ABLADE, FR WIPER, LH

main85212-26051iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iXZB60,70..25S,29S201701-201807

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060iXZB60,70..25S,29S201701-201807

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

9010508448

main90105-08448

15 parts on this diagram · 1 diagram in section
