Toyota COASTER — WINDSHIELD WIPER
55795BBRACKET, FRONT WIPER MOTOR
85070MOTOR & BRACKET ASSY, FRONT WIPER
85150BLINK ASSY, WIPER
85154PACKING, FRONT WIPER SHAFT
85168NUT, WINDSHIELD WIPER LINK PIVOT
85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85213ARUBBER, WIPER BLADE, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
main85222-36060iXZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU200804-201501
85223ARUBBER, FRONT WIPER BLADE, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-20280iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU199705-201501
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
9165140616
main91651-40616
9165160616
main91651-60616

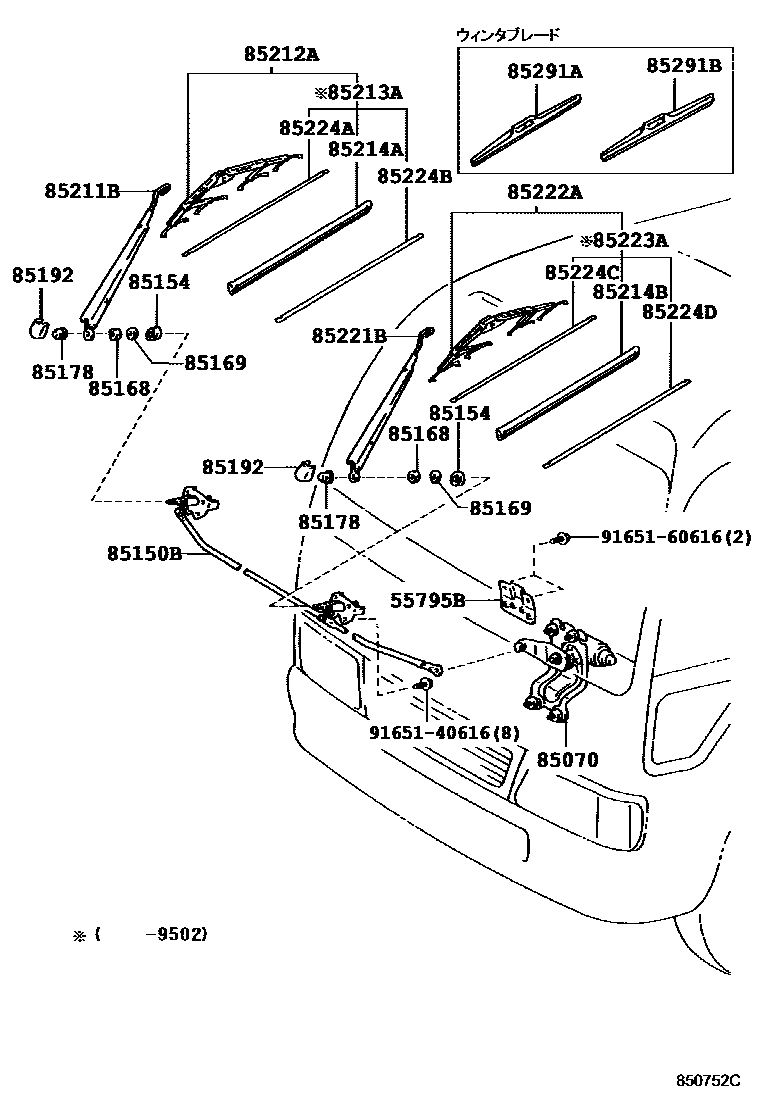

24 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota COASTER
This section contains 24 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COASTER. Key components include: BRACKET, FRONT WIPER MOTOR, MOTOR & BRACKET ASSY, FRONT WIPER, LINK ASSY, WIPER, PACKING, FRONT WIPER SHAFT, NUT, WINDSHIELD WIPER LINK PIVOT.
