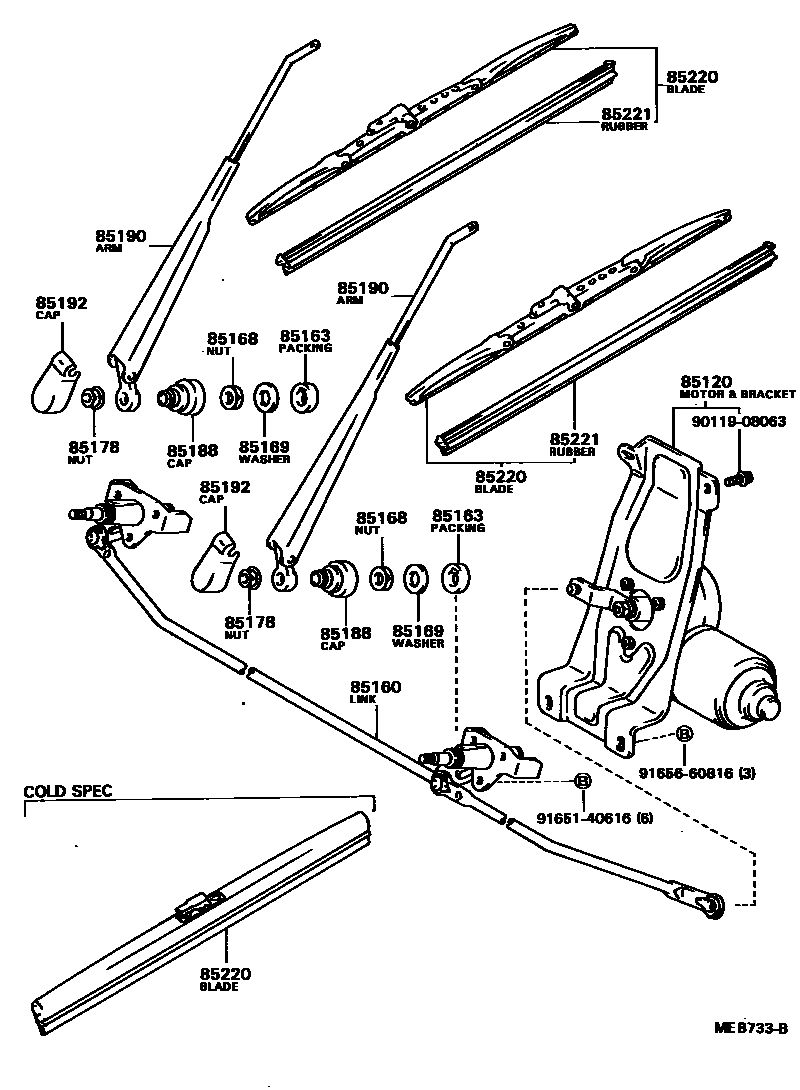

Toyota COASTER — WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-90B00i198205-199301

main85120-90B01i198205-199301

85160LINK ASSY, WINDSHIELD WIPER

main85160-90B00i198205-199301

85163PACKING, WINDSHIELD WIPER PIVOT

main85174-90B00i198205-199301

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-90B00i198205-199301

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main90209-20001i198205-199301

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10033i198205-199301

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85178-90B00i198205-199301

85190ARM ASSY, WINDSHIELD WIPER

main85190-90B00i198205-199301

main85210-90B00i198205-199301

85192COVER, WINDSHIELD WIPER ARM

main85261-90B00i198205-199301

85220BLADE ASSY, WINDSHIELD WIPER

main85220-90B00i198205-199301

main85220-90B01i198404-199301

WINTER BLADE

85221BLADE, WINDSHIELD WIPER

main85221-90B00i198205-199301

9011908063

main90119-08063

9165140616

main91651-40616

9165660816

main91656-60816

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COASTER

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COASTER. Key components include: MOTOR AND BRACKET ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, PACKING, WINDSHIELD WIPER PIVOT, NUT, WINDSHIELD WIPER LINK PIVOT, WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1.
