Toyota COASTER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-90740iRB1#197708-198204

main85110-90742iBB1#197708-198204

85160LINK ASSY, WINDSHIELD WIPER

main85160-90740iBB1#,RB1#197708-198204

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-90500×2iBB1#,RB1#197708-198204

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-90500×2iBB1#,RB1#197708-198204

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-90500×2iBB1#,RB1#197708-198204

sub85169-95A00

85178NUT (FOR FRONT WIPER ARM SETTING)

main85193-90500×2iBB10,RB11197708-197911

main90176-08026×2iBB11,RB1#197911-198204

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-56010×2iBB1#,RB1#197708-198204

85190ARM ASSY, WINDSHIELD WIPER

main85190-90740×2iBB10,RB11197708-197911

main85190-90743×2iBB11,RB1#197911-198204

85220BLADE ASSY, WINDSHIELD WIPER

main85220-90740×2iBB10,RB11197708-197911

main85220-90741×2iBB11,RB1#197911-198204

85230BRACKET ASSY, WINDSHIELD WIPER

main85231-90740iBB1#,RB1#197708-198204

9165640616

main91656-40616

9338115012

main93381-15012

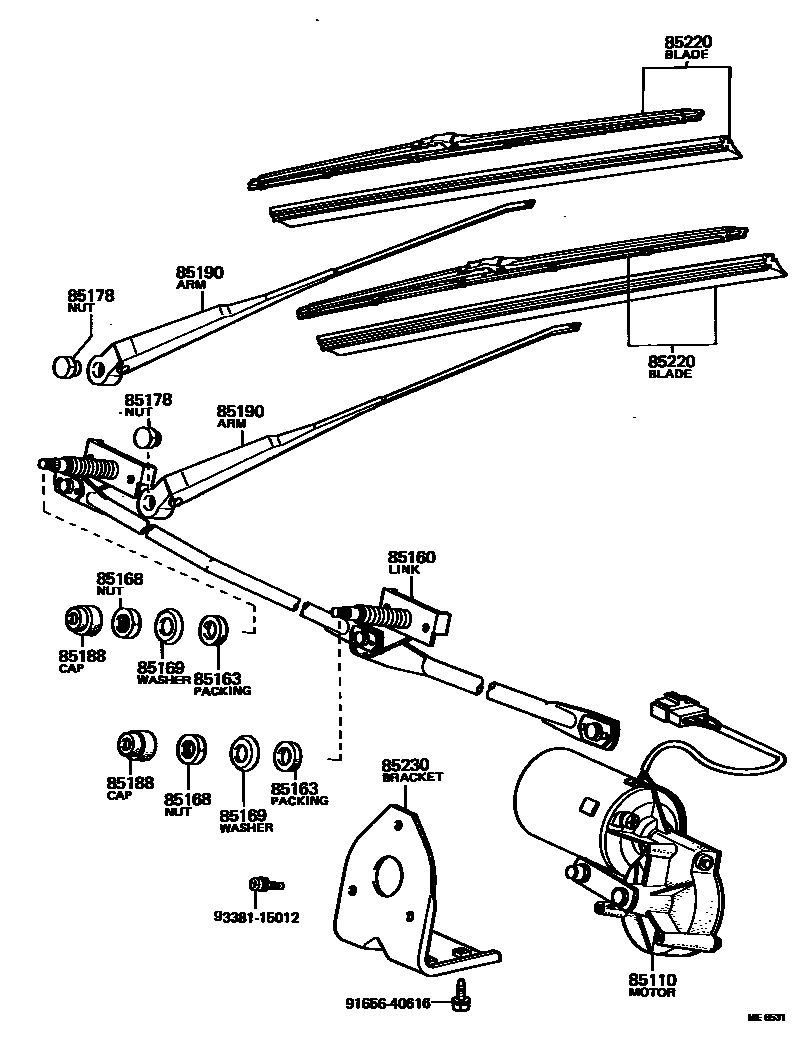

12 parts on this diagram · 1 diagram in section
