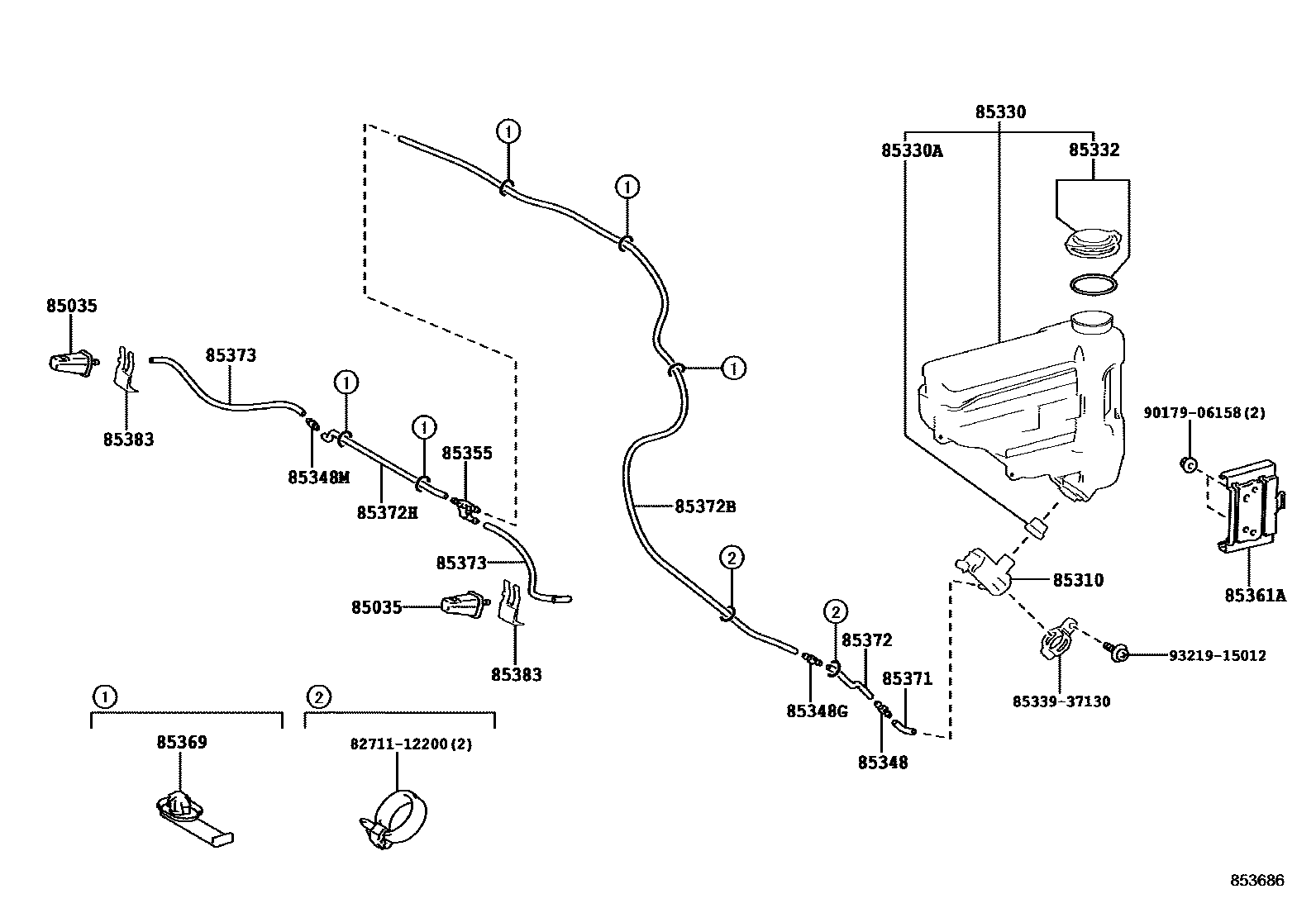

Toyota COASTER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-36031×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201801-202201
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-60140iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85330JAR ASSY, WINDSHIELD WASHER
main85315-36130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85332CAP, WINDSHIELD WASHER JAR
main85316-36130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85349-89122iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-95A02iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85369CLAMP
main82711-52090×5iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85355-14481iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90446-07001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
85383HOLDER, FRONT WASHER NOZZLE
main85383-36010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8533937130CAP SUB-ASSY, RESERVE TANK
main85339-37130
9017906158
main90179-06158
9321915012
main93219-15012
21 parts on this diagram · 1 diagram in section
