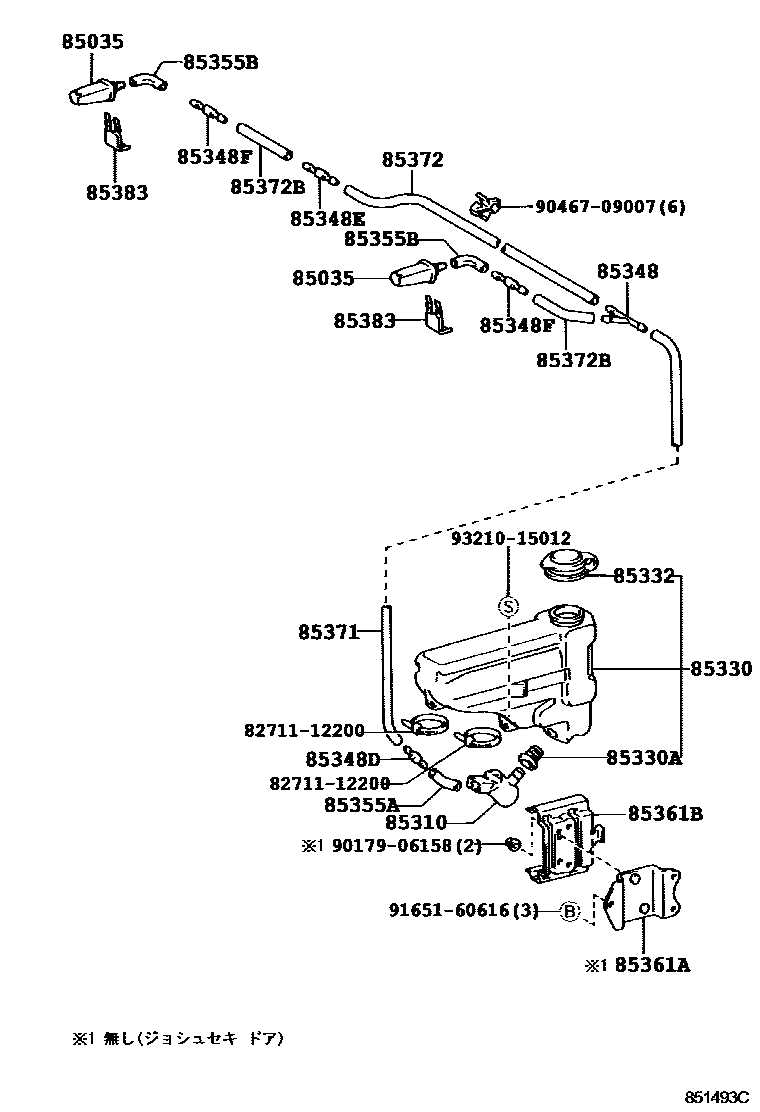

Toyota COASTER — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-36010×2iXZB51..SULNG200408-200512

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20200iBZB40,50201501

main85330-36160iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

85330JAR ASSY, WINDSHIELD WASHER

main85315-36130iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85332CAP, WINDSHIELD WASHER JAR

main85316-36130iXZB51..SULNG200408-200512

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-89122iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85349-89122×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-14481iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

85355BJOINT, ELBOW NO.2

main85355-14481×2iBB5#199512-199907

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-36160iBB4#,5#,HDB5#,HZB4#,5#199301-199907

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-95A00iBB4#,5#,HDB5#,HZB4#,5#199301-199811

main85361-95A02iBB4#,58,HDB5#,HZB4#,5#199811-199907

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iBZB40,50,XZB4#,5#201501

main90446-06013iBB4#,HDB5#,HZB4#,5#199301-199408

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iXZB51..SULNG200408-200512

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62015×2iBZB40,50,XZB51..STD,SULNG201012-201108

main90446-06013×2iXZB51..SULNG200408-200512

85383HOLDER, FRONT WASHER NOZZLE

main85383-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906158

main90179-06158

9046709007

main90467-09007

9165160616

main91651-60616

9321015012

main93210-15012

22 parts on this diagram · 2 diagrams in section
