Toyota COASTER — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i198205-199301

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198205-199301

main85310-90B00i198205-199301

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040i198205-199301

85342HOLDER, WASHER NOZZLE

main85342-95010i198205-199301

85345NOZZLE, WINDSHIELD WASHER

main85035-90B00i198205-198606

main85035-90B02i198606-199301

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198205-199301

85355VALVE, WINDSHIELD WASHER HOSE

main85349-89122i198703-199301

main85355-87201i198205-198703

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00i198205-199301

85364DCOVER, WINDSHIELD WASHER JAR

main85364-90B00i198205-199301

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i198205-199301

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198205-199301

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198205-199301

9009932089

main90099-32089

9017906158

main90179-06158

9046709007

main90467-09007

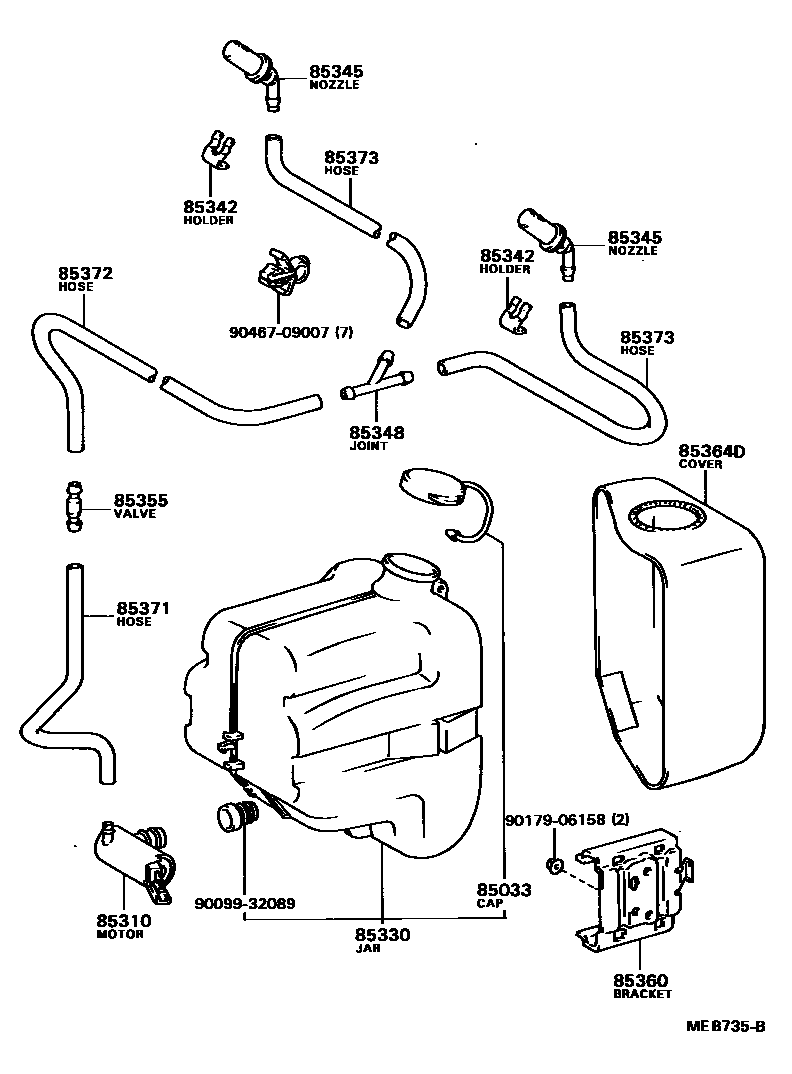

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COASTER

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COASTER. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, HOLDER, WASHER NOZZLE, NOZZLE, WINDSHIELD WASHER.
