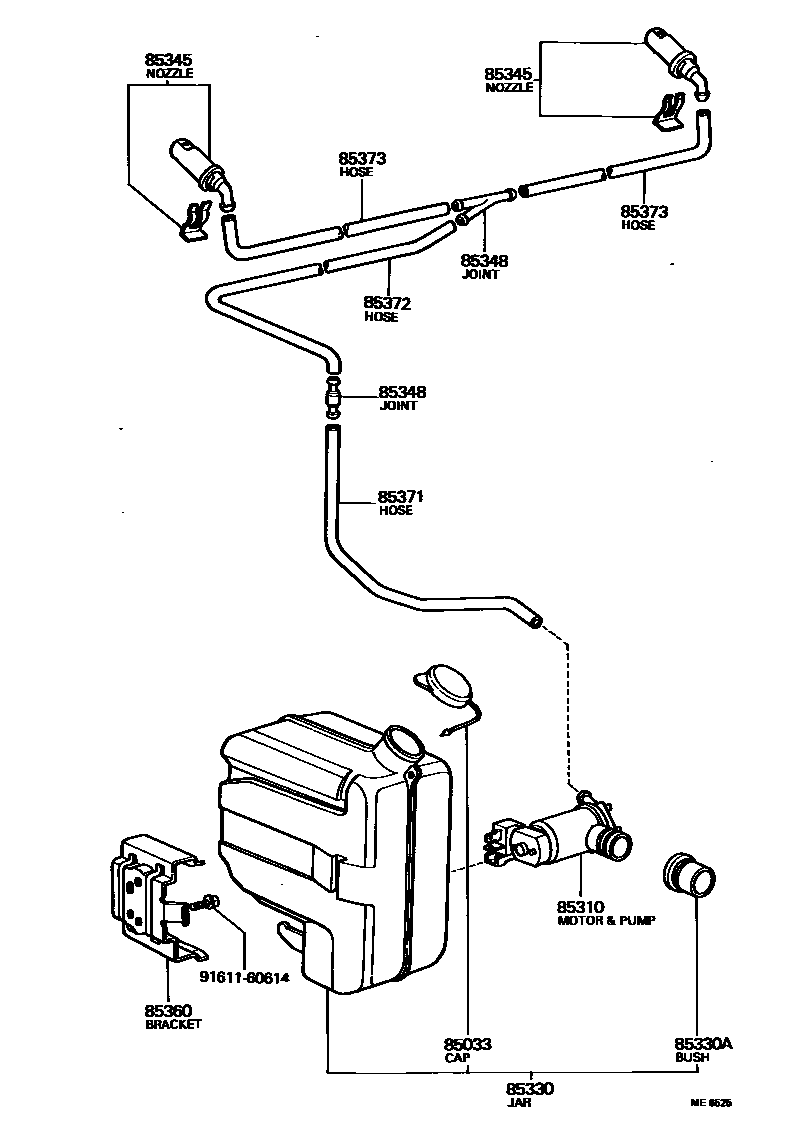

Toyota COASTER — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBB1#,RB1#197708-198204

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iRB1#197708-198204

sub85310-22080

main85310-25010iBB1#197708-198204

sub85310-90B00

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBB1#,RB1#197708-198204

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBB1#,RB1#197708-198204

85345NOZZLE, WINDSHIELD WASHER

main85035-36130×2iBB1#,RB1#197708-198204

FR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iBB1#,RB1#197708-198204

3 WAY

sub85348-12250

main85355-87201iBB1#,RB1#197708-198204

2 WAY

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00iBB1#,RB1#197708-198204

sub85361-95A02

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33316iBB1#,RB1#197708-197912

main90446-06013iBB11,RB1#197912-198204

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06006iBB11,RB1#197912-198204

main90446-06302iBB1#,RB1#197708-197912

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBB11,RB1#197912-198204

main90446-06051×2iBB1#,RB1#197708-197912

sub90099-33252

9161160614

main91611-60614

11 parts on this diagram · 1 diagram in section
