Toyota COASTER — VENTURI

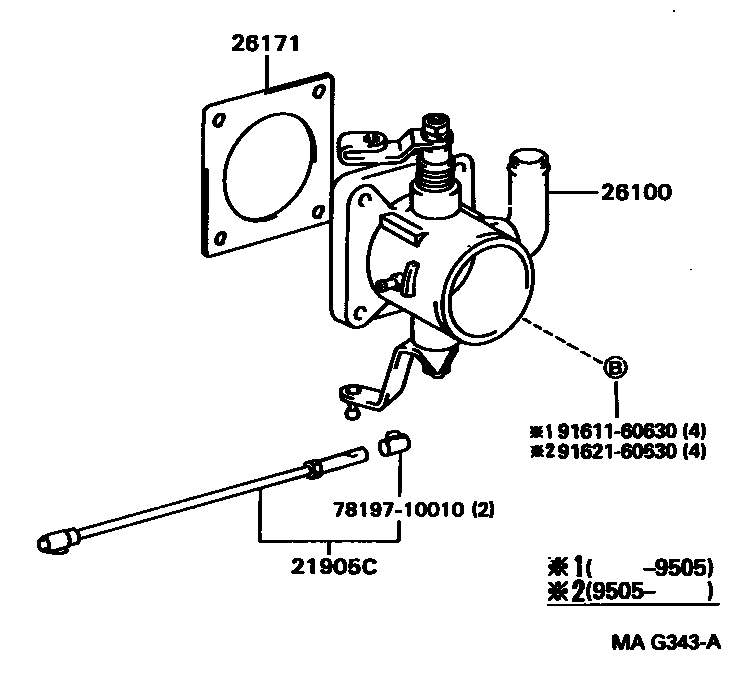

Parts diagram

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-57020i199301-199307

main21905-58030i199512-199907

main21905-58040i199505-199907

main21905-58070i199307-199505

26100VENTURI ASSY

main26100-17010i199907-200108

main26100-17011i200108-200408

main26100-58140i199301-199505

main26100-58141i199505-199907

main26100-58170i199512-199907

main26100-58190i199505-199907

main26100-58210i199907-200408

main26100-78061i200408-200705

main26100-78081i200908-201108

main26100-78100i200705-200708

main26100-E0160i201108-201501

26171GASKET, VENTURI

main26171-56050i199301-199907

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9161160630

main91611-60630

9162160630

main91621-60630

6 parts on this diagram · 6 diagrams in section

VENTURI for Toyota COASTER

This section contains 21 genuine Toyota parts for the VENTURI system of the Toyota COASTER. Key components include: MANIFOLD, IGNITION COIL & SPARK PLUG / GLOW PLUG, ROD, ACCELERATOR CONNECTING(FOR VENTURI), VENTURI ASSY, GASKET, VENTURI.
