Toyota COASTER — VENTURI

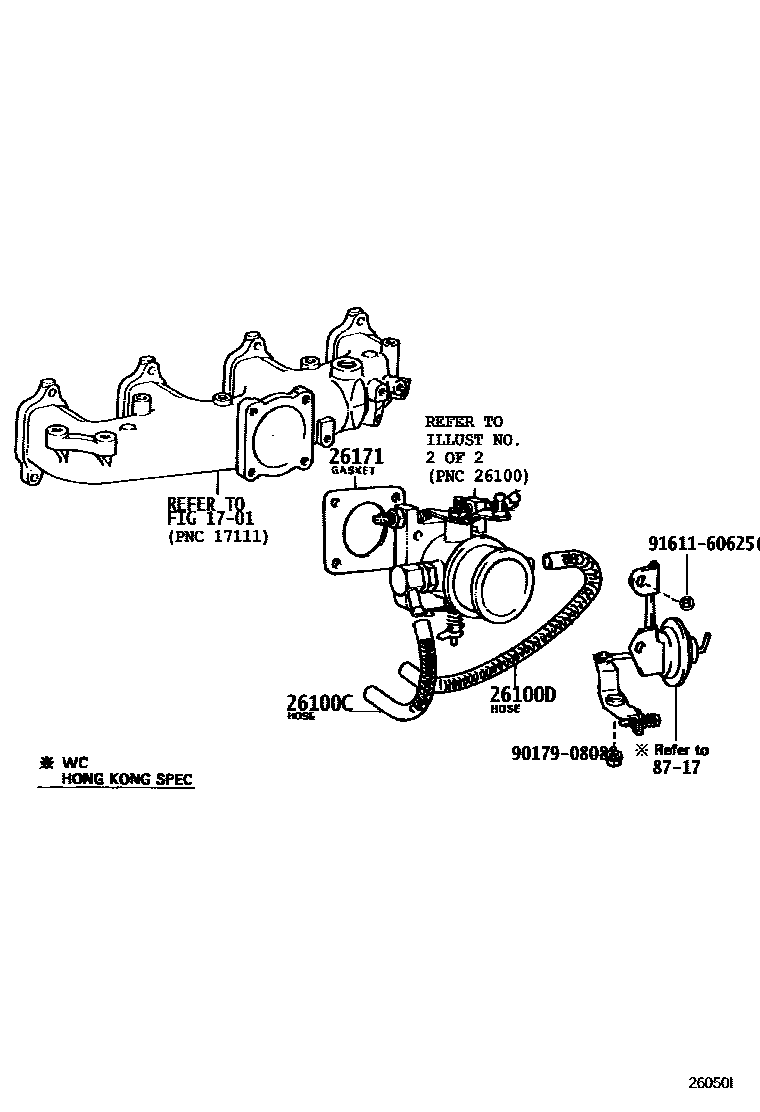

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

26100VENTURI ASSY

main26100-56100i198302-198808

main26100-58010i198205-198302

main26100-58040i198205-198302

main26100-58070i198808-199301

main26100-58110i198808-199301

main26100-68020i198205-199001

main26100-68040i198510-199001

26100CHOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)

main90445-14082i198205-199001

main90447-12002i198205-198302

26100DHOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)

main90445-14081i198205-199001

main90447-12002i198205-198302

26171GASKET, VENTURI

main26171-56020i198205-198808

main26171-56040×2i198510-198805

main26171-56050×2i198805-198811

main26171-56060×2i198811-199001

main26171-68010i198205-199001

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

9017908088

main90179-08088

9161160625

main91611-60625

8 parts on this diagram · 8 diagrams in section

VENTURI for Toyota COASTER

This section contains 50 genuine Toyota parts for the VENTURI system of the Toyota COASTER. Key components include: MANIFOLD, IGNITION COIL & SPARK PLUG / GLOW PLUG, ROD, ACCELERATOR CONNECTING(FOR VENTURI), SUPPORT, THROTTLE WIRE, ACTUATOR, IDEL UP.
