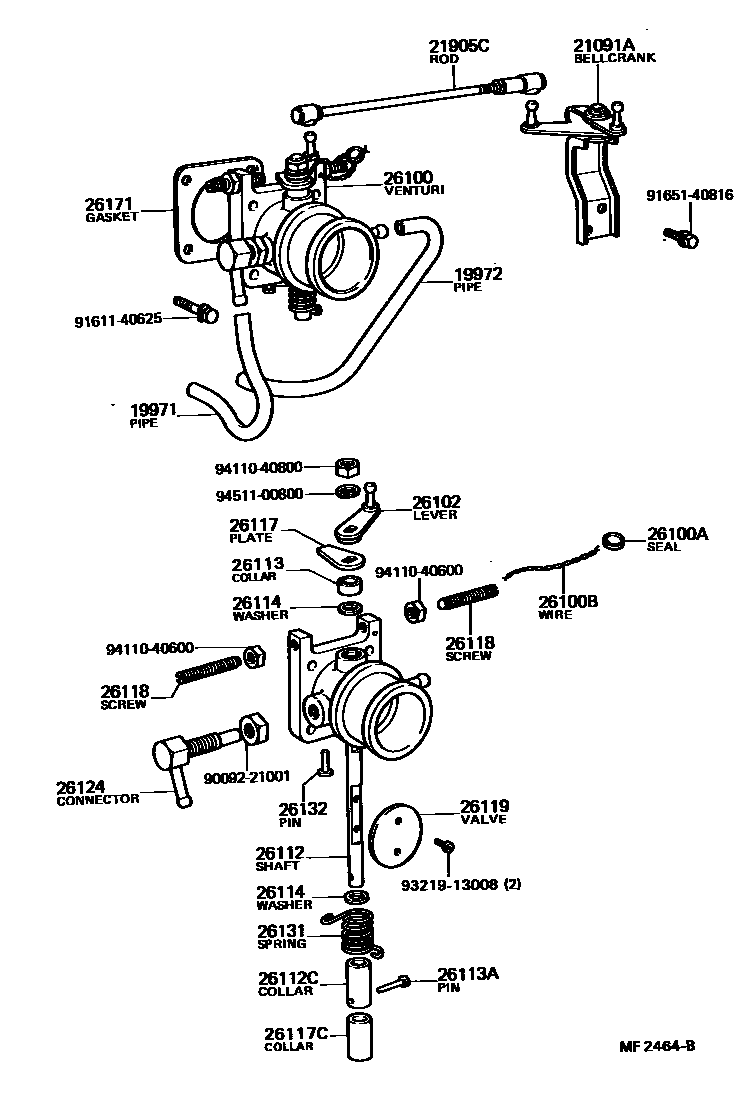

Toyota COASTER — VENTURI
19971PIPE, VACUUM(FOR VENTURI)
19972PIPE, AIR CLEANER VENT
21091ABELLCRANK, CHOKE ROD(FOR VENTURI)
21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)
26100VENTURI ASSY
26100ASEAL, LEAD
26100BWIRE, SEAL
26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26112SHAFT, VENTURI THROTTLE VALVE
26112CCOLLAR, ADJUSTING
26113COLLAR, THROTTLE VALVE SHAFT
26113APIN, THROTTLE VALVE SHAFT
26114WASHER, THROTTLE VALVE SHAFT ADJUSTING
26117PLATE, THROTTLE VALVE SHAFT STOP
26117CCOLLAR(FOR IDLE UP)
26118SCREW, STOP PLATE ADJUSTING
26119VALVE, VENTURI THROTTLE
26124CONNECTOR, VENTURI PIPE
26131SPRING, RETURN
26132PIN
26171GASKET, VENTURI
9009221001
main90092-21001
9161140625
main91611-40625
9165140816
main91651-40816
9321913008
main93219-13008
9411040600
main94110-40600
9411040800
main94110-40800
9451100800
main94511-00800
28 parts on this diagram · 2 diagrams in section
VENTURI for Toyota COASTER
This section contains 32 genuine Toyota parts for the VENTURI system of the Toyota COASTER. Key components include: PIPE, VACUUM(FOR VENTURI), PIPE, AIR CLEANER VENT, BELLCRANK, CHOKE ROD(FOR VENTURI), ROD, ACCELERATOR CONNECTING(FOR VENTURI), VENTURI ASSY.
