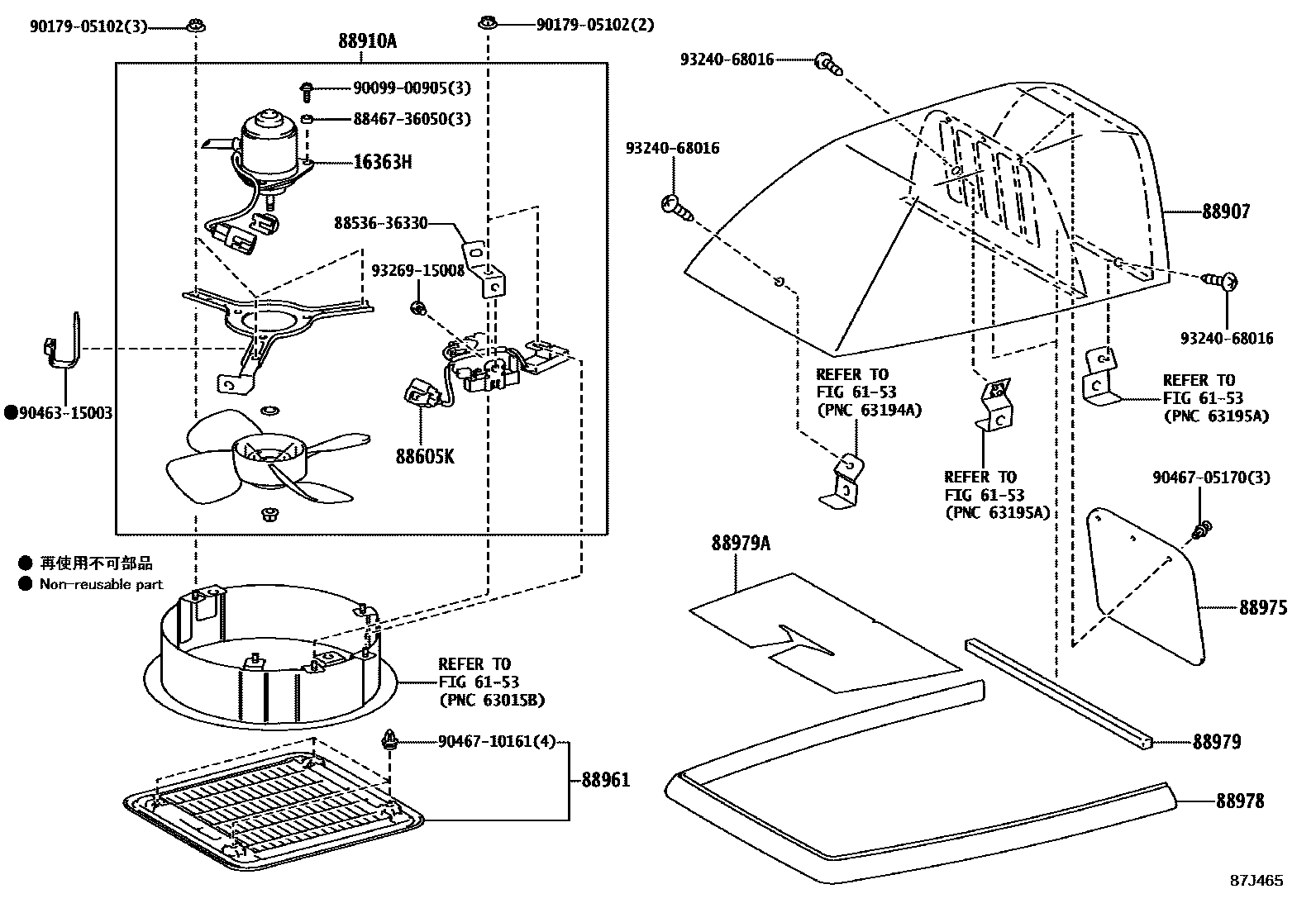

Toyota COASTER — VENTILATOR

0001 1 0002 1

16363HMOTOR, COOLING FAN

main16363-74040iN04C..XZB70,80..HDCR;N04C..XZB60,70..5F..(EX,GX);N04C..XZB70..29S..6FC..GX..DCR201701-202201

6153

88605KHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-36500iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88907COVER SUB-ASSY, BOOST VENTILATOR

main88907-36900iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88910AVENTILATOR ASSY, BOOST

main88910-36060iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88961GRILLE, BOOST VENTILATOR

main88961-36020-B0iXZB60,70..5F..(EX,GX);XZB70,80..(EX,GX)..HDCR;XZB70..29S..6FC..GX..DCR201701-202201

88975BUTTERFLY, BOOST VENTILATOR

main88975-36020iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88978TRIM, BOOST VENTILATOR COVER

main88978-36060iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88979SEAL, BOOST VENTILATOR

main88979-36030×2iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

88979ASEAL, BOOST VENTILATOR NO.2

main88979-36040iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

8846736050CUSHION, COOLER CONDENSER, NO.1

main88467-36050

8853636330BRACKET, COOLING UNIT, NO.1

main88536-36330

9009900905

main90099-00905

9017905102

main90179-05102

9046315003

main90463-15003

9046705170

main90467-05170

9046710161

main90467-10161

9324068016

main93240-68016

9326915008

main93269-15008

19 parts on this diagram · 2 diagrams in section
