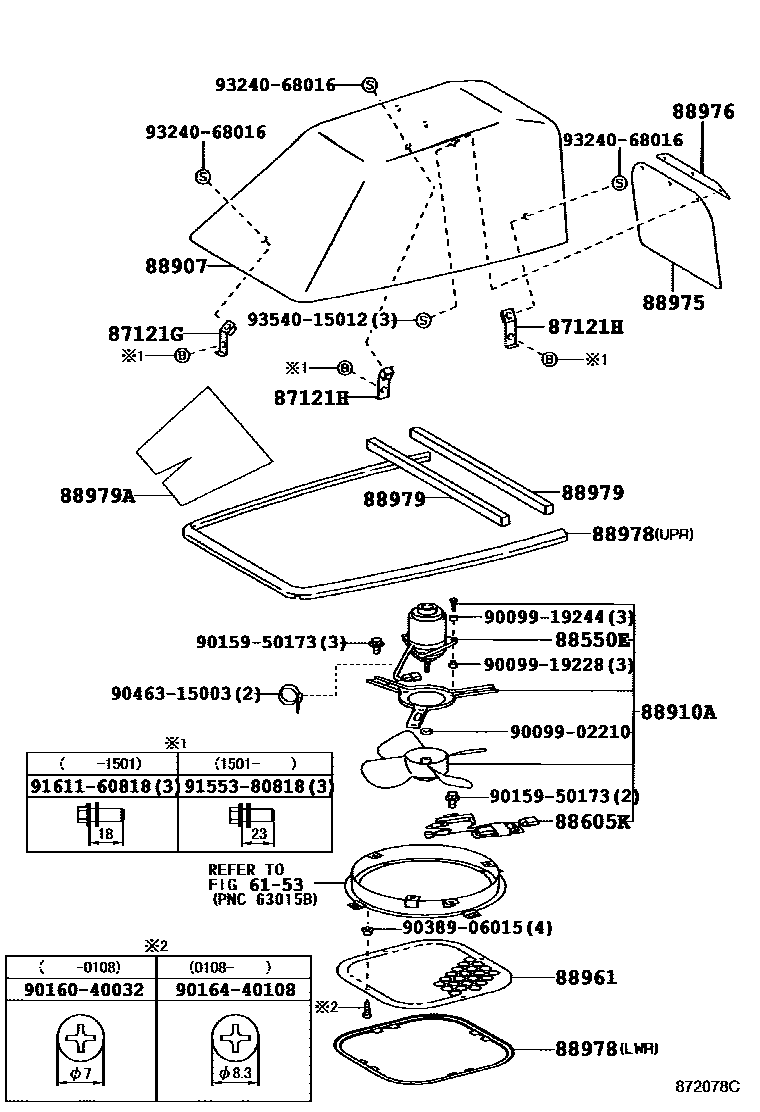

Toyota COASTER — VENTILATOR

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

87121GBRACKET, VENTILATOR, NO.1

main87121-90B02iHDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5)199301-201501

87121HBRACKET, VENTILATOR, NO.2

main87121-90B03iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

88550EMOTOR ASSY, BLOWER

main88550-36120iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

88605KHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-36150iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

88907COVER SUB-ASSY, BOOST VENTILATOR

main88907-36010iHDB5#,HZB41,50..EX,GX,SULNG199301-199401

main88907-36900iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199401-201612

88910AVENTILATOR ASSY, BOOST

main88910-36020iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

88961GRILLE, BOOST VENTILATOR

main88961-36010-A0iHDB5#,HZB41,50..EX,GX,SULNG199301-199310

IVORY,TRIM4#

main88961-36011-A0iHDB5#,HZB41,50..EX,GX,SULNG199310-199505

IVORY,TRIM4#

main88961-36011-A1iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199505-200108

IVORY,TRIM4#

main88961-36011-B0iXZB40,50,51..EX,GX,SULNG200108-201612

MD.CHARCOAL,TRIM1#

88975BUTTERFLY, BOOST VENTILATOR

main88975-36010iHDB5#,HZB41,50..EX,GX,SULNG199301-199607

main88975-36011iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199607-200805

main88975-36020iXZB51..IV5200806-201501

88976PLATE, BOOST VENTILATOR BUTTERFLY

main88976-36010iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

88978TRIM, BOOST VENTILATOR COVER

main88978-36010iXZB40,50,51..EX,GX199301-201612

main88978-36020-A0iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-199907

main88978-36020-A0iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199907-200108

IVORY,TRIM4#

main88978-36020-B0iHDB5#,HZB41,50..(EX,GX,SULNG)..(CBU,IV5)200108-201612

88979SEAL, BOOST VENTILATOR

main88979-36010iXZB40,50,51..(EX,GX,SULNG)..(5F,6FC)199301-200805

main88979-36030iXZB51..SULNG200806-201501

88979ASEAL, BOOST VENTILATOR NO.2

main88979-36020iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-201501

9009902210

main90099-02210

9009919228

main90099-19228

9009919244

main90099-19244

9015950173

main90159-50173

9016040032

main90160-40032

9016440108

main90164-40108

9038906015

main90389-06015

9046315003

main90463-15003

9155380818

main91553-80818

9161160818

main91611-60818

9324068016

main93240-68016

9354015012

main93540-15012

25 parts on this diagram · 1 diagram in section
