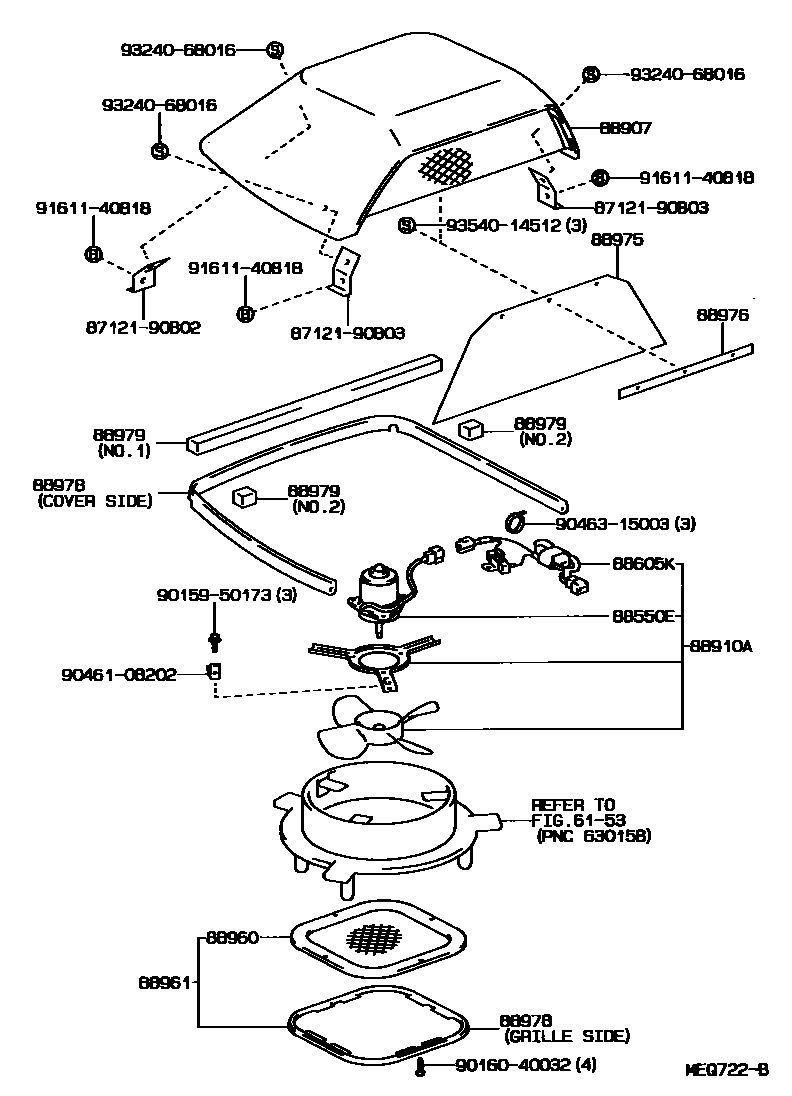

Toyota COASTER — VENTILATOR

6153

88550EMOTOR ASSY, BLOWER

main88550-90B16iBB2#,HDB20,3#,HZB3#..WC199001-199301

main88550-90B17iRB20..WC199001-199301

88605KHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-90B04iBB2#,HDB20,3#,HZB3#..WC199001-199301

main88605-90B05iRB20..WC199001-199301

88907COVER SUB-ASSY, BOOST VENTILATOR

main88907-90B01iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

88910AVENTILATOR ASSY, BOOST

main88910-90B01iBB2#,HDB20,3#,HZB3#..WC199001-199301

main88910-90B02iRB20..WC199001-199301

88960GRILLE ASSY, BOOST VENTILATOR

main88960-94350iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

88961GRILLE, BOOST VENTILATOR

main88961-90B00iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

88975BUTTERFLY, BOOST VENTILATOR

main88975-94350iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

88976PLATE, BOOST VENTILATOR BUTTERFLY

main88976-90B01iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

88978TRIM, BOOST VENTILATOR COVER

main88978-90B01iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

COVER SIDE

main88978-90B02iBB2#,HDB20,3#,HZB3#,RB20..WC199001-199301

GRILLE SIDE

sub88978-36020

88979SEAL, BOOST VENTILATOR

main88979-90B02iBB2#,HDB20,3#,HZB30,31,RB20..WC199001-199301

NO.1

main88979-90B03×2iBB2#,HDB20,3#,HZB30,31,RB20..WC199001-199301

NO.2

8712190B02BRACKET, HEATER, FRONT RH

main87121-90B02

8712190B03BRACKET, HEATER, FRONT RH

main87121-90B03

9015950173

main90159-50173

9016040032

main90160-40032

9046108202

main90461-08202

9046315003

main90463-15003

9161140818

main91611-40818

9324068016

main93240-68016

9354014512

main93540-14512

20 parts on this diagram · 1 diagram in section
