Toyota COASTER — TIMING CHAIN

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

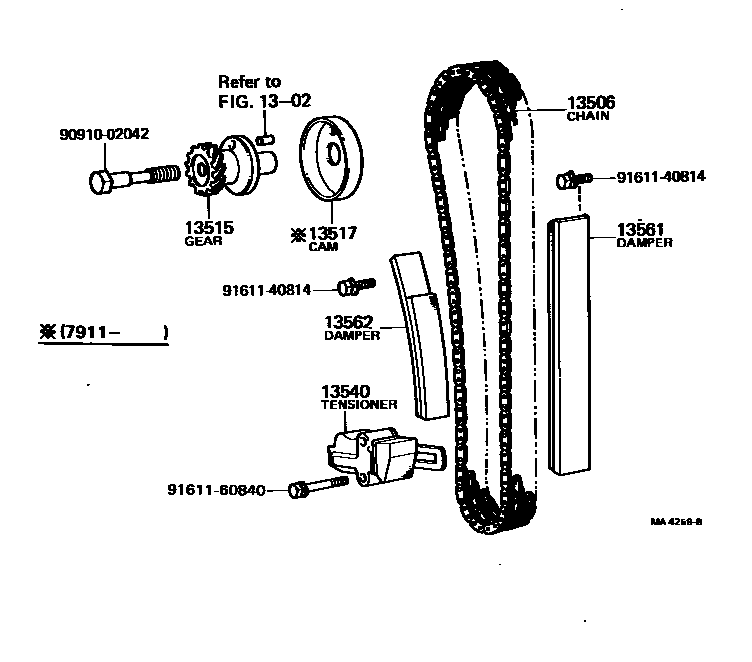

13506CHAIN SUB-ASSY

main13506-38010i197708-198204

13515GEAR, DISTRIBUTOR DRIVE

main13515-37010i197911-198204

N=13

main13515-38010i197708-197911

N=13

13517CAM, FUEL PUMP DRIVE

main13517-37010i197911-198204

13540TENSIONER ASSY, CHAIN, NO.1

main13540-38011i197708-197806

main13540-38012i197806-198204

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-38010i197708-198204

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-38010i197708-198204

9091002042

main90910-02042

9161140814

main91611-40814

9161160840

main91611-60840

10 parts on this diagram · 1 diagram in section

TIMING CHAIN for Toyota COASTER

This section contains 10 genuine Toyota parts for the TIMING CHAIN system of the Toyota COASTER. Key components include: CAMSHAFT & VALVE, CHAIN SUB-ASSY, GEAR, DISTRIBUTOR DRIVE, CAM, FUEL PUMP DRIVE, TENSIONER ASSY, CHAIN, NO.1.
