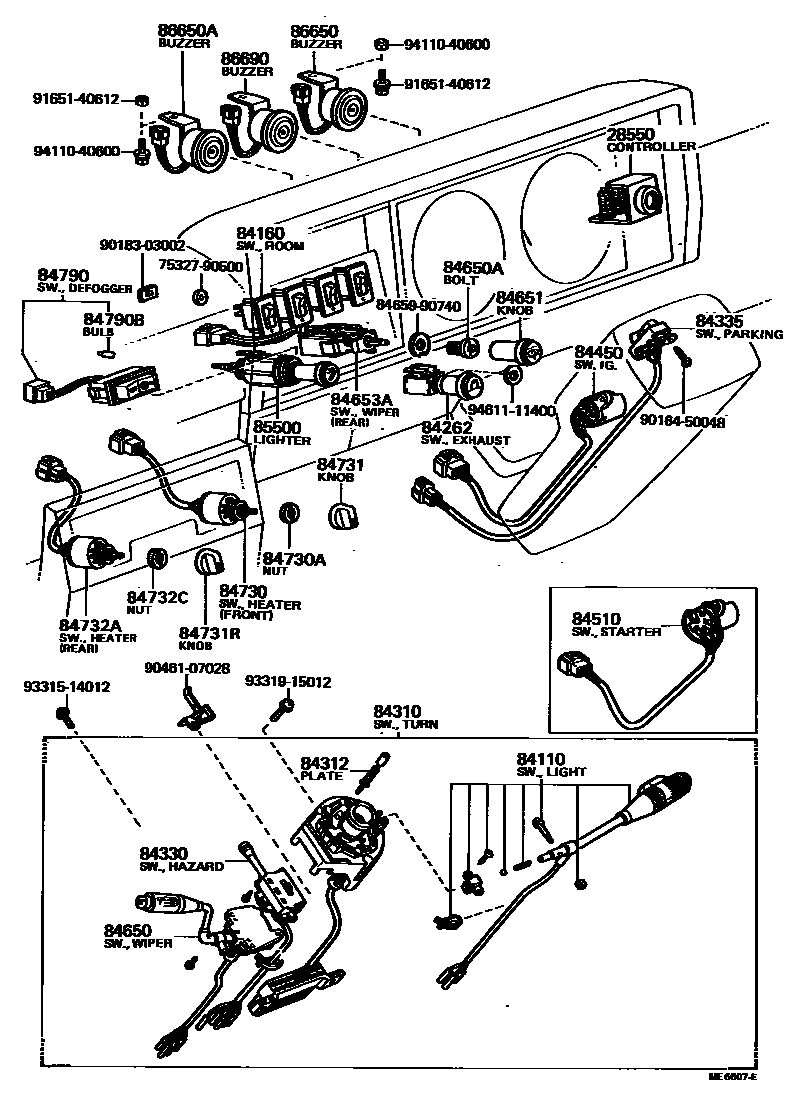

Toyota COASTER — SWITCH & RELAY & COMPUTER
28550CONTROLLER ASSY, GLOW PLUG
84110SWITCH ASSY, LIGHT CONTROL, NO.1
84160SWITCH ASSY, ROOM LAMP
84262SWITCH ASSY, EXHAUST BRAKE
84310SWITCH ASSY, TURN SIGNAL
W/INTERMITTENT WIPER
W/INTERMITTENT WIPER
W/INTERMITTENT WIPER
84312PLATE, HORN CONTACT
84330SWITCH ASSY, HAZARD WARNING SIGNAL
84335SWITCH ASSY, PARKING LAMP
84450SWITCH ASSY, IGNITION OR STARTER
84650SWITCH ASSY, WINDSHIELD WIPER
W/INTERMITTENT WIPER
W/INTERMITTENT WIPER
W/INTERMITTENT WIPER
84650ABOLT OR NUT, WINDSHIELD WIPER SWITCH SET
RR WIPER
84651KNOB, WINDSHIELD WIPER SWITCH
RR WIPER
84653ASWITCH, REAR WIPER
84730SWITCH ASSY, HEATER BLOWER
84730ANUT, HEATER BLOWER SWITCH
84731KNOB, HEATER BLOWER SWITCH
84731RKNOB, REAR HEATER BLOWER SWITCH
84732ASWITCH, REAR HEATER BLOWER
84732CNUT, REAR HEATER BLOWER SWITCH
84790SWITCH ASSY, REAR WINDOW DEFOGGER
12V
24V
84790BBULB(FOR REAR WINDOW DEFOGGER SWITCH)
24V 1.4W
85500LIGHTER ASSY, CIGARETTE
86650BUZZER ASSY, VACUUM INDICATOR
86650ABUZZER ASSY, DOOR OPENING
7532790500MARK, FRONT DOOR, RH
main75327-90500
8465990740BRACKET, REAR WIPER SWITCH
main84659-90740
9016450048
main90164-50048
9018303002
main90183-03002
9046107028
main90461-07028
9165140612
main91651-40612
9331514012
main93315-14012
9331915012
main93319-15012
9411040600
main94110-40600
9461111400
main94611-11400
36 parts on this diagram · 4 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota COASTER
This section contains 109 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COASTER. Key components include: SOLENOID, EXHAUST RETARDER, BRACKET, EXHAUST BRAKE(FOR SOLENOID), REGULATOR ASSY, GENERATOR, BRACKET, GENERATOR REGULATOR, RELAY ASSY, CHARGE LAMP.
