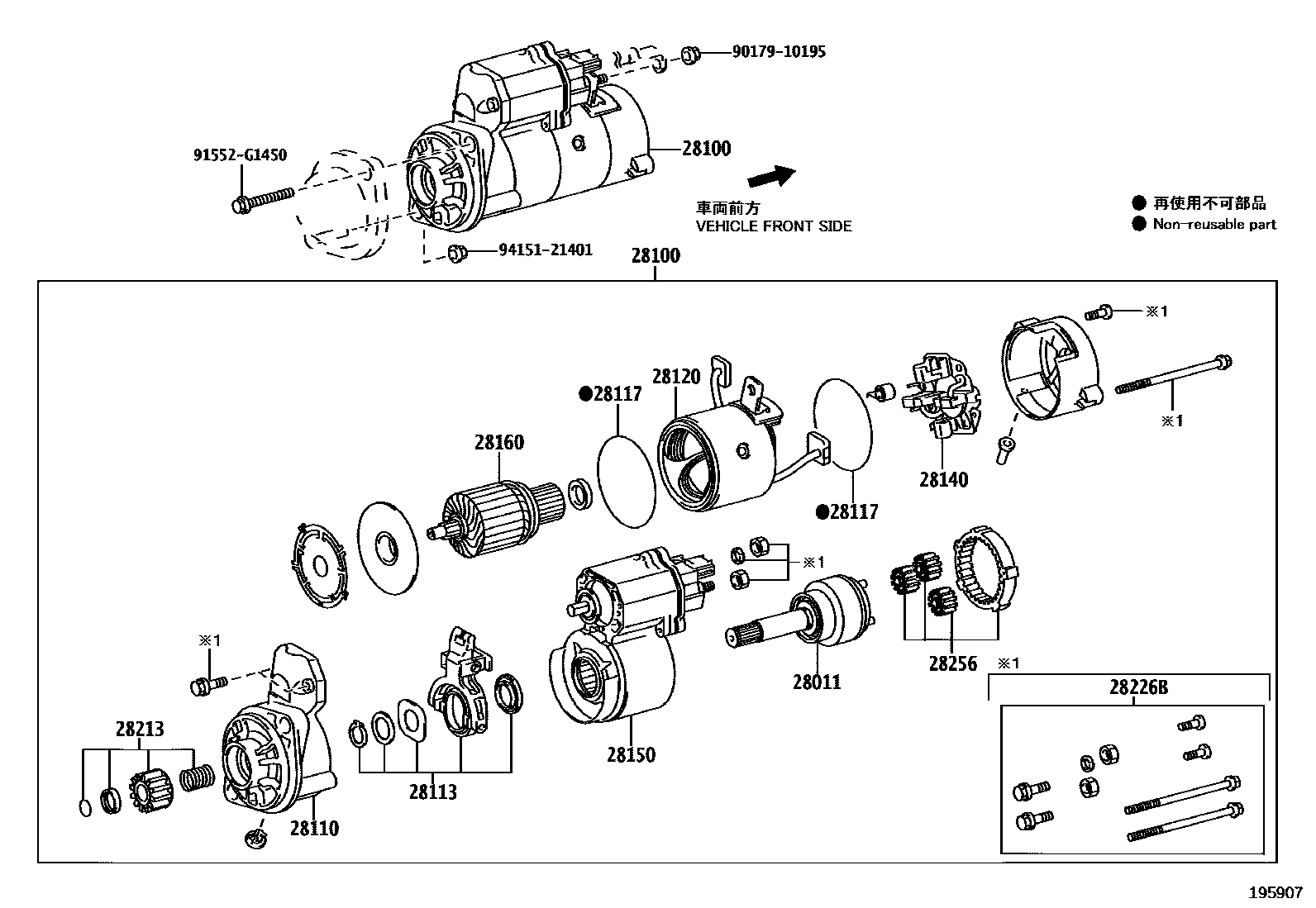

Toyota COASTER — STARTER
28011CLUTCH SUB-ASSY, STARTER
main28011-51060iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312
28100STARTER ASSY
main28100-78150iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312
28110HOUSING ASSY, STARTER DRIVE
main28110-78150iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28113LEVER, STARTER PINION DRIVE
main28113-51060iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312
28117RUBBER(FOR STARTER YOKE)
main28117-51060×2iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28120YOKE ASSY, STARTER
main28120-51060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28140HOLDER ASSY, STARTER BRUSH
main28140-78150iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28150SWITCH ASSY, MAGNET STARTER
main28150-51060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28160ARMATURE ASSY, STARTER
main28160-51060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28213PINION, STARTER CLUTCH
main28213-78150iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28226BSTARTER KIT, REPAIR SERVICE
main28226-51060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
28256GEAR, STARTER INTERNAL
main28256-51060iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
9017910195
main90179-10195
91552G1450
main91552-G1450
9415121401
main94151-21401
15 parts on this diagram · 2 diagrams in section
