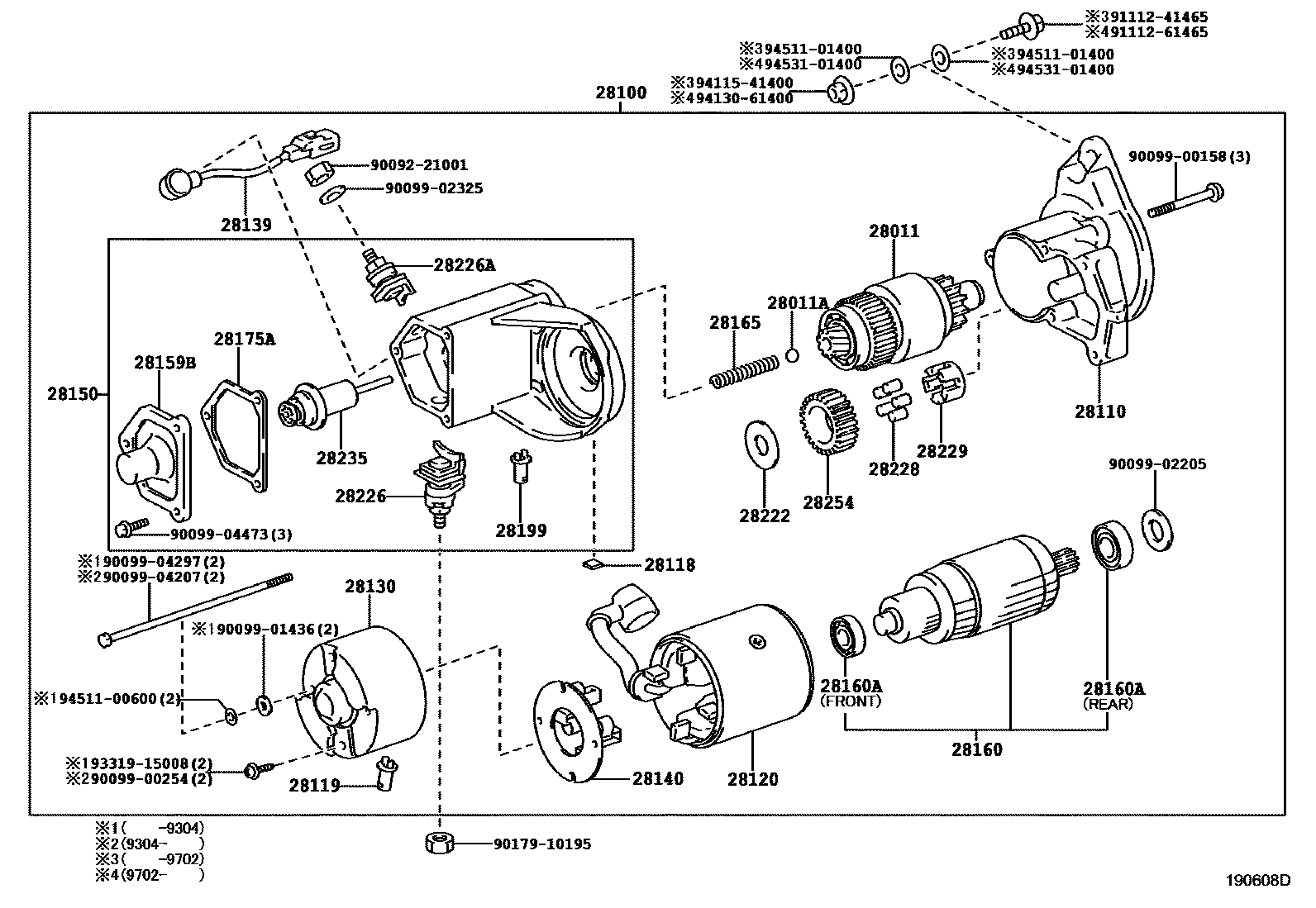

Toyota COASTER — STARTER

0001 124V 4.5KW 0002 124V 4.5KW 0003 124V 4.5KW 0004 112V 2.5KW 0005 124V 5.0KW 0006 112V 2.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main28011-54010i15BF,3B..BB4#,5#199301-199907

main28011-78110iN04C..XZB40,50,51..MTM200408-200508

sub28250-78111

main28011-78111iN04C..XZB51..6FC..IV5200506-200908

sub28011-78112

28011ABALL, STARTER CLUTCH

main90099-12009i1BZFPE..BZB40,50200408-201007

28100STARTER ASSY

main28100-17030i1HD#,1HZ..HDB5#,HZB4#,5#199301-199705

main28100-17050i1H#..HDB5#,HZB4#,5#199907-200408

sub28100-17051

main28100-56290i3B..BB4#199301-199808

main28100-56291i3B..BB4#199808-199907

sub28100-56292

main28100-56311i1BZFPE..BZB40,50200203-200408

main28100-56312i1BZFPE..BZB40,50201501

main28100-56320i15BF..BB5#199512-199808

main28100-56321i15BF..BB58199808-199907

sub28100-56332

main28100-78110iN04C..XZB40,50,51..MTM200408-200508

main28100-78111iN04C..XZB4#,5#..4FC200506-200507

main28100-78112iN04C..XZB51..SULNG200508-200512

main28100-78113iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200610-201501

main28100-78114iN04C..XZB4#,5#201604-201609

main28100-78115iN04C..XZB4#,5#201610

28110HOUSING ASSY, STARTER DRIVE

main28110-56130i3B..BB4#199301-199808

main28110-56131i3B..BB4#199808-199907

main28110-56150i15BF..BB5#199512-199808

main28110-56151i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

main28115-17020i1H#..HDB5#,HZB4#,5#199907-200408

28118PLATE(FOR STARTER YOKE)

main28118-77090i1BZFPE..BZB40,50200408-201007

28119COVER, STARTER END FRAME

main28119-46080i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#199301-199705

main28199-46080i15BF,3B,1H#..BB4#,58,HDB5#,HZB4#,5#199705-199907

28120YOKE ASSY, STARTER

main28120-56071i1H#..HDB5#,HZB4#,5#199907-200408

main28120-56221i15BF..BB5#199512-199907

main28120-56231i1BZFPE..BZB40,50200203-200408

main28120-78110iN04C..XZB4#,5#..5F,6F,6FC200408-200909

main28120-78111iN04C..XZB4#,5#201501

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-17030i3B,1H#..BB4#,HDB5#,HZB4#,5#199301-199304

sub90099-04207

main28130-56260i1BZFPE..BZB40,50200408-201007

main28130-56300i1H#..HDB5#,HZB4#,5#199907-200408

main28130-78110iN04C..XZB4#,5#201501

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54250i3B..BB4#199411-199611

main28139-54251i3B,1H#..BB4#,HDB5#,HZB4#,5#199611-199705

main28139-56250i15BF..BB55199512-199611

main28139-56251i15BF..BB5#199611-199711

main28139-56290i3B..BB4#199711-199907

main28139-56310i1BZFPE..BZB40,50200408-201007

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

main28140-78110iN04C..XZB4#,5#..5F,6F,6FC200408-201501

28150SWITCH ASSY, MAGNET STARTER

main28150-17030i1HD#,1HZ..HDB5#,HZB4#,5#199301-199705

main28150-17050i1H#..HDB5#,HZB4#,5#199705-199907

main28150-56290i3B..BB4#199301-199907

main28150-56310i1BZFPE..BZB40,50..STD200408-201108

main28150-56320i15BFTE..BB58199907-200408

28159BCOVER, MAGNET SWITCH

main28159-17030i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#199301-199907

main28159-56310i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

28160ARMATURE ASSY, STARTER

main28160-47040i1BZFPE..BZB40,50200203-200303

main28160-54140i1BZFPE..BZB40,50200303-200408

main28160-77090i15BFTE,1H#..BB58,HDB5#,HZB4#,5#199907-200408

main28160-78110iN04C..XZB4#,5#..4FC200506-201501

main28160-78111iN04C..XZB4#,5#201604

sub28160-78112

28160ABEARING, STARTER ARMATURE

main90099-10107i1BZFPE..BZB40,50200408-201007

main90099-10119i15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-77090i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

28175AGASKET, MAGNET SWITCH COVER

main28175-56310i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

28199COVER, STARTER

main28199-54190i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#199301-199907

main28199-78110iN04C..XZB4#,5#200610-201106

mainS281991100iN04C..XZB4#,5#201106-201501

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i1HZ..HZB40..DX,STD;1HZ..HZB40,50..IV5;1HZ..HZB40..SRF..LX;1HZ..HZB50..WOC..4FC;1HZ..HZB40,41,50..HRF..(10S,19S,49S);15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB46199907-200408

24V

main28226-54320i15BF,3B..BB4#,5#199508-199907

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i15BF,1HD#,1HZ..BB5#,HDB5#,HZB4#,5#199301-199907

main28226-56300i3B..BB4#199301-199907

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-56080×5i15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

28229RETAINER, STARTER IDLE GEAR

main28229-56080i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

28235PLUNGER, MAGNET SWITCH

main28235-17030i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

28254PINION, STARTER IDLE GEAR

main28254-77090i15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#199301-199907

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009901436

main90099-01436

9009902205

main90099-02205

9009902325

main90099-02325

9009904207

main90099-04207

9009904297

main90099-04297

9009904473

main90099-04473

9017910195

main90179-10195

9111241465

main91112-41465

9111261465

main91112-61465

9331915008

main93319-15008

9411541400

main94115-41400

9413061400

main94130-61400

9451100600

main94511-00600

9451101400

main94511-01400

9453101400

main94531-01400

42 parts on this diagram · 6 diagrams in section
