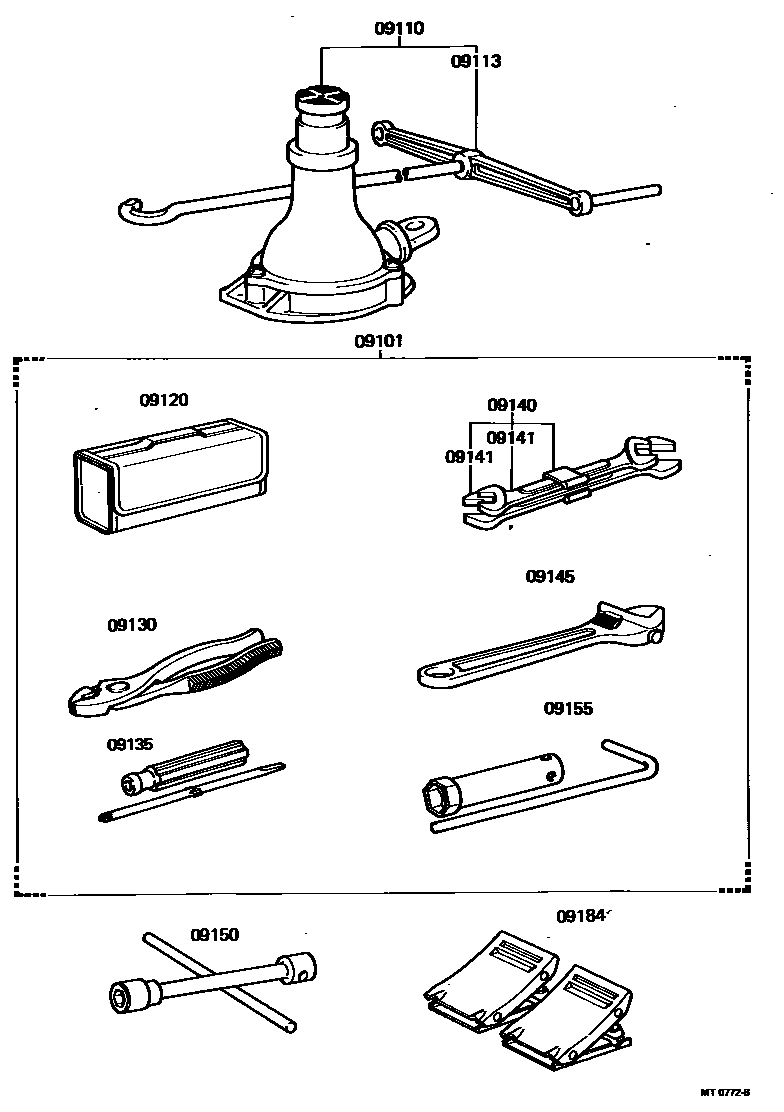

Toyota COASTER — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-36060i197708-197911

main09102-36070i197708-197911

main09102-36180i197911-198204

main09102-36190i197911-198204

09110JACK ASSY

main09110-36030i197708-197903

main09110-36031i197903-198204

09113HANDLE, JACK

main09113-25040i197903-198204

main09113-36020i197708-197903

09120BAG, TOOL

main09120-36020i197708-198204

09130PLIERS

main09130-00010i197911-198204

main09130-00020i197708-197911

09135DRIVER, SCREW

main09135-00010i197708-198204

09140SPANNER SET

main09140-22010i197708-197911

main09140-27010i197911-198204

09141SPANNER

main09141-00030i197708-197911

10X12

main09141-00032i197911-198204

10X12

main09141-00050i197708-197911

14X17

main09141-12020i197911-198204

14X17

09145WRENCH, MONKEY

main09145-00020i197911-198204

main09145-00030i197708-197911

09150WRENCH, HUB NUT BOX

main09150-25020i197911-198204

main09150-36011i197708-197911

09155WRENCH, SPARK PLUG

main09155-28010i197911-198204

main09155-51010i197708-197911

09184STOPPER, WHEEL

main76410-90502×2i197708-197911

12 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota COASTER

This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota COASTER. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS.
