Toyota COASTER — SPOILER & SIDE MUDGUARD

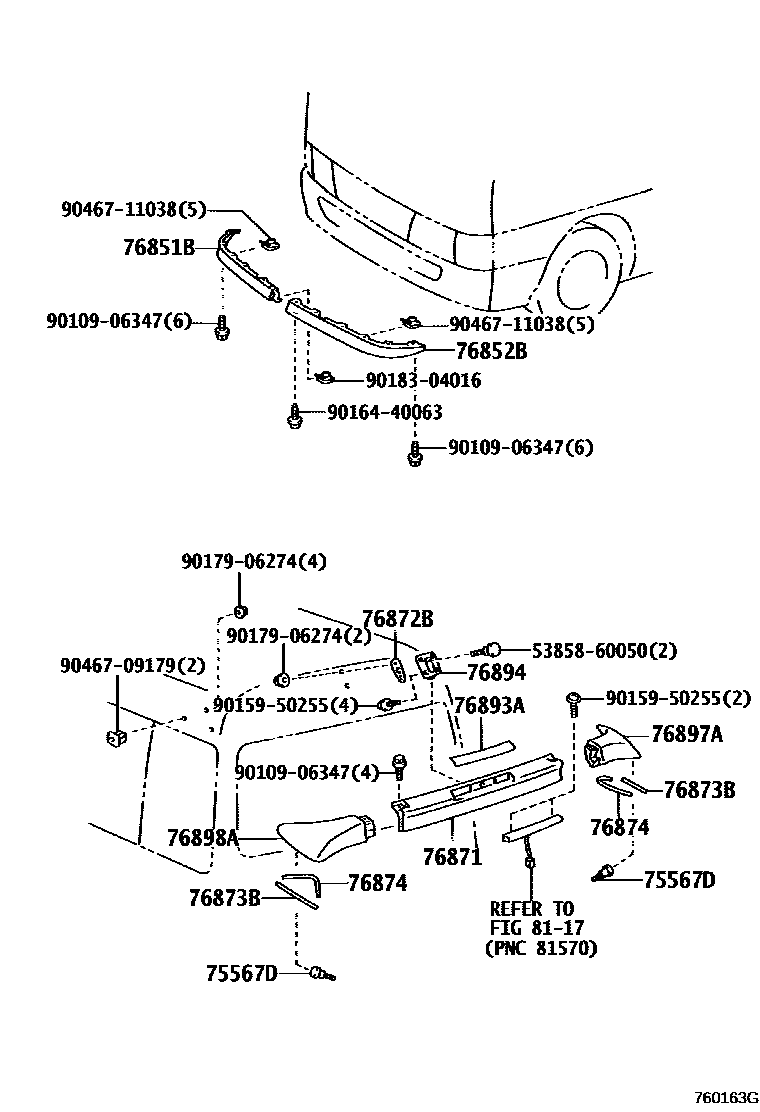

Parts diagram

75567DPROTECTOR, ROOF SIDE GARNISH, REAR RH

main75567-21030×4i199907-200108

76851BSPOILER, FRONT, RH

main76851-36010i199907-200408

76852BSPOILER, FRONT, LH

main76852-36010i199907-200408

76871SPOILER, REAR

main76871-36900i199907-200108

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-36010i199907-200108

76873BPROTECTOR, REAR SPOILER, NO.2

main76874-36010×2i199907-200108

76874PROTECTOR, REAR SPOILER, NO.3

main76874-36010×2i199907-200108

76893ACOVER, REAR SPOILER, RH

main76893-36900i199907-200108

76894COVER, REAR SPOILER, LH

main76894-36900i199907-200108

76897ASPOILER,REAR SIDE RH

main76897-36900i199907-200108

76898ASPOILER,REAR SIDE LH

main76898-36900i199907-200108

8117CENTER STOP LAMP

→ Go to FIG 81-17

5385860050RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53858-60050

9010906347

main90109-06347

9015950255

main90159-50255

9016440063

main90164-40063

9017906274

main90179-06274

9018304016

main90183-04016

9046709179

main90467-09179

9046711038

main90467-11038

20 parts on this diagram · 1 diagram in section

SPOILER & SIDE MUDGUARD for Toyota COASTER

This section contains 20 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota COASTER. Key components include: PROTECTOR, ROOF SIDE GARNISH, REAR RH, SPOILER, FRONT, RH, SPOILER, FRONT, LH, SPOILER, REAR, PROTECTOR, REAR SPOILER, CENTER.
