Toyota COASTER — SPEAKER

0001 11,2,4,5 ����� 0002 11,2,4,5 ����� 0003 16,8,11 ����� 0004 1����������� 0005 1�-� �����

86150SPEAKER ASSY, W/BOX, NO.1

main86150-36030-A0iBB46..WOC199301-199505

IVORY,TRIM4#

main86150-36040-A0iBB40..DX;BB40,HZB50..(29S,39S,49S)..WOC199301-199505

IVORY,TRIM4#

sub86150-36040

main86150-36040-A1iBB58,HZB40,50..WOC199907-200108

sub86150-36040

main86150-36040-A1iBB40..DX;BB40,HZB50..(29S,39S,49S)..WOC199505-199907

IVORY,TRIM4#

sub86150-36040

main86150-36040-A1iBB58,HZB40,50..WOC199907-200108

sub86150-36040

main86150-36040-B0iBB58,HZB40,50..WOC200108-200408

sub86150-36040

main86150-36040-B0iBB58,HZB40,50..WOC200108-200408

sub86150-36040

main86150-36040-B0iXZB40,50..WOC200408-201501

sub86150-36040

main86150-36080-A0iBB46,HZB56..LX199301-199505

main86150-36080-A1iHZB46,56199907-200108

main86150-36080-A1iHZB46,56199907-200108

main86150-36080-A1iBB46,HZB56199505-199907

main86150-36080-B0iXZB40..20S200408-201003

main86150-36080-B0iXZB40..20S200408-201003

main86150-36080-B0iHZB46,56200108-200408

main86150-36080-B0iHZB46,56200108-200408

main86150-36090-A0iHDB51,HZB4#199301-199505

main86150-36090-A1iBB58,HZB40,50..LX199705-199907

main86150-36090-A1iHZB40..4FC..IV5;BB58,HZB40..DX,STD;HZB50..(GX,STD)..WC;BB40,HDB5#,HZB41..WC..(CBU,IV5)199505-199907

main86150-36090-A1iBB58,HDB50,HZB40,50..(LX,STD)..WC199907-200108

main86150-36090-A1iBB58,HDB50,HZB40,50..(LX,STD)..WC199907-200108

main86150-36090-B0iBZB40,50,XZB40,50,51201501-201612

MD.CHARCOAL,TRIM1#

main86150-36090-B0iBB58,BZB40,50,HDB50,HZB40,50..(LX,STD)..WC200108-200408

main86150-36090-B0iBB58,BZB40,50,HDB50,HZB40,50..(LX,STD)..WC200108-200408

main86150-36090-B0iXZB51200408-201501

main86150-36090-B0iXZB51200408-201501

main86150-36090-B0iXZB51200408-201501

main86160-36020iXZB40..HRF..26S..WC..CBU;XZB50,51..(20S,26S,29S)..WC..CBU200408-201209

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-36050iBB55,HDB5#,HZB41,50..EX,GX,LX,SULNG199301-199603

sub86150-36051

main86150-36051iBB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU199603-201108

main86150-36051iXZB51..SULNG200408-200708

86160BSPEAKER ASSY, REAR

main86160-36020iBB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU199907-200408

main86160-36020iBB58,HDB50,HZB41,50..(EX,GX,LX)..CBU199705-199907

main86160-36020iXZB51..CBU200408-200708

main86160-36030iHDB51..CBU199705-200408

main86160-36030iBB55,HDB5#,HZB41,50..EX,GX,LX,SULNG199301-199705

main86160-36031iXZB51..CBU200408-200708

86269AGRILLE, SPEAKER

main86269-36010-B0iXZB40..HRF..26S..WC..CBU;XZB50,51..(20S,26S,29S)..WC..CBU200408-201209

main86269-90B00iXZB51200408-201501

main86269-90B00iXZB50,51..25S,29S199301-200408

86269BGRILLE, SPEAKER

main86269-36010-A1iHDB51..CBU199907-200108

main86269-36010-A1iHDB51..CBU199907-200108

main86269-36010-A1iBB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU199505-199907

IVORY,TRIM4#

main86269-36010-B0iBB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU200108-200408

main86269-36010-B0iBB58,HDB5#,HZB40,41,50..HRF..(20S,26S,29S)..WC..CBU200108-200408

main86269-36010-B0iXZB51..CBU200408-200708

9011906553

main90119-06553

9155380635

main91553-80635

9321915020

main93219-15020

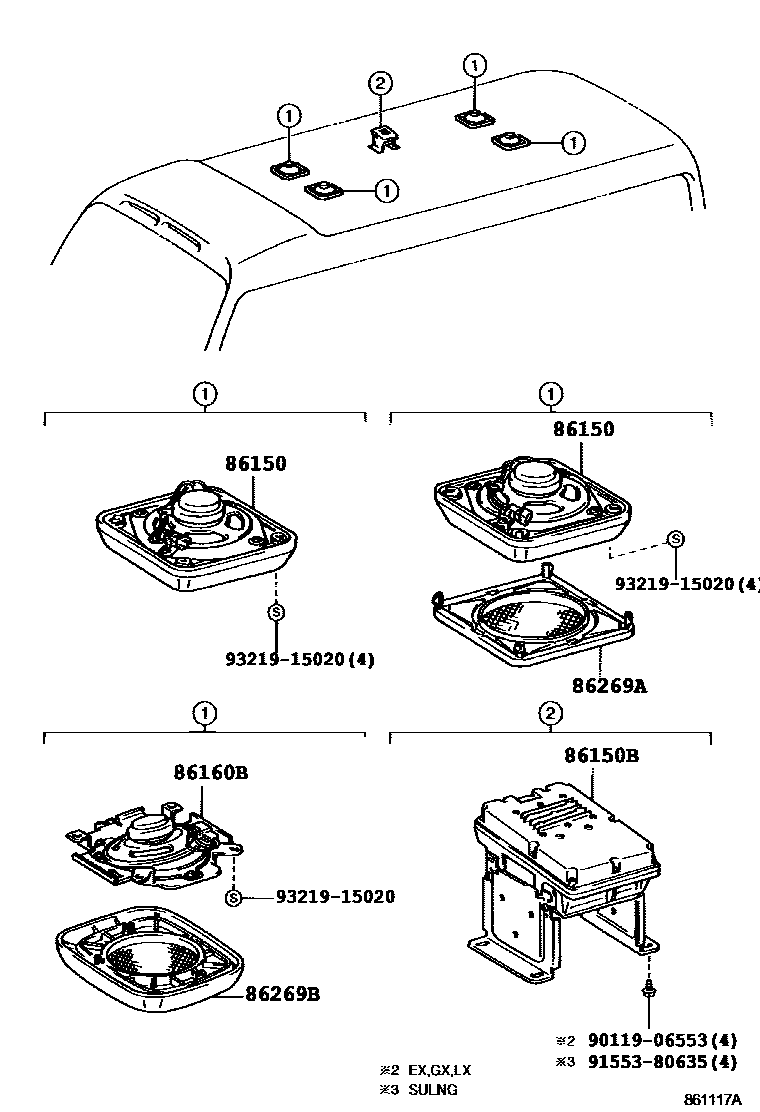

8 parts on this diagram · 5 diagrams in section
