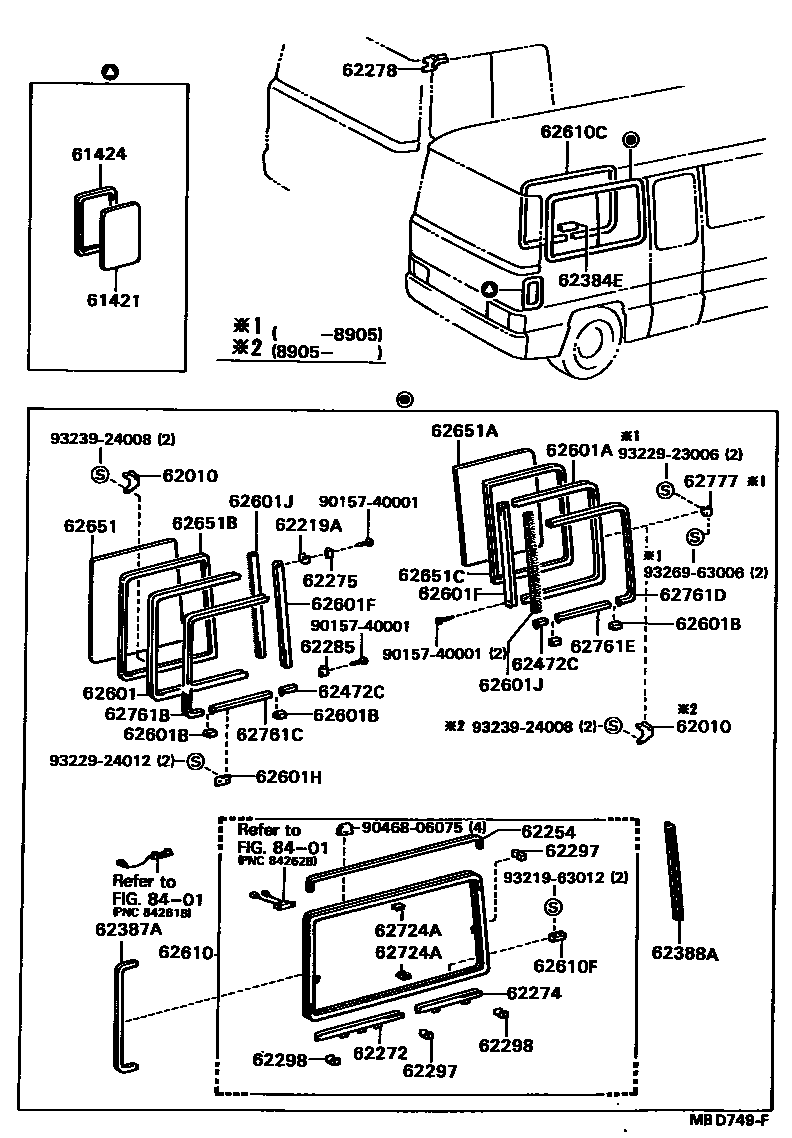

Toyota COASTER — SIDE WINDOW

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

61421GLASS, SIDE LOWER WINDOW

main62171-90B00iBB2#,3#,HB3#,RB2#198205-198704

main62171-90B01iBB2#,3#,HB3#,RB2#198704-199301

*TT,T=3.5

61424WEATHERSTRIP, SIDE LOWER WINDOW GLASS

main62173-90B00iBB2#,3#,HB3#,RB2#198205-198704

main62173-90B01iHDB20,3#,HZB3#199001-199301

62010LOCK ASSY, SIDE WINDOW

main62010-90740×11iHB30..EX198205-198309

main62370-90B00×24iBB20,21,RB20..39C198205-199301

main62370-90B01×12iHDB30,HZB30,36199001-199301

W/FOLDING DOOR

62219AGUIDE, SIDE WINDOW

main62219-90B00iHDB20,31..EXS,SULNG199001-199301

62254WEATHERSTRIP, SIDE WINDOW, UPPER NO.1

main62153-90B00iBB2#,3#,HB3#,HDB30,HZB30,36,RB2#198205-199301

main62153-90B01iRB20..WC198510-199301

W/*DEF

62272WEATHERSTRIP, SIDE WINDOW, FRONT LOWER NO.1

main62154-90B01iBB20,21,30,31,RB20..39C,44C198205-199301

main62164-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-198510

main62164-90B01iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198510-199301

62274WEATHERSTRIP, SIDE WINDOW, REAR LOWER NO.1

main62284-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-198510

main62284-90B01iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198510-199301

62275COVER, SIDE WINDOW, UPPER

main62275-90B00×3iBB21,23,26,3#,HB30,31,36,RB2#..DLX198610-199301

RH,W/*TL GLASS

main62285-90B00iHB30,31,32..20S198205-199001

LH

62278PROTECTOR, SIDE WINDOW

main62278-90B00iRB20..WC198510-199301

W/SIDE WINDOW DEFOGGER

62285COVER, SIDE WINDOW, LOWER

main62275-90B00×3iHDB30,HZB30,36199001-199301

LH,W/*TL GLASS

main62285-90B00×3iBB24,HB30,31,32..EX198205-199001

RH

62297PIECE, SIDE WINDOW, NO.1

main62297-90B00×12iHDB30,HZB30,36199001-199301

20 X 20

main62297-90B01×32iBB20,21,RB20..39C198205-199301

22 X 20

main62298-90B01×3iBB24,HB31,32,HDB31,HZB31..EX198510-199301

17.5 X 15

62298PIECE, SIDE WINDOW, NO.2

main62298-90B00×12iBB20,21,30,31,RB20..39C,44C198205-199301

28 X 15

62384ECAP, SIDE WINDOW

main62384-90B00-08×8iBB2#,3#,HB3#,RB2#198810-199301

IVORY,IVORY

62387ASEAL, SIDE WINDOW, NO.3

main62385-90B02iBB2#,HB3#,RB2#..WC198602-198610

main62387-90B00iHB30..20S198205-198510

main62387-90B01iBB2#,HB3#,RB2#..WC198510-198602

62388ASEAL, SIDE WINDOW, NO.4

main62388-90B00iHB30..20S198205-198510

main62388-90B01iBB2#,HB3#,RB2#..WC198510-198610

62472CRUN, SIDE WINDOW, LOWER

main62472-90B00×2iHB30,31..20S198205-199001

62601SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.1

main62143-90B00iHDB30,HZB30,36199001-199301

main62143-90B01iBB24199001-199301

W/O *DEF

main62143-90B05iBB21,23,HB30,31,RB20..DLX..WC198510-198905

W/*DEF,*TL GLASS

main62143-90B06iHB31,32..20S198510-198905

W/*DEF

main62143-90B07iRB20..WC198510-199301

W/*DEF

main62143-90B09iBB24199001-199301

W/*DEF

62601ASASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.1

main62144-90B00iHDB30,HZB30,36199001-199301

main62144-90B01iBB21,23,26,3#,HB30,31,36,RB2#..DLX198610-198905

W/*TL GLASS

main62144-90B02iHB30,31,32..20S198205-198905

main62144-90B03iBB24199001-199301

62601BGUIDE, SIDE WINDOW INNER SASH, NO.1

main62744-90740×4iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-199301

62601FSASH, SIDE WINDOW INNER CENTER, NO.1

main62232-90B00iBB20,21,30,31,RB20..39C,44C198205-199301

UPR

main62242-90B00iBB20,21,30,31,RB20..39C,44C198205-199301

LWR

main62291-90B00iBB20,21,23,26,3#,HB30,31,36,RB2#..(DLX,STD)..(10S,26S,29S)198205-199301

FR

main62291-90B01iHDB30,HZB30,36199001-199301

FR,BLACK

main62292-90B00iHDB30,HZB30,36199001-199301

RR

main62292-90B01iBB21,HB30,31,RB20..DLX..WC198304-198610

RR,BLACK

62601HSTOPPER, SIDE WINDOW, NO.1

main62747-90740×2iHDB20,3#,HZB3#199001-199301

62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1

main62253-90B00×2iHDB20,3#,HZB3#199001-199301

main62253-90B01×2iBB20,21,30,31,RB20..39C,44C198205-198411

UPR

main62263-90B00×2iBB20,21,30,31,RB20..39C,44C198205-198411

LWR

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62021-90B00iBB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S)198205-198510

main62021-90B02iBB20,21,30,31,RB20..39C,44C198205-199301

main62021-90B03iHB30..EX198205-198510

main62021-90B04iHB30..20S198205-198510

main62021-90B09iBB24,HB32..EX198905-199001

main62021-90B11iBB21,HB30,31,RB20..DLX..WC198510-198610

W/*TL GLASS,W/O *DEF

main62021-90B12iHB31,32..20S198510-198905

sub62021-90B19

main62021-90B14iBB24,HB32..EX198905-199001

W/*DEF

main62021-90B15iBB21,23,HB30,31,RB20..DLX..WC198510-198905

W/*DEF,*TL GLASS

main62021-90B16iHB31,32..20S198510-198905

W/*DEF

main62021-90B17iBB24199001-199301

W/O *DEF

main62021-90B18iHB32..20S198905-199001

W/*DEF

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62376-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

sub62376-90B02

main62376-90B01iBB26,36,HB36,HZB36,RB26198408-199301

W/*PSD

sub62376-90B04

62610FSTOPPER, SIDE WINDOW, REAR

main62393-90B00×2iHDB30,HZB30,36199001-199301

W/O *DEF

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62111-90B02iBB20,21,31,RB20..(39C,44C)..WOC198205-199301

main62111-90B03iBB30,31..WC198205-199301

main62112-90B00iBB20,21,31,RB20..(39C,44C)..WOC198205-199301

main62112-90B01iBB30,31..WC198205-199301

main62121-90B00iBB26,36,RB26..WOC198408-199301

main62121-90B01iBB26,RB26..WC198408-198610

main62121-90B04iRB20..WC198510-199001

main62121-90B05iBB21,31..STD..(26S,29S)198510-199001

main62121-90B06iBB21,23,24,31,HB30,31,32..DLX,EX,EXS198510-199001

main62121-90B10iRB20..WC199001-199301

W/*DEF,*TT,T=4.0

main62121-90B11iBB21,31..STD..(26S,29S)199001-199301

W/*DEF,*TEM,T=4.0

main62121-90B12iHDB30,HZB30199001-199301

W/*DEF,*TT,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62211-90B00iBB20,21,30,31,RB20..STD..(26S,29S)198205-199301

main62211-90B01iHDB20,3#,HZB3#199001-199301

main62211-90B02iBB24,HB30,31,32..EX,EXS198205-198905

main62211-90B03iBB20,21,31,RB20..(39C,44C)..WOC198205-199301

main62211-90B04iBB30,31..WC198205-199301

main62212-90B00iBB20,21,31,RB20..(39C,44C)..WOC198205-199301

main62212-90B01iBB30,31..WC198205-199301

62651BWEATHERSTRIP, SIDE WINDOW, FRONT NO.1

main62151-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-199301

62651CWEATHERSTRIP, SIDE WINDOW, REAR NO.1

main62251-90B00iBB20,21,23,26,3#,HB30,31,36,RB2#..(DLX,STD)..(10S,26S,29S)198205-199301

main62251-90B01iBB21,23,26,3#,HB30,31,36,RB2#..DLX198610-198905

W/*TL GLASS

62724AWEATHERSTRIP, WATER PROOF

main62724-90740×12iHDB20,31..EXS,SULNG199001-199301

main62725-90740×6iBB2#,3#,HB3#,RB2#..10S,26S,29S198205-198502

LWR

62761BRUN, SIDE WINDOW, FRONT UPPER, NO.1(FOR SLIDE TYPE)

main62431-36010iBB21,31,RB20..39C,44C199202-199301

NO.1

main62433-36010iBB21,31,RB20..39C,44C199202-199301

NO.2

main62433-90B00iBB20,21,30,31,RB20..39C,44C198205-199202

main62441-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-199301

62761CRUN, SIDE WINDOW, FRONT LOWER, NO.1(FOR SLIDE TYPE)

main62432-36010iBB21,31,RB20..39C,44C199202-199301

NO.1

main62432-90B00iBB2#,3#,HB3#,RB2#..10S,26S,29S198205-199301

main62432-90B01iBB20,21,30,31,RB20..39C,44C198205-199202

main62442-36010iBB21,31,RB20..39C,44C199202-199301

NO.2

62761DRUN, SIDE WINDOW, REAR UPPER, NO.1(FOR SLIDE TYPE)

main62437-36010iBB21,31,RB20..39C,44C199202-199301

NO.2

main62437-90B00iBB20,21,30,31,RB20..39C,44C198205-199202

main62484-90B01iBB20,21,26,3#,HB30,31,36,RB2#..10S,20S,26S,29S198205-199301

main62485-36010iBB21,31,RB20..39C,44C199202-199301

NO.1

62761ERUN, SIDE WINDOW, REAR LOWER NO.1(FOR SLIDE TYPE)

main62432-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198411-199301

main62473-90B00iBB2#,3#,HB3#,RB2#..10S,20S,26S,29S198205-198411

main62486-36010iBB21,31,RB20..39C,44C199202-199301

NO.1

main62486-90B00iBB20,21,30,31,RB20..39C,44C198205-199202

main62489-36010iBB21,31,RB20..39C,44C199202-199301

NO.2

62777STOPPER, SIDE WINDOW

main62394-90B00iBB21,31,HB30,RB20..(26S,29S)..WOC198310-198401

W/GLIDE DOOR

8401

9015740001

main90157-40001

9046806075

main90468-06075

9321963012

main93219-63012

9322923006

main93229-23006

9322924012

main93229-24012

9323924008

main93239-24008

9326963006

main93269-63006

43 parts on this diagram · 15 diagrams in section
