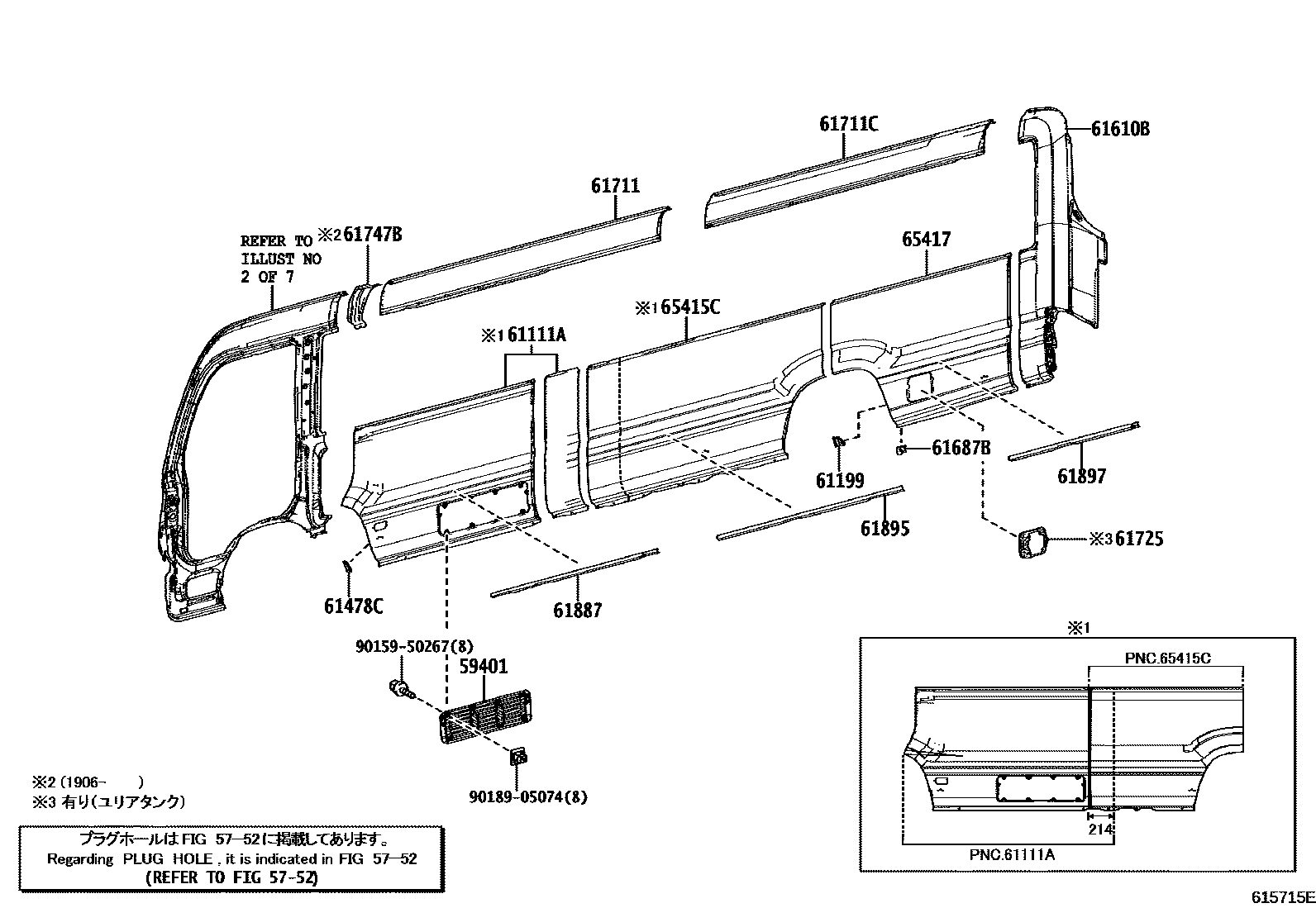

Toyota COASTER — SIDE MEMBER

0001 1������� RH 0002 1������� RH 0003 1������� LH 0004 1������� LH 0005 1��������������� & �������� 0006 1��������������(�������) 0007 1��������������(���������) 0008 1���� & ���������� RH 0009 1���� & ���������� RH 0010 1���� & ���������� RH 0011 1���� & ���������� LH 0012 1���� & ���������� LH 0013 1���� & ���������� LH 0014 1�������(���) 0015 1�������(���) 0016 1�������(���) 0017 1�������(���) 0018 1������(���������������) 0019 1������(���������)

5752

59401COVER SUB-ASSY, COOLER CONDENSER

main61705-36900iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

61111APANEL, FRONT SIDE, OUTER RH

main61007-36030iXZB70201701-201808

sub61007-36031

main61007-36031iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201808-202412

61199BRACKET, SIDE PANEL TO REAR MUDGUARD

main61159-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

61478CBRACKET, MUDGUARD, FRONT RH

main61478-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

61610BPANEL SUB-ASSY, REAR BODY CORNER, RH

main61107-36100iXZB70..29S;XZB60..25S..5F201701-202412

main61107-36120iXZB60..09S;XZB60..5F..S;XZB70..EX,PREM,S201701-202412

main61107-36130iXZB80..HDCR201908-202412

61687BBRACKET, MUDGUARD, REAR RH

main61687-36020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

61711PANEL, ROOF SIDE, OUTER RH

main61113-36020iXZB60,70201701-201809

sub61113-36021

main61113-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201809-202412

61711CPANEL, ROOF SIDE, OUTER RH, NO.2

main61225-36020iXZB70..(09S,24S)..6FC..DCR201701-202412

main61225-36030iXZB60..5F;XZB60..09S;XZB80..HDCR201701-202412

61725BOX, FUEL INLET

main61726-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202412

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201906-202412

61887RAIL, SIDE PANEL DUST PROOF, NO.1 RH

main61887-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

61895RAIL, SIDE PANEL DUST PROOF, NO.2 RH

main61895-36050iXZB70..(09S,24S)..6FC..DCR201701-202412

main61895-36060iGDB60201701-202412

main61895-36090iXZB80..HDCR201908-202412

61897RAIL, SIDE PANEL DUST PROOF, NO.3 RH

main61897-36030iXZB60..(25S,39S)..6FC;XZB70..(09S,24S)..6FC..DCR201701-202412

main61897-36040iGDB80201908-202412

65415CPANEL, REAR BODY, FRONT RH

main65415-36190iXZB70201701-201807

sub65415-36191

main65415-36191iXZB70..5F;XZB70..24S..HDCR;XZB70..(21S,29S,49S)..6FC201808-202412

main65415-36200iXZB60201701-201908

sub65415-36201

main65415-36201iXZB60..5F;XZB60..09S201908-202412

main65415-36280iXZB80..HDCR201908-202412

65417PANEL, REAR BODY, REAR RH

main65417-36080iXZB60,70201701-201908

main65417-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202412

9015950267

main90159-50267

9018905074

main90189-05074

18 parts on this diagram · 19 diagrams in section
