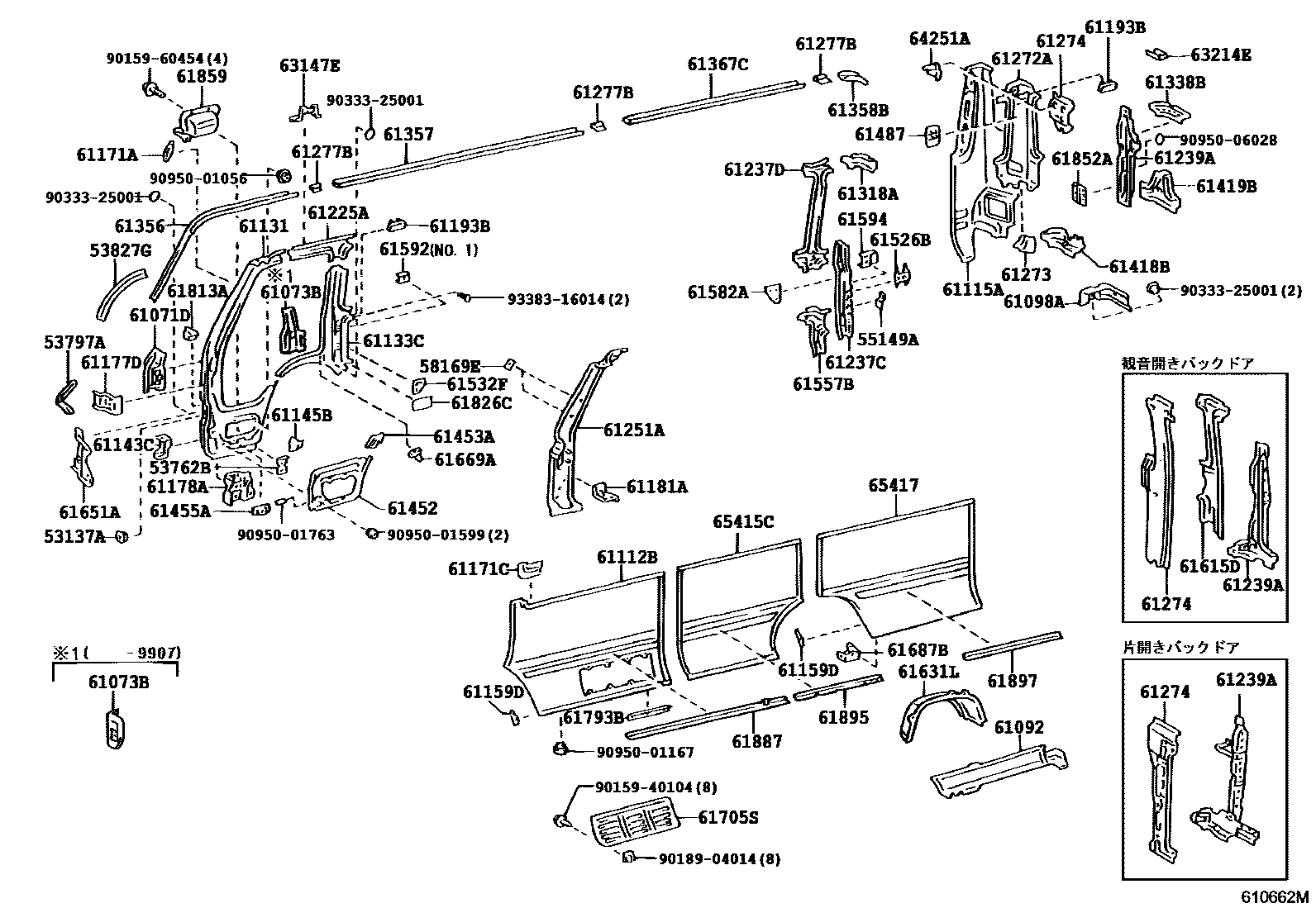

Toyota COASTER — SIDE MEMBER
53137ARETAINER, HEADLAMP DOOR
53762BREINFORCEMENT, RADIATOR RESERVE TANK MOUNT
53797APROTECTOR, SIDE TURN SIGNAL LAMP
53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH
55149ABRACKET, DASH WIRING HARNESS
58169ERETAINER, REAR HEATER MOUNTING
61071DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH
61073BREINFORCE SUB-ASSY, NO.2 PILLAR, CENTER
61092RAIL SUB-ASSY, NO.3 LOWER INNER, RH
61098RAIL SUB-ASSY, NO.5 LOWER OUTER, LH
61098ASTIFFENER SUB-ASSY, PILLAR NO.10, INNER RH
61112BPANEL, NO.2 SIDE, RH
61115APANEL, NO.4 SIDE, RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61133CPILLAR, FRONT BODY, LOWER OUTER RH
61143CSUPPORT, FRONT BUMPER SIDE, RH
main61143-36010iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61159DRETAINER, SIDE PANEL, NO.2 RH
61171ABRACKET, ANTENNA POLE MOUNTING
61171CSTIFFENER, SIDE PANEL, NO.1
61177DREINFORCEMENT, NO.1 PILLAR, CENTER
61178AREINFORCEMENT, NO.1 PILLAR, LOWER RH
61181ABRACKET, INSTRUMENT SIDE, RH
61193BCOVER, FRONT PILLAR SERVICE HOLE
IVORY,TRIM4#
IVORY,TRIM4#
MD.CHARCOAL,TRIM1#
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61237CRAIL, ROOF SIDE, INNER NO.4 RH
61237DPILLAR, NO.9 OUTER, UPPER RH
61239APILLAR, NO.10 RH
main61239-36010iXZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU200408-201501
61251APILLAR, NO.1 INNER, RH
61272APILLAR, NO.9 INNER, RH
61273PILLAR, NO.9 INNER, LOWER RH
61274PILLAR, NO.10 INNER, RH
main61274-36010iHZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)199301-199907
61277BJOINT, ROOF DRIP CHANNEL
61318ARAIL, NO.6 UPPER OUTER, RH
61338BRAIL, REAR SIDE NO.2, RH
61356CHANNEL, ROOF DRIP SIDE, FRONT RH
61357CHANNEL, ROOF DRIP SIDE, CENTER NO.1
61358BCHANNEL, ROOF DRIP SIDE, REAR RH
61367CCHANNEL, ROOF DRIP SIDE, CENTER NO.1
61418BRAIL, NO.8 LOWER OUTER, RH
main61418-36010iHZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)199301-199907
61419BRAIL, NO.9 LOWER OUTER
61452PANEL, ROCKER INNER, FRONT RH
61453APANEL, ROCKER INNER, REAR RH
61455ARETAINER, FRONT STEP, RH
main61159-60010×2iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU; XZB46,56..6FC200408-201501
61487REINFORCEMENT, NO.10 PILLAR, UPPER RH
61526BBRACKET, SEAT ANCHOR, NO.2 RH
61532FGUSSET, SEAT ANCHOR, NO.1
61557BGUSSET, PILLAR TO RAIL, NO.2
61582ABRACKET, REAR SEAT, NO.2
61592BRACKET, STIFFENER, NO.2
61594BRACKET, STIFFENER, NO.4
61615DPILLAR, NO.10 OUTER, UPPER RH
main61615-36010iHZB40..4FC..IV5; HZB40..5F..IV5;HZB50..29S..5F;HZB50..4FC..IV5;HZB50..(DX,GX)..4FC;HZB40..(DX,LX)..CBU;BB58,HDB5#,HZB41,46,56..CBU,IV5; HZB50..LX..4FC..CBU199907-200408
61631LPANEL, REAR WHEEL HOUSE, OUTER RH
61651AGUSSET, PILLAR SHEAR, NO.1 RH
61669ARETAINER, FRONT DOOR OPEN SWITCH SET
61687BBRACKET, MUDGUARD, REAR RH
61705SCOVER SUB-ASSY, COOLER CONDENSER AIR INTAKE
61793BBRACKET, COOLER CONDENSER, NO.1
61813APLATE, DUSTPROOF, NO.1 RH
61826CPAD, NOISE SHUTTER, NO.3
61852APLATE, NO.5 PILLAR BOARD SET
main61852-36011iHZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)199404-199907
61859COVER, FRONT DOOR STEP, RH
61887RAIL, SIDE PANEL DUST PROOF, NO.1 RH
61895RAIL, SIDE PANEL DUST PROOF, NO.2 RH
61897RAIL, SIDE PANEL DUST PROOF, NO.3 RH
63147EBRACKET, ROOF PANEL REINFORCEMENT
63214ECHANNEL, ROOF DRIP, REAR, RH
main63214-36010iHZB40..4FC..IV5; HZB40..5F;HZB50..29S;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU199705-199907
64251ABRACKET, REAR SEATBACK STOP
65415CPANEL, REAR BODY, FRONT RH
65417PANEL, REAR BODY, REAR RH
9015940104
main90159-40104
9015960454
main90159-60454
9018904014
main90189-04014
9033325001
main90333-25001
9095001056
main90950-01056
9095001167
main90950-01167
9095001599
main90950-01599
9095001763
main90950-01763
9095006028
main90950-06028
9338316014
main93383-16014
80 parts on this diagram · 24 diagrams in section
SIDE MEMBER for Toyota COASTER
This section contains 363 genuine Toyota parts for the SIDE MEMBER system of the Toyota COASTER. Key components include: RETAINER, HEADLAMP DOOR, REINFORCEMENT, RADIATOR RESERVE TANK MOUNT, PROTECTOR, SIDE TURN SIGNAL LAMP, BRACKET SUB-ASSY, FRONT SIDE PANEL, RH, BRACKET SUB-ASSY, FRONT SIDE PANEL, LH.
